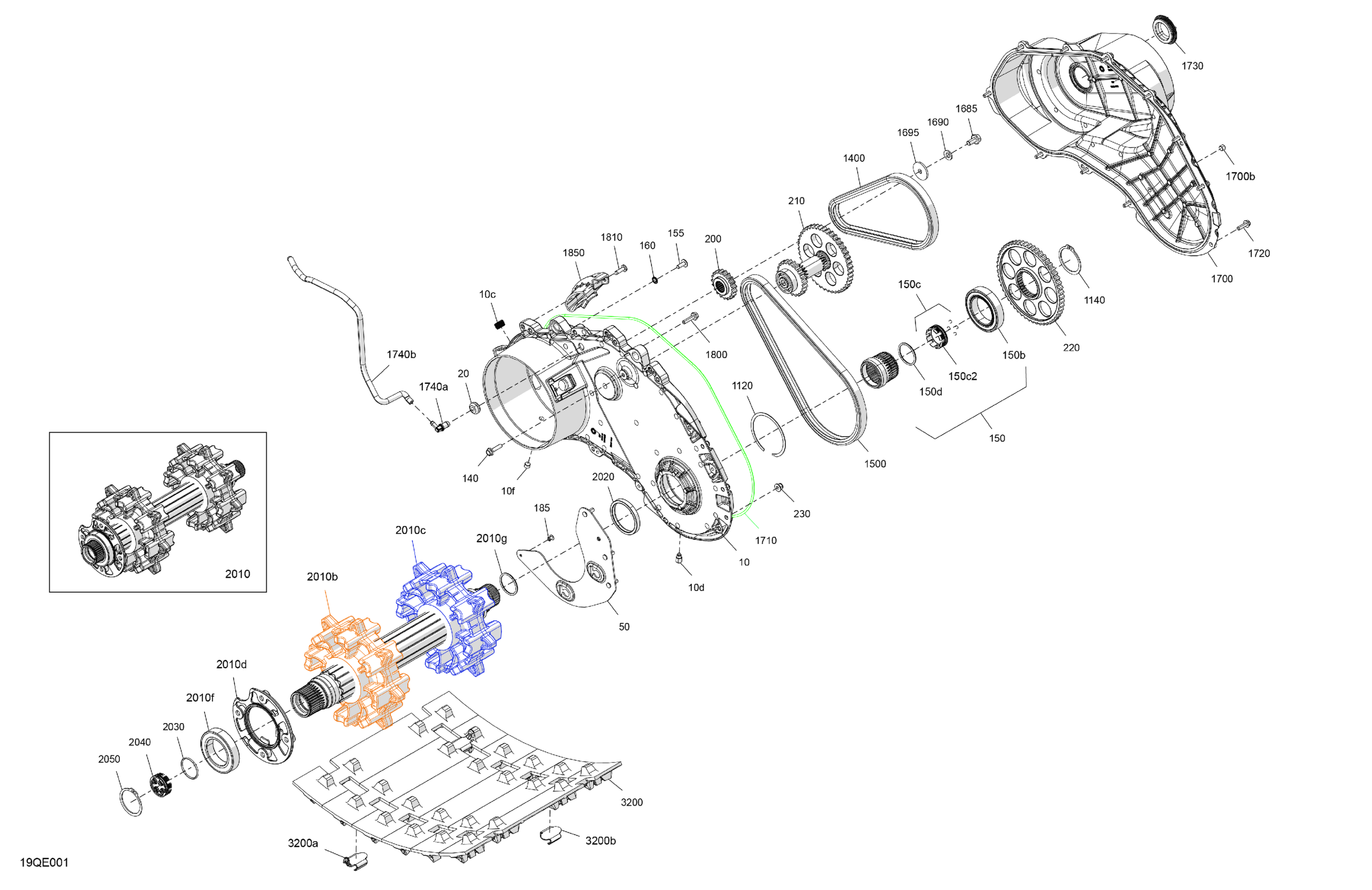

Ski-Doo EXPEDITION - SPORT - ESSB - Bright White - 137X15X1.6C Track - 2025 Drive - System Diagram

#

Description
Price

10

Chain Case Ass'y | Includes 10 to 10f

504154918

$189.99

10c

Cap

250500015

$19.99

10d

Magnetic Plug

504153704

$5.19

10f

Hex. Countersunk Drain Plug

250500013

$7.89

20

Grommet

414036300

$2.79

50

Plate Ass'y

504154615

$76.99

140

Hex. Flange Screw M6 X 25

207562544

$1.69

150

Adapter Ass'y

504154311

$65.49

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

150c2

Cap

504154043

$2.11

150d

O-Ring Seal

293300291

$1.01

155

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

160

Sealing Washer

250200114

$4.44

185

Rivet Avibulb 3/16

293150203

$2.09

200

19 Tooth Sprocket

504154692

$109.99

210

Junction Shaft

504154501

$248.99

220

Sprocket 53 Teeth

504154694

$49.99

230

Flange Elastic Nut M6

233261434

$4.44

1120

Circlip

504152582

$9.99

1140

Circlip

504152572

$6.95

1400

Silent Chain 68 Links

504154498

$66.49

1500

Silent Chain 84 Links

504154607

$116.49

1685

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

1690

Conical Spring Washer M8

250200146

$1.01

1695

Flat Washer M8

250200158

$2.11

1700

Chain Case Cover | Includes 1700 to 1700b

504154937

$189.99

1700b

Hex. Countersunk Drain Plug

250500013

$7.89

1710

O-Ring Seal

293300295

$11.65

1720

Hex. Flange Screw M6X20

250001153

$2.11

1730

Cap

504153329

$20.99

1740a

Male Connector

414580700

$4.12

1740b

Polyurethane Hose 10000Mm Long

219704410

$56.99

1800

Hex. Flange Screw M6 X 25

207562544

$1.69

1810

Torx T-30 Pan HD Taptite M6X20

250001012

$0.55

1850

Grommet

504154936

$17.99

2010

Drive Axle Ass'y | Includes 3000 to 3000g

504154942

$412.99

2010b

LH Sprocket Wheel 8 Teeth

504154910

$76.99

2010b1

Not Available As Spare Parts

XXX

Unavailable

2010b2

Not Available As Spare Parts

XXX

Unavailable

2010c

RH Sprocket Wheel 8 Teeth

504154911

$76.99

2010c1

Not Available As Spare Parts

XXX

Unavailable

2010c2

Not Available As Spare Parts

XXX

Unavailable

2010d

Retaining Ring

504154417

$21.99

2010f

Ball Bearing

293350059

$30.99

2010g

O-Ring Seal

293300291

$1.01

2020

Oil Seal

293200159

$16.25

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

3200

Track 15 X 137 X 1,6 | Includes 3200 to 3200b

504154394

$959.99

3200a

Clip

415130661

$3.29

3200b

Cleat

504152651

$9.69
