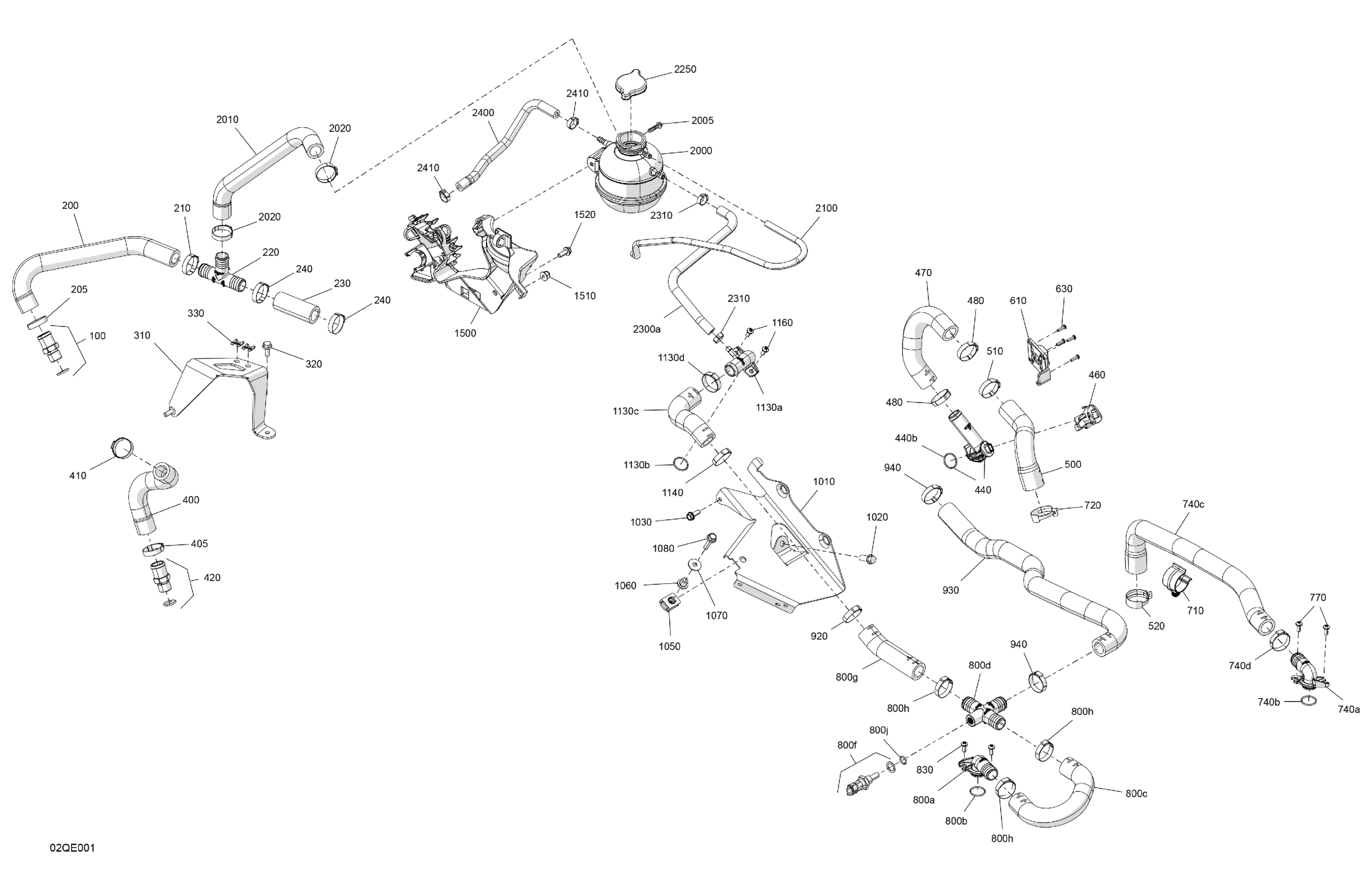

Ski-Doo North America - EXPEDITION - SPORT - ESSB - Bright White - 137X15X1.6C Track - 2025 02- Engine - Cooling Diagram

#

Description
Price

100

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.74

200

Hose

509001352

$18.49

205

Oetiker Gear Clamp

293650165

$5.39

210

Crimp Clamp

293650099

$4.29

220

T Fitting

509001334

$15.89

230

Hose

509001353

$18.49

240

Crimp Clamp

293650099

$4.29

310

Pump Support

509001419

$51.99

320

Hex. Flange Screw M6 X 16

207661644

$0.74

330

External Retaining Ring

509001420

$3.69

400

Hose

509001358

$18.49

405

Oetiker Gear Clamp

293650165

$5.39

410

Crimp Clamp

293650099

$4.29

420

Coolant Manifold Ass'y | Includes 100 to 100b

509001406

$9.74

440

Coolant Manifold Ass'y | Includes 440 to 440b

509001435

$9.74

440b

Seal

293300248

$4.97

460

Lock

509001428

$9.74

470

Hose

509001434

$15.88

480

Oetiker Gear Clamp

293650165

$5.39

500

Hose

509001362

$15.88

510

Oetiker Gear Clamp

293650165

$5.39

520

Norma Spring Clamp

293650166

$4.44

610

Valve Support

509001363

$13.75

630

Torx Screw K35 X 12

250001269

$3.91

710

Retainer

275500526

$4.55

720

Norma Spring Clamp

293650166

$4.44

740a

Coolant Manifold

509001390

$9.74

740b

O-Ring Seal

293300300

$4.97

740c

Hose

509001364

$24.99

740d

Oetiker Gear Clamp

293650165

$5.39

770

Screw Torx M5 X 12

250001241

$6.67

800a

Coolant Manifold

509001390

$9.74

800b

O-Ring Seal

293300300

$4.97

800c

Hose

509001374

$18.49

800d

Fitting

509001400

$13.24

800f

Temperature Sensor

278002895

$39.99

800g

Hose

509001375

$18.49

800h

Oetiker Gear Clamp

293650165

$5.39

800j

Seal

293300281

$4.97

830

Screw Torx M5 X 12

250001241

$6.67

920

Oetiker Gear Clamp

293650165

$5.39

930

Hose

509001376

$18.49

940

Oetiker Gear Clamp

293650165

$5.39

1010

Support

509001463

$65.99

1020

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

1030

Hex. Flange Screw M6 X 16

250001062

$1.57

1050

Panel Nut M6 X 1.0

250100208

$1.46

1060

Bushing

293900151

$7.66

1070

Flat Washer

250200082

$0.42

1080

Hex. Flange Screw M6 X 25

207562544

$1.69

1130a

Coolant Manifold

509001381

$9.74

1130b

Seal

293300248

$4.97

1130c

Hose

509001378

$18.49

1130d

Oetiker Gear Clamp

293650165

$5.39

1140

Oetiker Gear Clamp

293650165

$5.39

1160

Screw Torx M5 X 12

250001241

$6.67

1500

Coolant Tank Support

509001423

$20.49

1510

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1520

Hex. Flange Screw M6 X 16

250001062

$1.57

2000

Cooling Tank

509001033

$91.99

2005

Hex. Flange PT Screw K50 X 20

241152040

$2.11

2010

Hose

509001365

$21.99

2020

Crimp Clamp

293650099

$4.29

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2250

Pressure Cap

509000187

$29.49

2300a

Vent Hose

509001366

$23.99

2310

Crimp Clamp, 15.3-706R

293650047

$3.29

2400

Vent Hose

509001367

$23.99

2410

Crimp Clamp, 15.3-706R

293650047

$3.29
