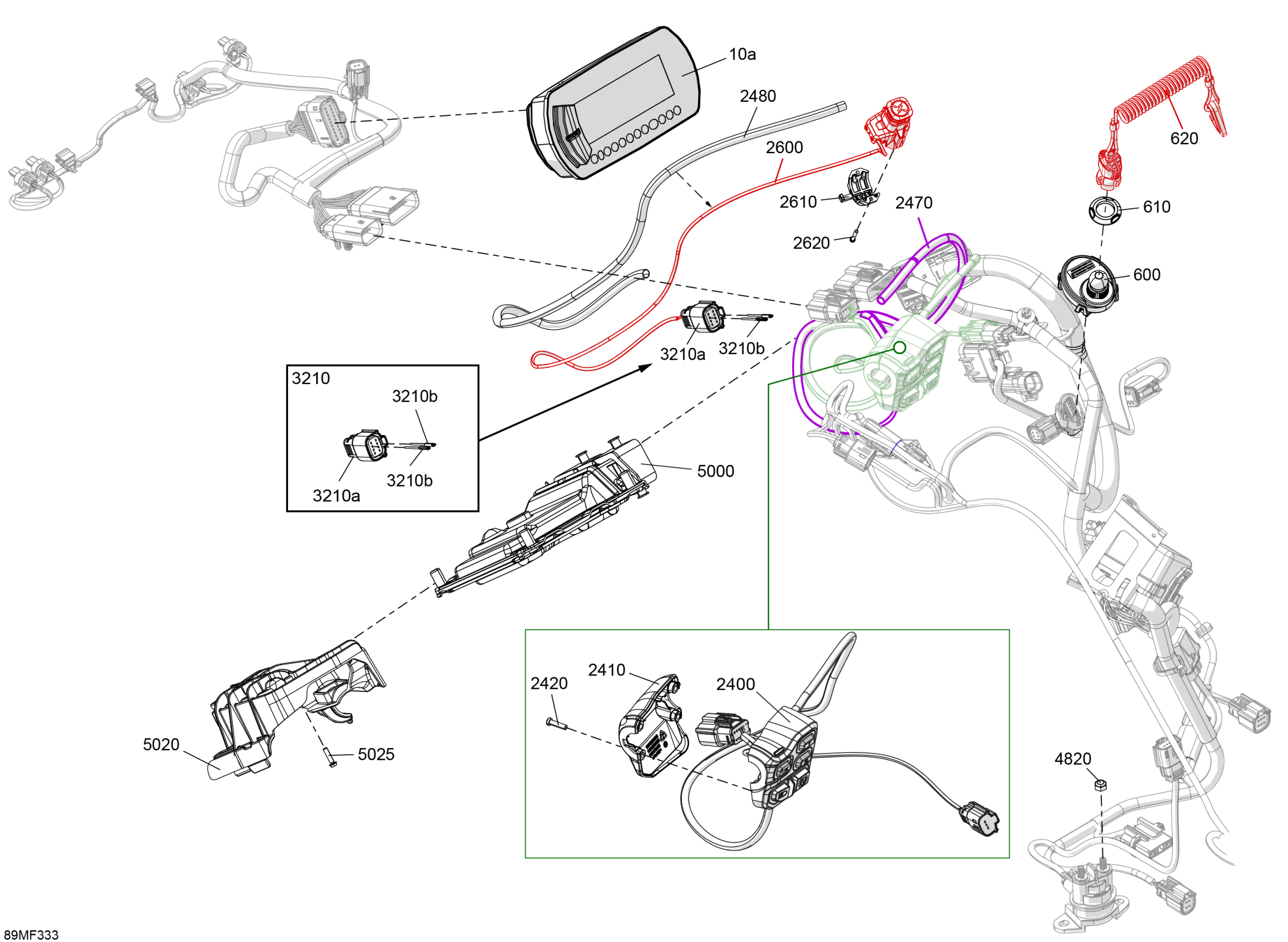

Ski-Doo EXPEDITION - SPORT - 900 ACE - KDTA - Neo Yellow - 16X154X1.5CH Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

600

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

610

Specialized Nut

278004274

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

2400

LH Front Multifunction Switch

515179676

$182.81

2410

Switch Cover

515179437

$11.61

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3210

Connector Plug | Includes 3210 to 3210b

515179276

$13.18

3210a

Connector Molex Female 8 Cavities

515179228

$45.49

3210b

Sealing Cap

278002860

$1.63

4820

Elastic Stop Nut M6

232561414

$1.78

5000

Vehicle Control Unit

420464172

$611.16

5020

Module Support

512061397

$14.10

5025

Hex. Flange Screw K40 X 16

241141660

$1.43
