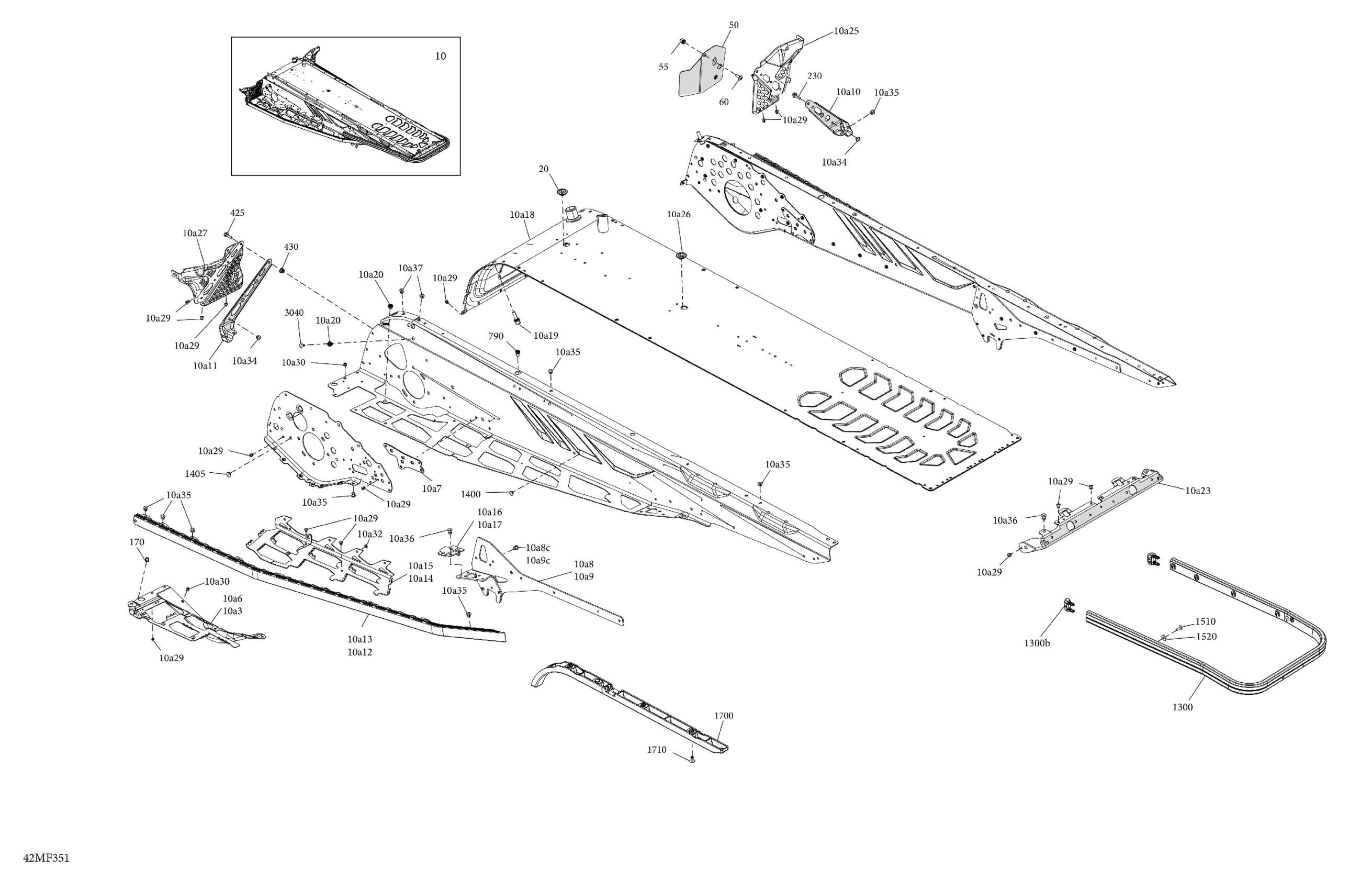

Ski-Doo EXPEDITION - SPORT - 900 ACE - KDTA - Neo Yellow - 16X154X1.5CH Track, 2026 Frame - System - Rear Section Diagram

#

Description
Price

10

Chassis Tunnel Module 154

415130965

$3,139.52

10a3

RH Footrest Reinforcement

518332578

$79.07

10a6

LH Footrest Reinforcement

518332577

$79.07

10a7

Front Suspension Arm Reinforcement

518336141

$15.64

10a8

RH Rear Suspension Support Ass'y | Includes 10a8 to 10a8c

518335995

$91.76

10a8c

Rivet Ornit 4,8 X 14,3

293150314

$0.28

10a9

LH Rear Suspension Support Ass'y | Includes 10a9 to 10a9c

518335992

$91.76

10a9c

Rivet Ornit 4,8 X 14,3

293150314

$0.28

10a10

Stirrup Reinforcement

518334507

$17.88

10a11

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a12

RH Roller

518328451

$175.34

10a13

LH Roller

518328452

$175.34

10a14

RH Footrest Reinforcement

518336064

$32.06

10a15

LH Footrest Reinforcement

518336063

$32.06

10a16

LH Reinforcement Plate

518329088

$2.99

10a17

RH Reinforcement Plate

518329089

$4.09

10a18

Radiator Tunnel 154

518335129

$658.93

10a19

Protruding Stud M8 x 22

250300652

$4.15

10a20

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10a23

Rear Cap

518328990

$20.12

10a25

RH Footrest

518334509

$20.12

10a26

Black, Plug

293730052

$6.18

10a27

LH Foot Protector

518334305

$23.10

10a29

Rivet Avibulb 3/16

293150203

$0.28

10a30

Avibulb Rivet 4.8 X 12.1

293150237

$0.28

10a32

Henrob Rivet

293150245

$1.60

10a34

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a35

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a36

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10a37

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

50

Heat Shield

518331823

$7.19

55

Insert

293450275

$11.36

60

Torx Head Screw M6 X 16

250000717

$2.00

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

790

Insert

293450278

$3.97

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$152.21

1300b

Bumper Cap

520001629

$0.93

1400

Black, Dart 8 mm

293730047

$2.07

1405

Black, Dart 10 mm

293730060

$4.28

1700

Front Protector

518329982

$17.13

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3040

Dart

293730079

$1.87

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27
