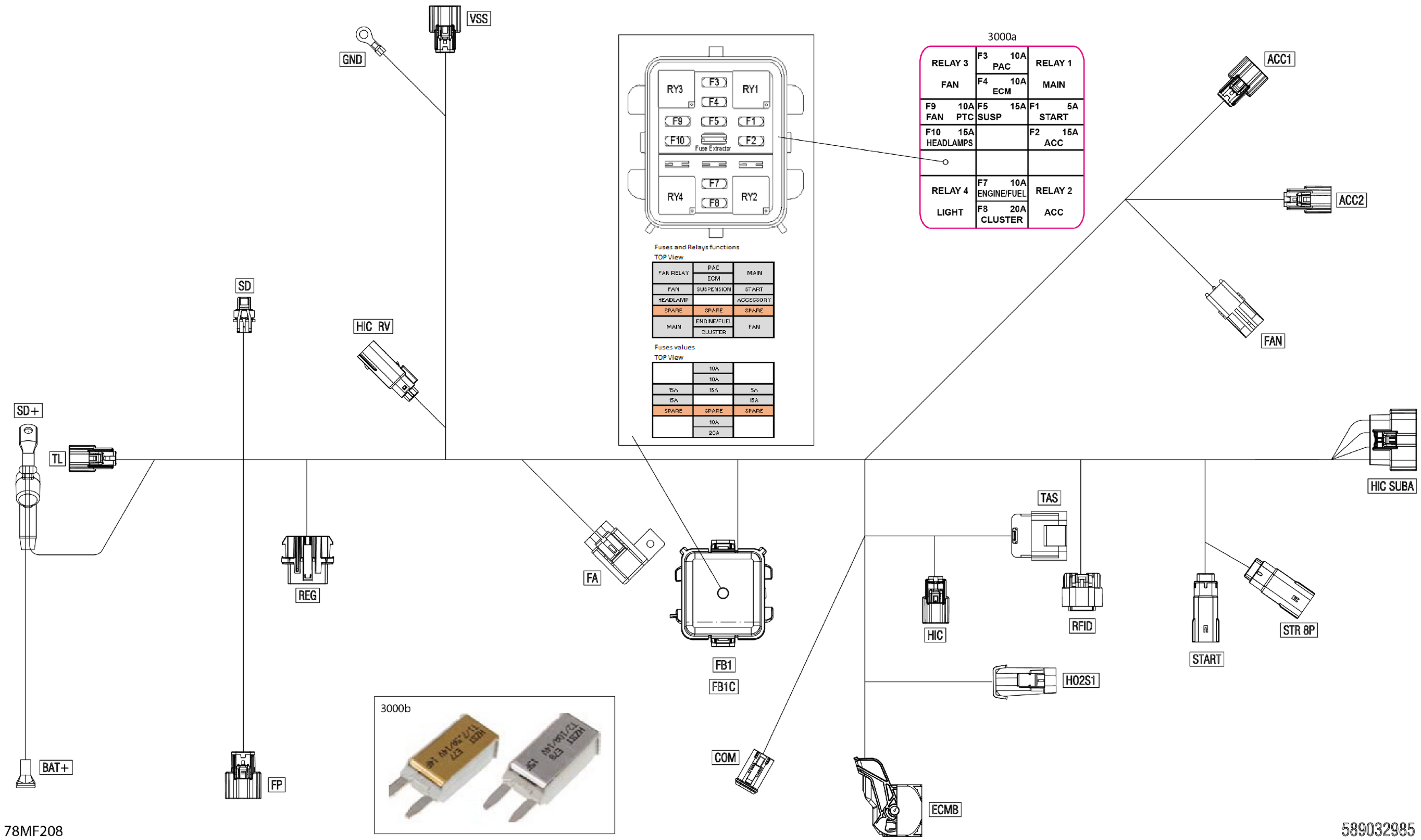

Ski-Doo EXPEDITION - SPORT - 600 ACE - KCTB - Neo Yellow - 16X154X1.5CH Track, 2026 Electric - Main Harness - 515179732 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179732

$309.99

3000a

Fuses Decal

516012890

$0.01

3000b

Fuse 10 A

710010915

$22.49

ACC1

Housing

515178954

$35.99

ACC1

Female Terminal

515178018

$1.19

ACC2

Female Housing 6 Circuits

710002706

$20.49

BAT+

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

COM

Cover

515178601

$18.49

COM

Housing 56 Circuits

515178595

$29.49

ECMB

Plate

515178604

$4.59

ECMB

Plug

515178599

$3.17

ECMB

Plate

515178603

$4.59

ECMB

Terminal

515178598

$3.61

ECMB

Terminal

515178596

$3.72

ECMB

Terminal

515178597

$15.36

ECMB

Little Fuse, 5 Amperes

710000742

$8.79

ECMB

Little Fuse, 15 Ampere

710000745

$8.49

F1

Little Fuse, 15 Ampere

710000745

$8.49

F10

Little Fuse, 10 Amperes

710000744

$8.79

F2

Little Fuse, 10 Amperes

710000744

$8.79

F3

Little Fuse, 10 Amperes

710000744

$8.79

F4

Little Fuse, 20 Amperes

710000746

$8.49

F7

Little Fuse, 15 Ampere

710000745

$8.49

F8

Fuse Holder Cap

278001326

$7.69

F9

Cushion

278000805

$3.28

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FA

Female Housing, 2 Circuits

278000217

$9.59

FA

Wire Seal

278000218

$4.39

FAN

Male Terminal

409004300

$5.61

FAN

Fuse Puller

710000781

$8.09

FAN

Fuse Base Ass'y

278003448

$31.99

FB1

Seal Plug

278002880

$7.86

FB1

Wire Seal

278000218

$4.39

FB1

Wire Seal

278001065

$7.69

FB1

Female Terminal

710000890

$4.55

FB1

Female Terminal

710000918

$7.69

FB1

Female Terminal

278002578

$1.04

FB1

Fuse Box Cover

515179483

$4.33

FB1

Little Fuse, 10 Amperes

710000744

$8.79

FB1C

Little Fuse, 15 Ampere

710000745

$8.49

FB1C

Little Fuse, 20 Amperes

710000746

$8.49

FB1C

Female Housing

515178474

$34.99

FB1C

Female Terminal

515178018

$1.19

FP

Open Barrel Terminal

278001392

$4.79

FP

Female Housing, 4 circuits

278003535

$25.99

GND

Female Terminal

515178018

$1.19

HIC

Female Molex Connector 20 Cavities

515179227

$16.49

HIC

Sealing Cap

278002860

$1.79

HIC SUBA

Female Terminal

515178018

$1.19

HIC SUBA

Female Terminal

515178014

$2.39

HIC SUBA

Molex Male Connector 8 Cavities

515178907

$11.12

HIC SUBA

Male Terminal

515178013

$3.19

HIC RV

Clip

710000992

$4.29

HIC RV

Housing

710002466

$3.19

HO2S1

Lock

515178661

$4.44

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S1

Terminal

710000736

$5.50

HO2S1

Female Housing, 3 Circuits

710000879

$25.99

HO2S1

Seal

710001932

$3.27

REG

Seal

278003685

$16.79

REG

Terminal

710001934

$5.50

REG

Female Delphi Connector 5 Cavities

710007151

$17.04

REG

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RFID

Relay

715900824

$21.99

RFID

Relay

715900824

$21.99

RY1

Relay

715900824

$21.99

RY2

Relay

715900824

$21.99

RY3

Female Housing, 2 Circuits

515177192

$9.12

RY4

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD

Terminal

515177214

$7.86

SD

Housing

515178023

$14.74

SD+

Male Terminal

515178013

$3.19

START

Molex Male Connector 8 Cavities

515178907

$11.12

START

Male Terminal

515178013

$3.19

STR8P

Clip

710000992

$4.29

STR8P

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TAS

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TAS

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

TL

Housing

515178954

$35.99

TL

Female Terminal

515178018

$1.19

VSS

Battery Cable Cap

710003583

$6.24

VSS

Fuse Box Cover

278004217

$3.40
