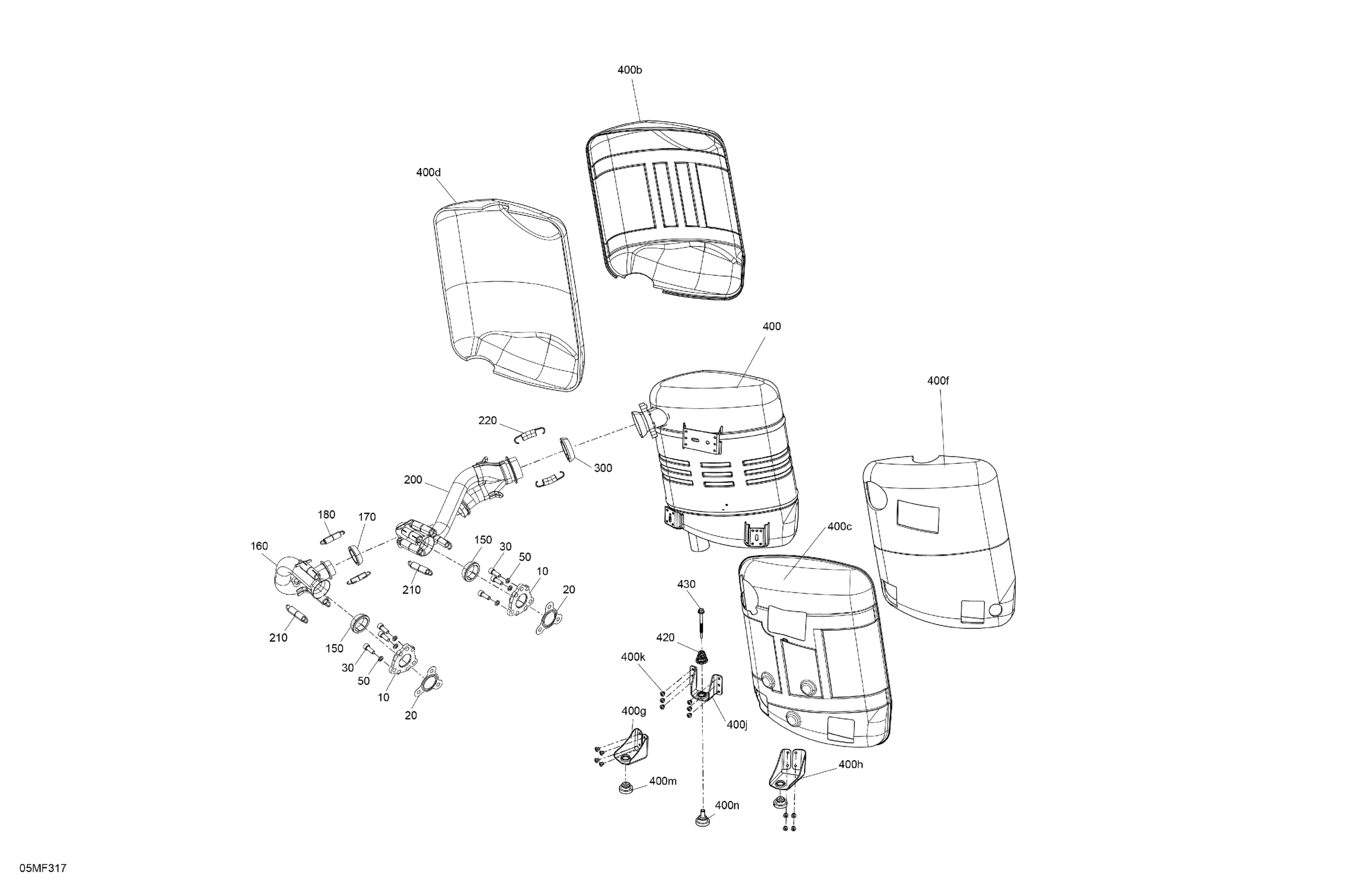

Ski-Doo EXPEDITION - SPORT - 600 ACE - KCTB - Neo Yellow - 16X154X1.5CH Track, 2026 Engine - Exhaust Diagram

Description

Price

Exhaust Manifold

514054673

$69.20

Gasket

514055112

$5.86

Socket Head Screw M8 X 22

250000414

$2.06

Washer

250200111

$1.74

150

Exhaust Gasket

514054807

$15.35

160

Pipe

514055778

$66.12

170

Exhaust Gasket

514054807

$15.35

180

Spring

707601834

$6.20

200

Exhaust Pipe

514055605

$184.58

210

Spring

707601834

$6.20

220

Spring

514055198

$6.20

300

Exhaust Gasket

707601033

$13.29

400

Exhaust Muffler Ass'y | Includes 400 to 400n

514056371

$738.43

400b

RH Deflector

514055981

$50.74

400c

LH Deflector

514056330

$53.82

400d

Glass Wool

514056353

$18.43

400f

Glass Wool

514056354

$7.18

400g

Front Muffler Support

514056022

$5.23

400h

Rear Muffler Support

514056038

$5.23

400j

Support

514056055

$5.23

400k

Pop Rivet 3/16 X ,425

293150293

$0.26

400m

Stopper

514055203

$19.20

400n

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83
