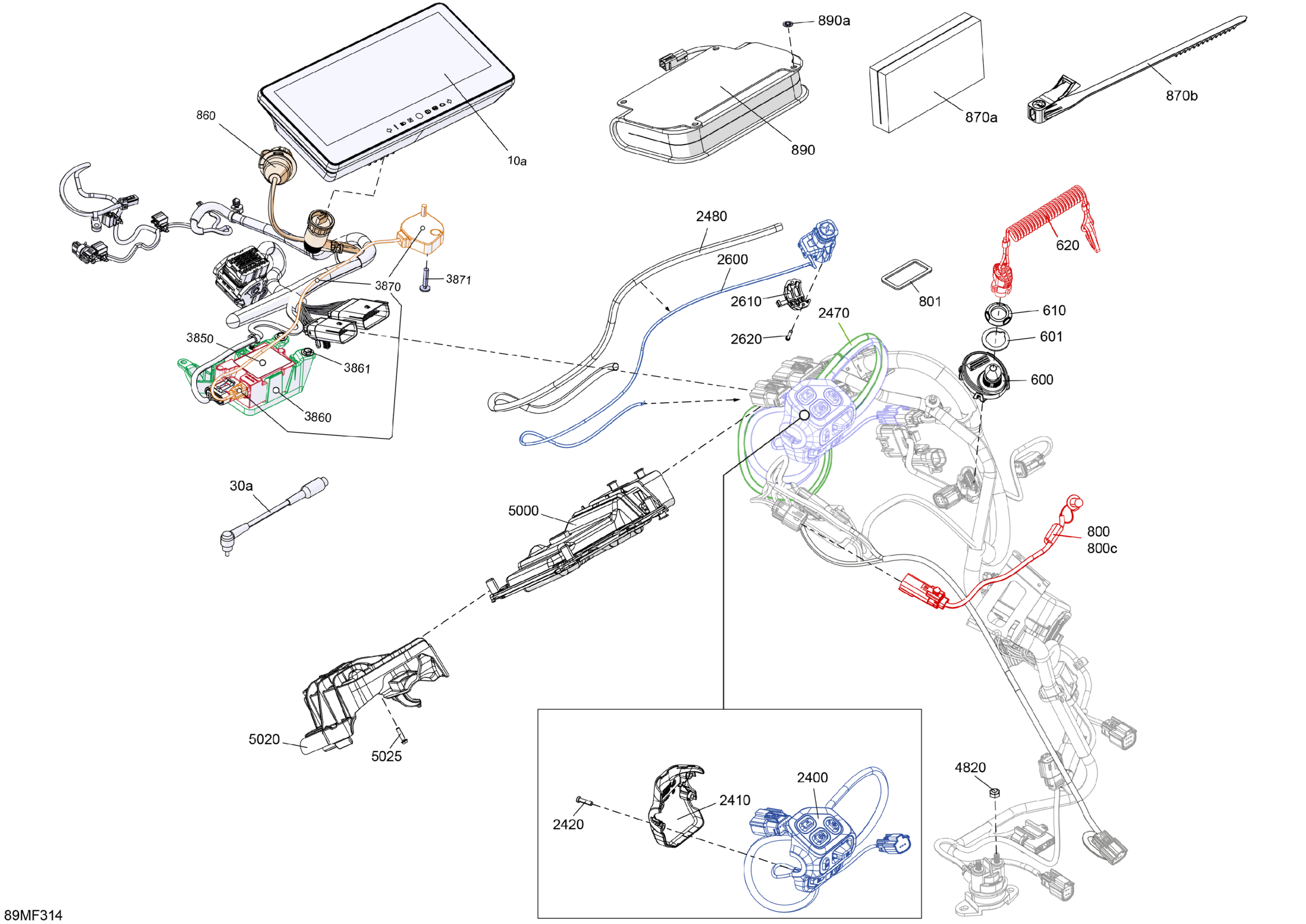

Ski-Doo EXPEDITION - SE - 900 ACE TURBO R - AYTD - Deep Black - 20X154X1.8CST8 Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710010374

$2,039.99

Calibration Wiring Harness | Not Shown

515179997

$5.29

30a

Extension

515175851

$11.12

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

601

Self Adhesive Weather Strip

513034206

$13.99

610

Specialized Nut

278004274

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$26.99

800c

Cap

572103300

$10.49

801

Self Adhesive Weather Strip

513034207

$13.99

860

USB Wiring Harness Ass'y

515179248

$78.99

870a

Sealed Compartment Foam

264000135

$12.99

870b

Mounting Clamp P

515179675

$4.15

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$106.49

890a

Push Nut

732610072

$2.19

2400

LH Front Multifunction Switch

515179679

$199.95

2410

Rear Housing

415130659

$28.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3850

Radio Frequency Module

515179191

$1.00

3860

Module Support

515179847

$14.49

3861

Screw M4 X 16

250000725

$3.49

3870

Radio Frequency Antenna

515179819

$129.99

3871

Torx Screw K50 X 25

250001110

$1.99

4820

Elastic Stop Nut M6

232561414

$0.55

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
