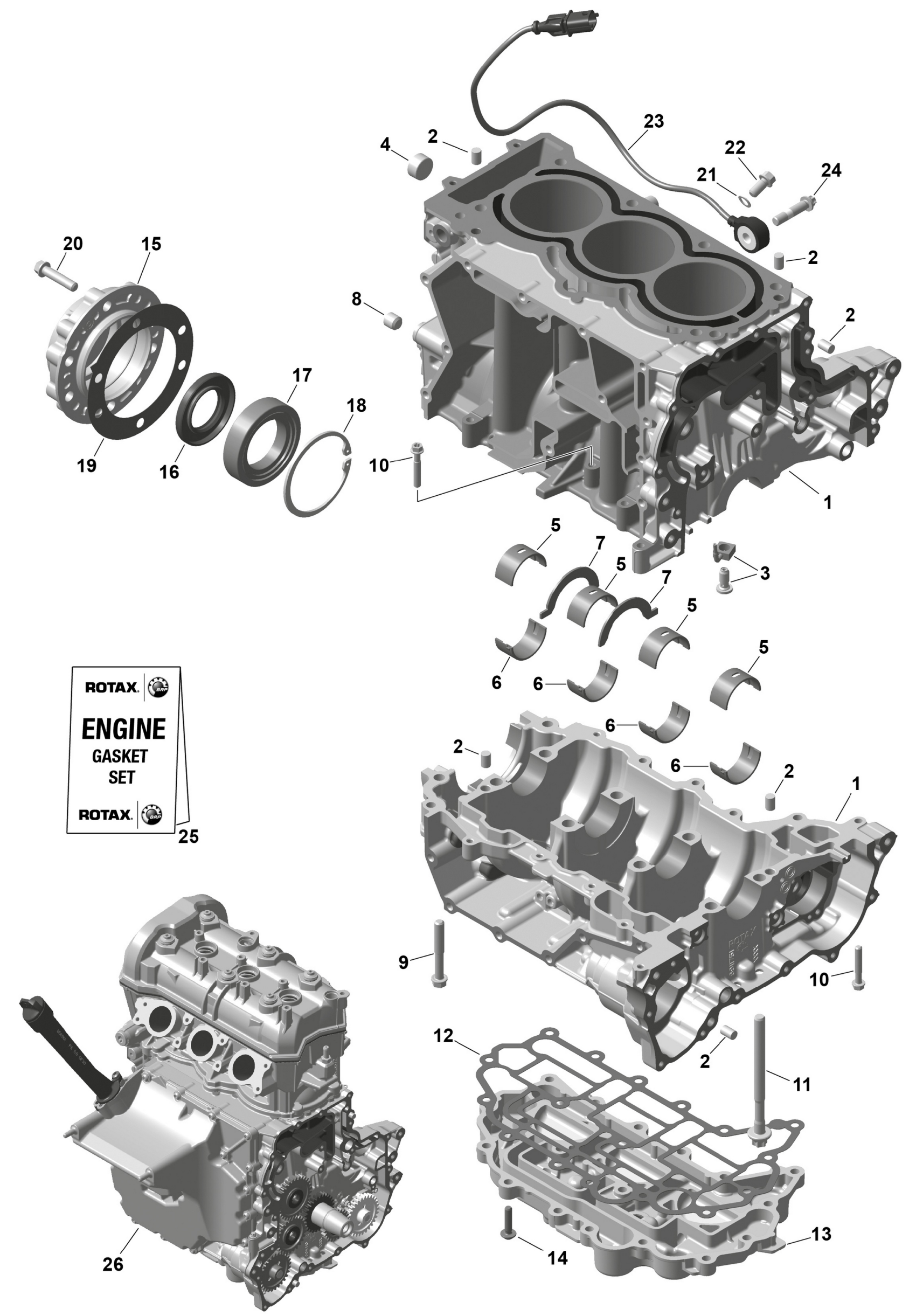

Ski-Doo EXPEDITION - LE - 900 ACE TURBO R - AWTA - Deep Black - 24X154X1.5CST Track, 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase | Includes no. 1-6

420894029

$2,057.43

2

Center Pin 8 X 12

420632014

$3.52

3

Oil Spray Nozzle

420656731

$16.39

4

Plug Screw M20 X 1.5

420641317

$12.15

5

Cushion

420933180

$16.39

6

Cushion

420933185

$17.13

7

Ring Half

420933140

$10.21

8

Threaded Pin

420840500

$6.07

9

Torx Flange Screw M8 X 55

420641213

$7.01

10

Torx Flange Screw M6 X 35

420440274

$0.96

11

Torx Flange Screw M9 X 113

420940945

$11.96

12

Gasket

420431820

$14.90

13

Oil Sump

420911509

$104.99

14

Torx Flange Screw M6 X 25

420841549

$1.91

15

Module PTO Cover ass'y | Includes no. 15-18

420611143

$98.48

16

PTO Cover Oil Seal | Included in gasket kit

420630153

$17.88

17

Roller Bearing

420232497

$52.96

18

Retaining Ring

420845790

$7.09

19

PTO Cover Gasket

420450080

$6.07

20

Torx Flange Screw M8 X 35

420440861

$3.07

21

Sealing Ring

420950141

$1.88

22

Torx Flange Screw M8 X 16

420440852

$3.88

23

Knock Sensor

420664033

$48.48

24

Torx Flange Screw M8 X 35

420641188

$7.01

25

Gasket Kit T03

420686242

$541.76

26

Long Block 903 Turbo

420090320

$4,751.99
