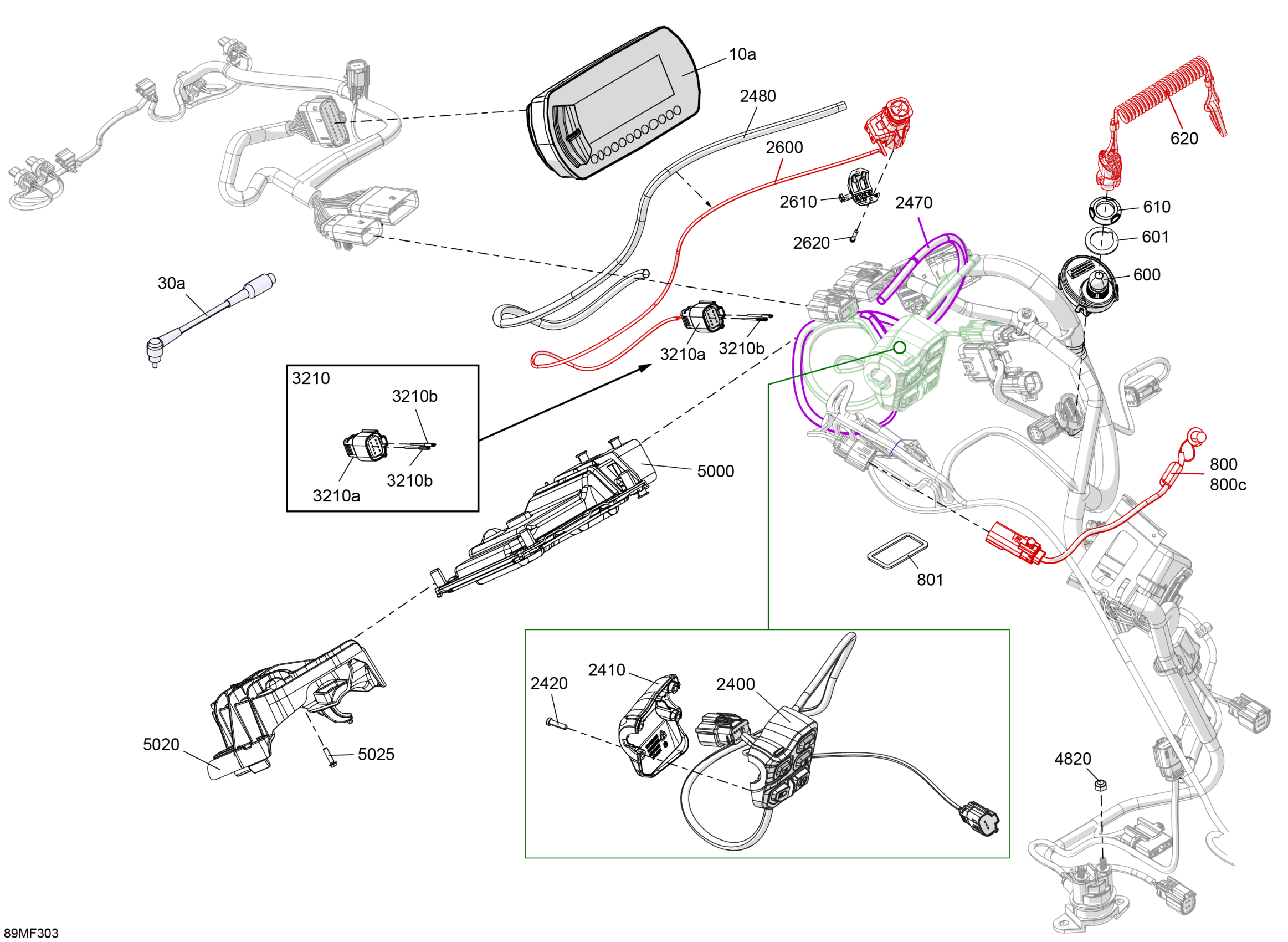

Ski-Doo EXPEDITION - LE - 900 ACE TURBO - ACTA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

601

Self Adhesive Weather Strip

513034206

$13.99

610

Specialized Nut

278004274

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$26.99

800c

Cap

572103300

$10.49

801

Self Adhesive Weather Strip

513034207

$13.99

2400

LH Front Multifunction Switch

515179676

$199.95

2410

Switch Cover

515179437

$13.68

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3210

Connector Plug | Includes 3210 to 3210b

515179276

$14.28

3210a

Connector Molex Female 8 Cavities

515179228

$48.49

3210b

Sealing Cap

278002860

$1.79

4820

Elastic Stop Nut M6

232561414

$0.55

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48

30a

Extension

515175851

$11.12
