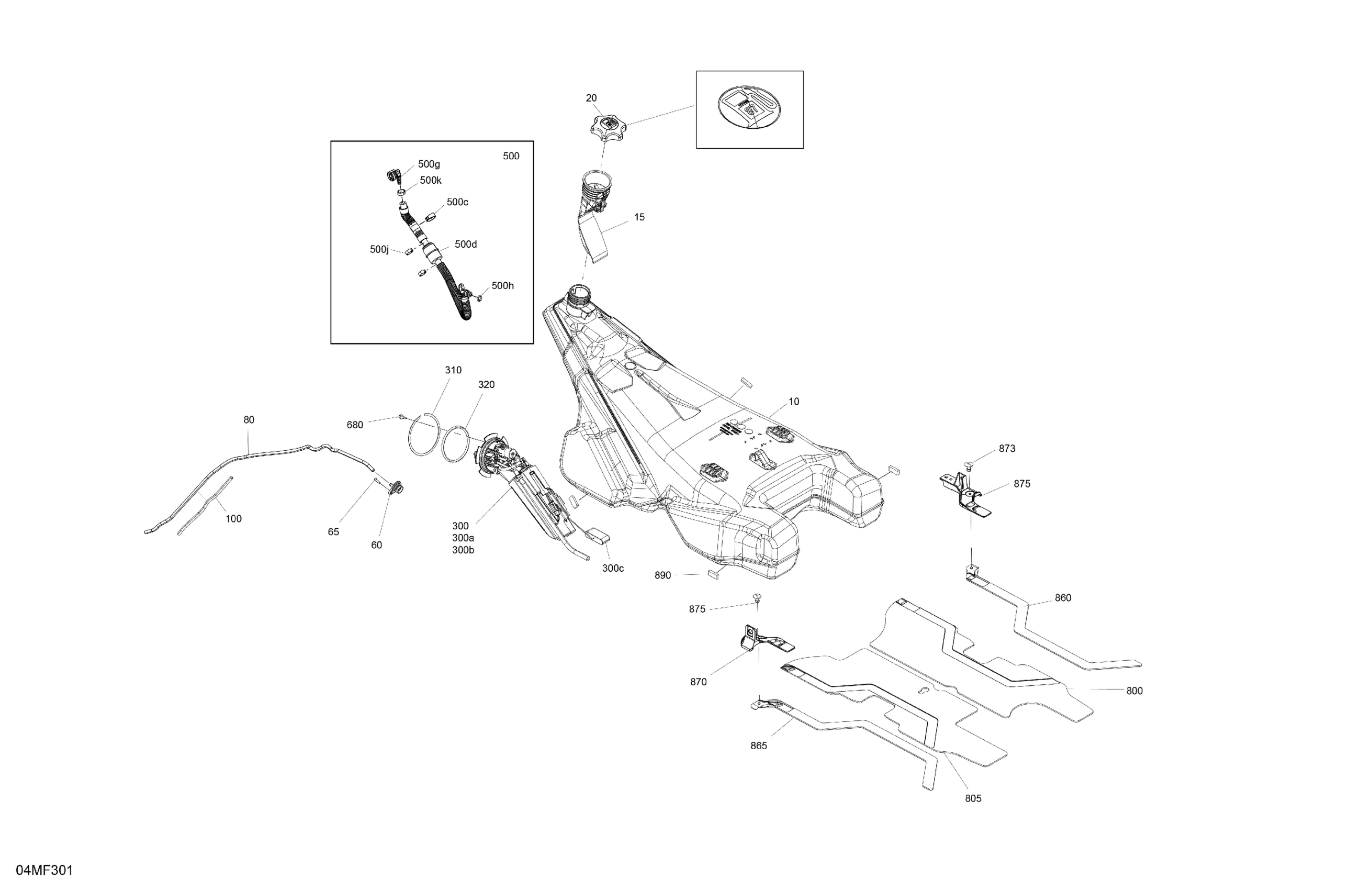

Ski-Doo North America - EXPEDITION - LE - 900 ACE - AATB - Deep Black - 20X154X1.5CSS Track, 2026 02- Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034141

$349.99

15

Tube Ass'y

513033959

$28.99

20

Fuel Tank Cap

513034168

$26.99

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

100

Protector Tube | Not shown

503195447

$13.49

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$259.99

300a

Canister

415130507

$85.99

300b

Filter

415130508

$41.49

300c

Fuel Level Sensor

415130727

$149.99

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500k

513034257

$73.99

500c

Ring

513033910

$7.99

500d

Fuel Filter

513034047

$21.99

500g

Elbow Fitting 90°

293710105

$14.22

500h

O-Ring

513033668

$10.99

500j

Crimp Clamp, 15.3-706R

293650047

$3.29

500k

Crimp Clamp

293650053

$3.09

680

Hex. Flange Screw M5 X 16

250000911

$0.85

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

LH Trim

513034242

$8.49

873

RH Trim

513034243

$8.49

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

890

Tank Guard

513034038

$4.39
