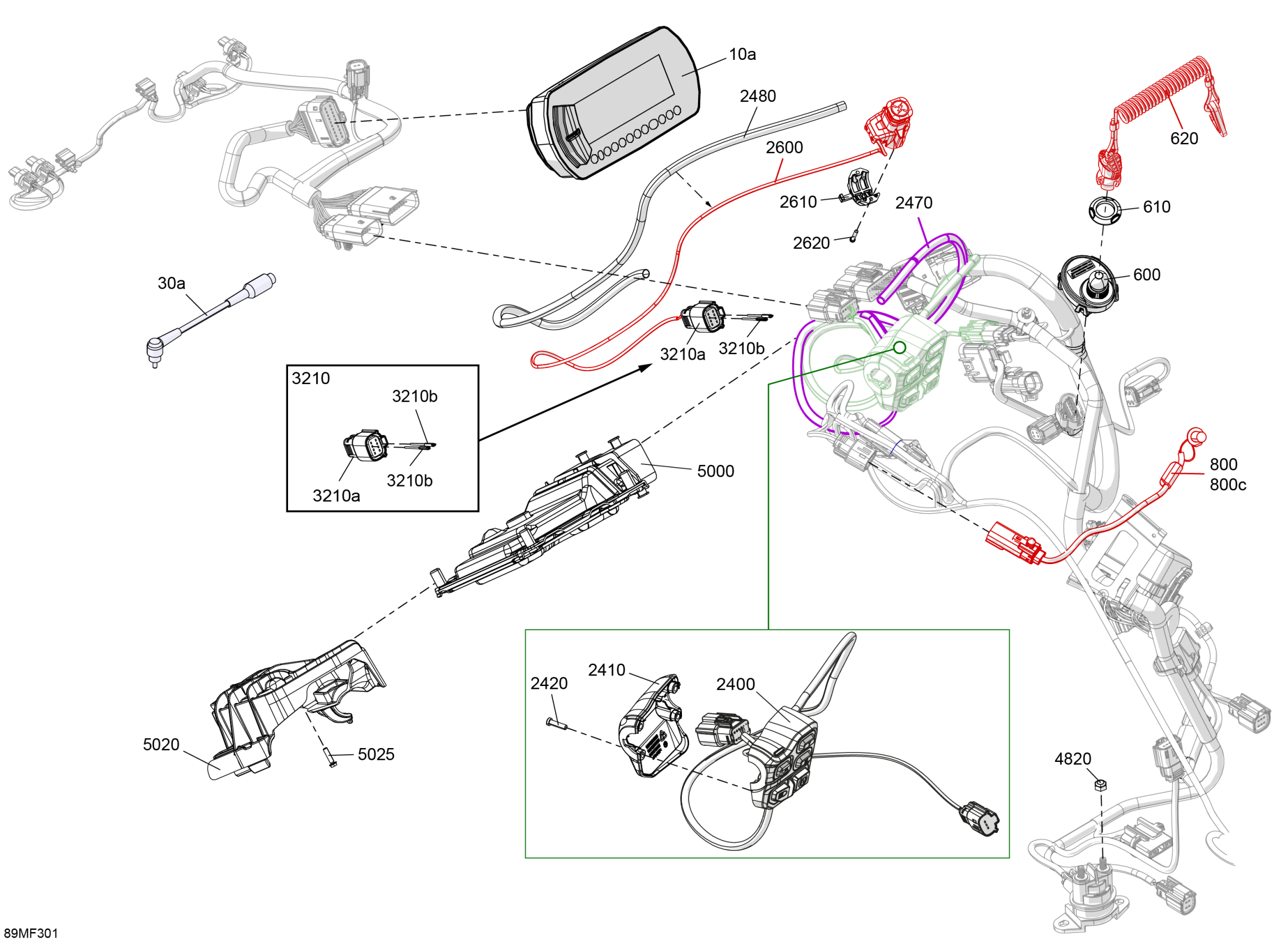

Ski-Doo EXPEDITION - LE - 900 ACE - AATA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$557.66

30a

Extension

515175851

$10.88

600

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

610

Specialized Nut

278004274

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$25.35

800c

Cap

572103300

$9.65

2400

LH Front Multifunction Switch

515179676

$188.43

2410

Switch Cover

515179437

$11.97

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515179472

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3210

Connector Plug | Includes 3210 to 3210b

515179276

$13.58

3210a

Connector Molex Female 8 Cavities

515179228

$46.89

3210b

Sealing Cap

278002860

$1.42

4820

Elastic Stop Nut M6

232561414

$1.55

5000

Vehicle Control Unit

420464172

$532.32

5020

Module Support

512061397

$14.54

5025

Hex. Flange Screw K40 X 16

241141660

$1.25
