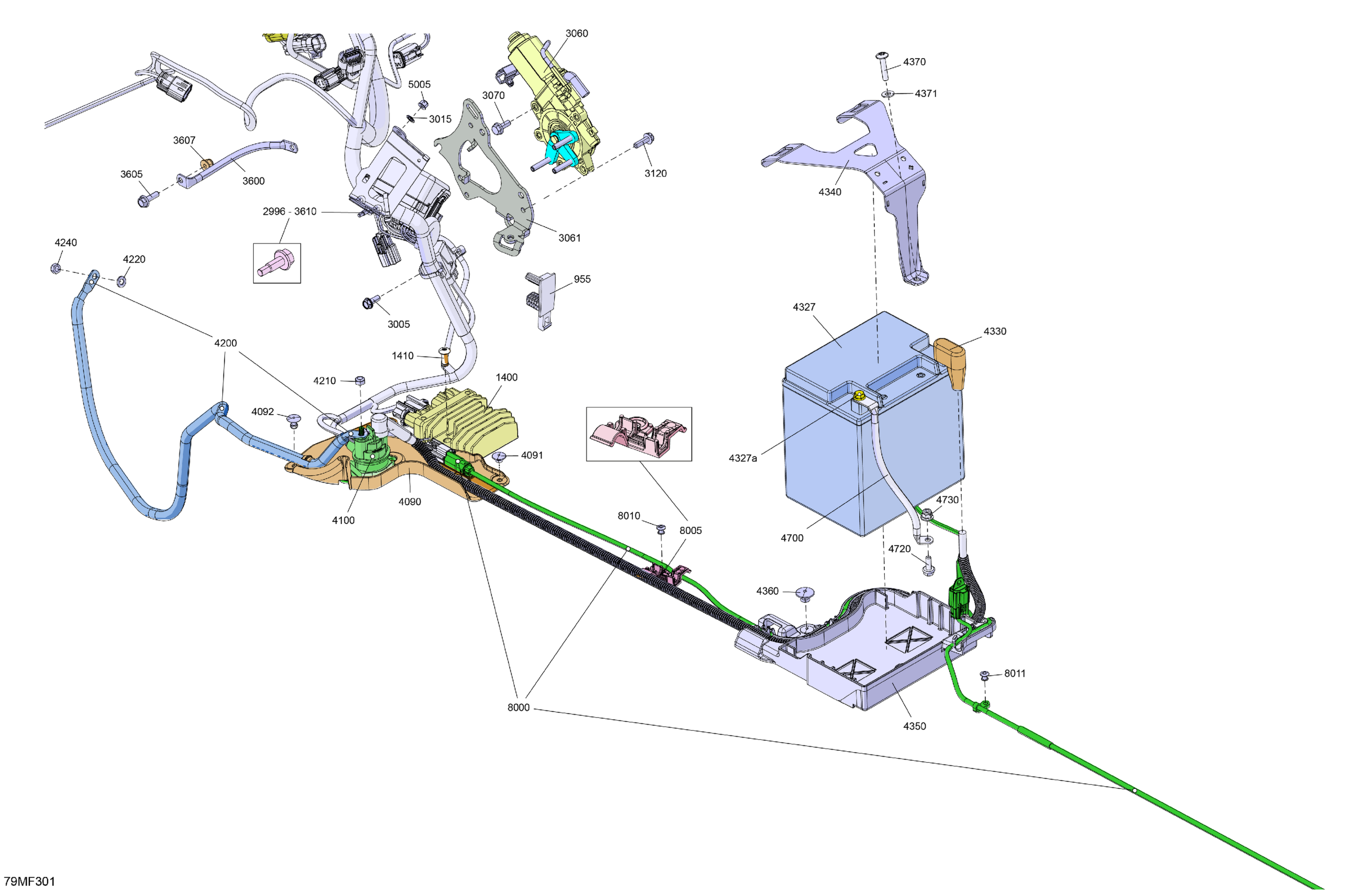

Ski-Doo EXPEDITION - LE - 900 ACE - AATA - Deep Black - 24X154X1.5CST Track, 2026 Electric - Lower Section Diagram

Description

Price

955

Connector Support

515179692

$2.09

1400

Voltage Regulator

710010539

$103.99

1410

Monobolt Rivet 6.4

293150182

$3.09

2996

Hex. Flange Screw M5 X 16

250000911

$0.85

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3015

Push Nut

250100034

$1.29

3020

Pop Rivet 3/16 X ,425

293150293

$0.35

3060

Motor Ass'y

515180200

$184.99

3061

Stop Plate

515179332

$25.99

3070

Hex. Flange Screw M6 X 16

207661644

$0.74

3120

Hex. Flange Screw M6 X 20

210262040

$2.11

3600

Ground Wire

515178338

$16.49

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4090

Starter Relay Support

515178244

$3.49

4091

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4092

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

4100

Starter Relay

278003012

$42.49

4200

Battery Wire

515178336

$47.99

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4327

Battery | Includes 900 to 900a

515176151

$219.99

4327a

Battery Bolt Kit

515176081

$6.99

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip

515178658

$31.99

4350

Battery Support Under

515178659

$15.99

4360

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4370

Torx Truss Screw M6 X 30

250000843

$2.11

4371

Flat Washer

224061121

$0.53

4700

Cable

515178564

$20.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

5005

Hex. Flange Elastic Nut M5

233251414

$1.04

8000

Taillight Wiring Harness

515180015

$58.99

8005

Wiring Harness Support

515179630

$11.01

8010

Pop Rivet 3/16 X ,425

293150293

$0.35

8011

Pop Rivet 3/16 X ,425

293150293

$0.35
