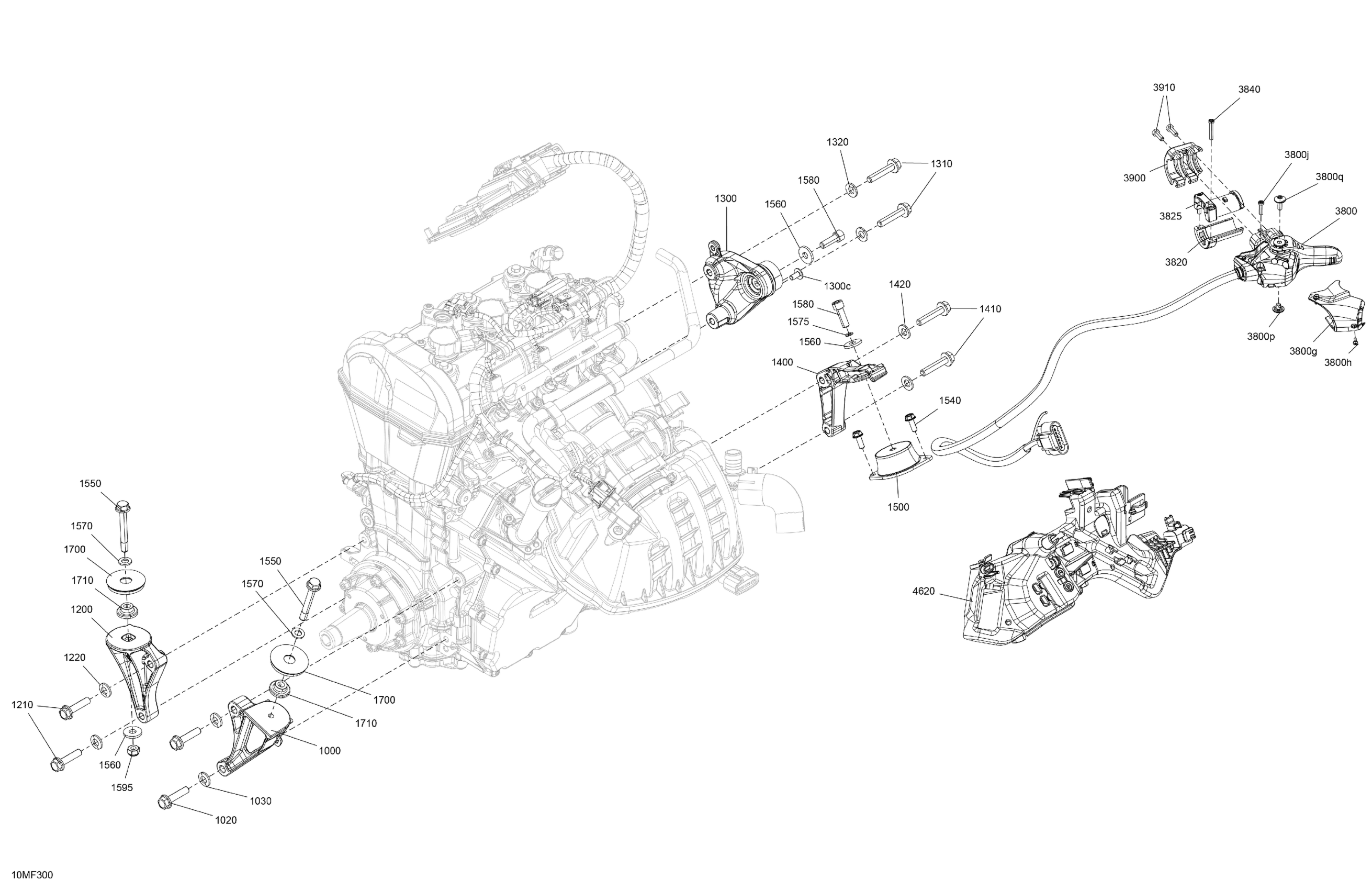

Ski-Doo EXPEDITION - LE - 900 ACE - AATA - Deep Black - 24X154X1.5CST Track, 2026 Engine - System Diagram

Description

Price

1000

Rear PTO Support

512061220

$17.66

1020

Hex. Flange Screw M8 X 35

250000986

$1.74

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061193

$17.66

1210

Hex. Flange Screw M8 X 35

250000986

$1.74

1220

Conical Spring Washer M8

250200146

$0.83

1300

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$102.28

1300c

Torx Truss Screw M6 X 12

250000767

$1.66

1310

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1320

Conical Spring Washer M8

250200146

$0.83

1400

Rear Support, Mag

512061194

$18.43

1410

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.26

1420

Conical Spring Washer M8

250200146

$0.83

1500

Rubber Mount

512061514

$69.97

1540

Hex. Flange Screw M6 X 16

250001062

$1.43

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

1560

Yellow, Washer

503183200

$3.00

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

O-Ring

293300123

$1.00

1580

Socket Head Screw M8 X 25

205082544

$0.92

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Engine Stopper

512061536

$18.43

1710

Spacer

512060285

$17.66

3800

Throttle Housing Ass'y | Includes 3800 to 3800q

512061605

$278.43

3800g

Cap

512060862

$11.57

3800h

Torx Screw M2.9 x 9.5

250000623

$3.11

3800j

Torx Screw

250000671

$0.83

3800p

Screw

512060961

$10.52

3800q

Torx Truss Head Screw W Nylon M5X14

250001059

$2.06

3820

Lower Handle Support

512061550

$8.66

3825

Upper Handle Support

512061551

$8.66

3840

Torx Screw #8-18

250000263

$1.02

3900

Front Housing

512060987

$8.34

3910

Torx Screw M5 X 14

250000632

$6.18

4620

Multi Purpose Support

512061557

$14.05
