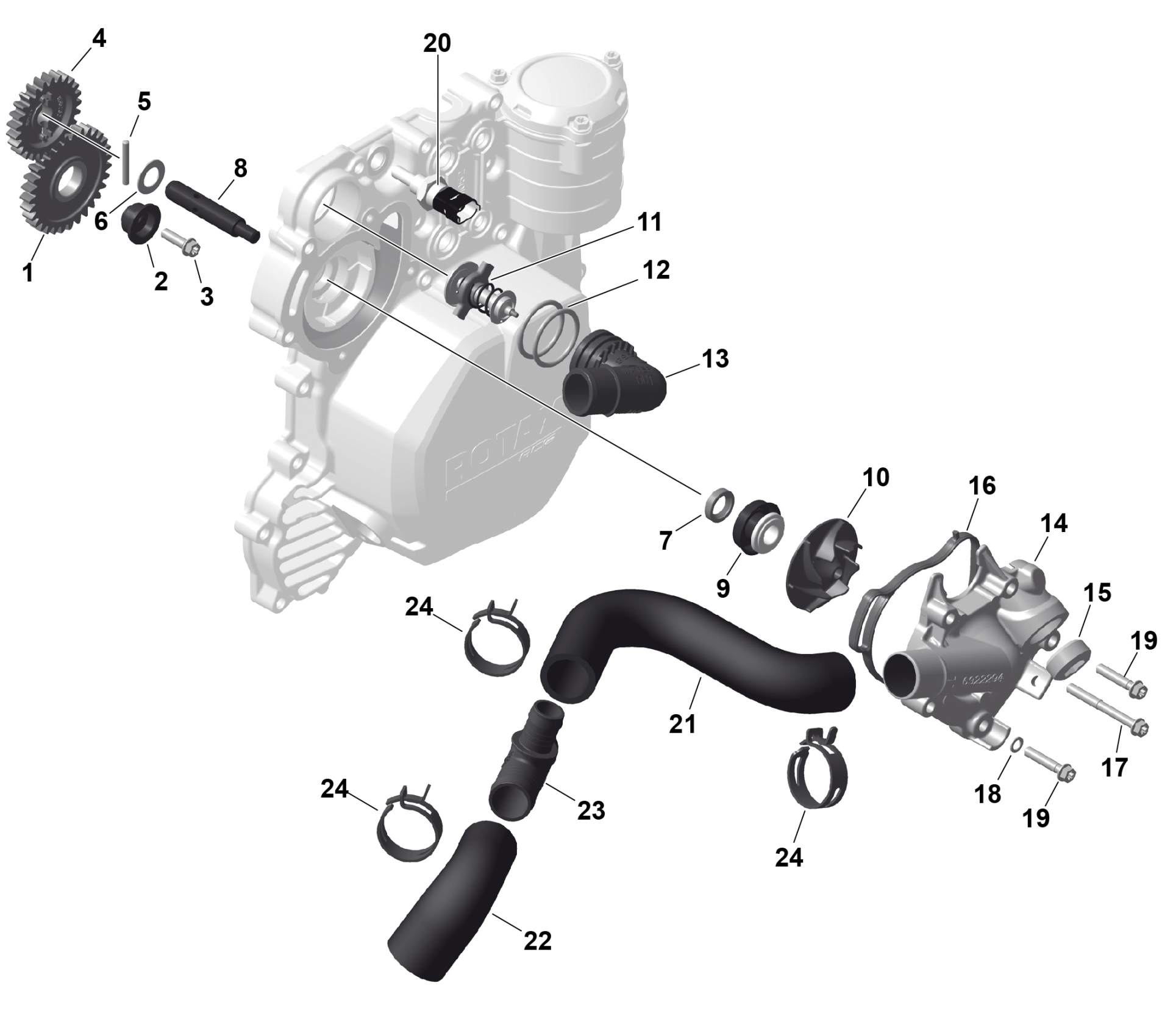

Ski-Doo EXPEDITION - LE - 900 ACE - AATA - Deep Black - 24X154X1.5CST Track, 2026 ROTAX - Engine Cooling Diagram

Description

Price

Idle Gear, 31 Teeth

420835067

$23.49

Spacer

420947394

$24.99

Torx Flange Screw M6 X 20

420440207

$3.06

Water Pump Gear

420835230

$7.65

Needle Pin

420232431

$4.39

Thrust Washer

420827261

$7.51

Oil Seal

420931802

$7.65

Waterpump Shaft

420820150

$25.99

Seal | included in gaket kit

420850948

$34.99

Water Impeller

420222880

$7.52

Thermostat 80°

420822651

$37.99

Water Pump Housing O-Ring

420950896

$11.59

Thermostat cover

420922158

$9.27

Water Pump Housing | Includes no. 14-15

420922307

$72.99

Not Available As Spare Parts

XXX

Unavailable

Water Pump Housing Gasket

420431682

$19.49

Torx Flange Screw M6 X 55

420440702

$3.06

Sealing Washer

404146600

$2.97

Torx Flange Screw M6 X 30

420440647

$2.00

Temperature Sensor

278002895

$39.99

Molded Hose

420201502

$21.99

Molded Hose

420201507

$11.60

T Fitting

420660551

$6.32

Self Compensating Clamp 35

420951350

$5.61
