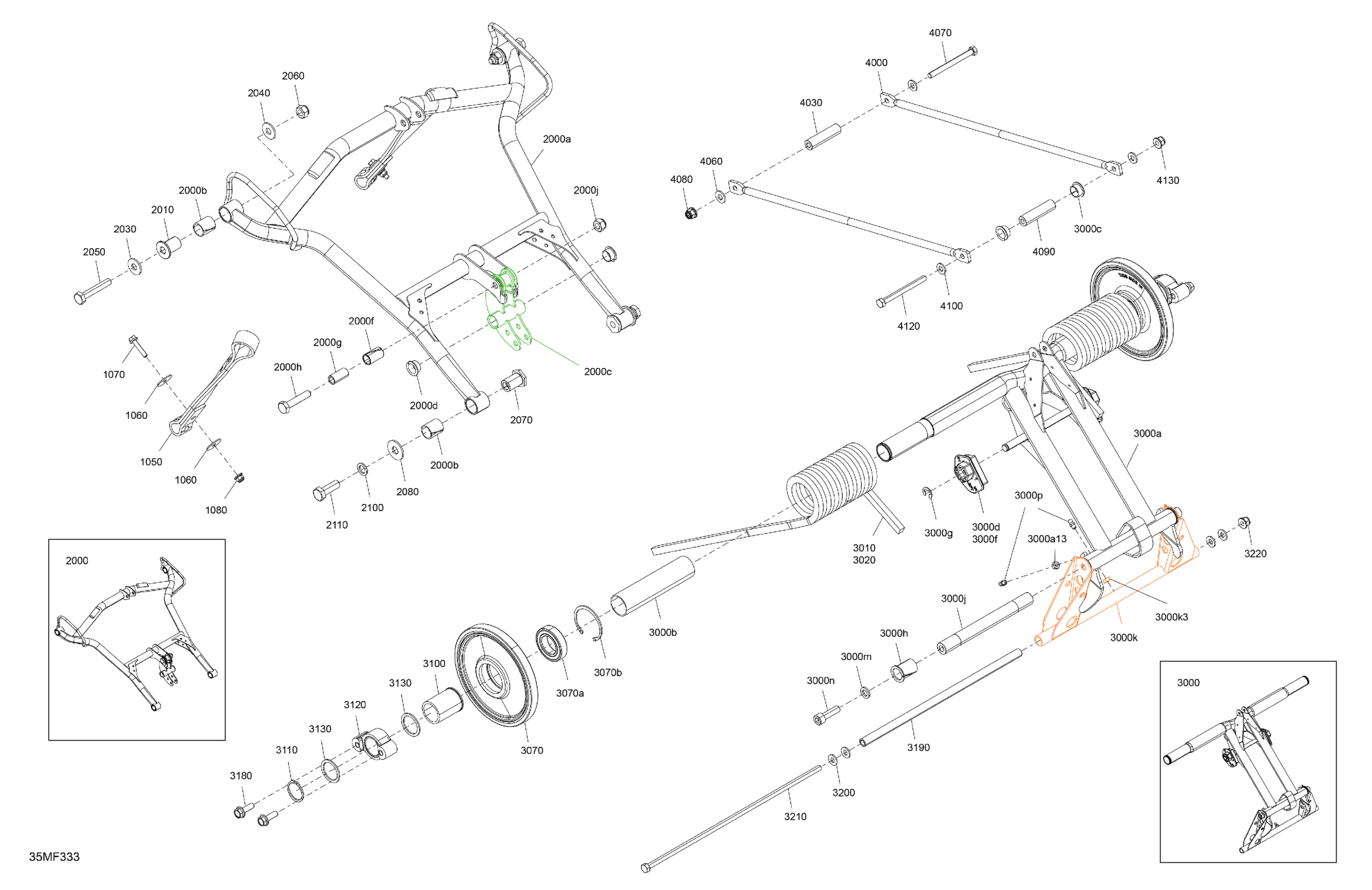

Ski-Doo North America - EXPEDITION - LE - 600R E-TEC - ABTB - Deep Black - 24X154X1.5CST Track, 2026 05- Suspension - Rear - Upper Section Diagram

Description

Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000j

503197213

$211.99

2000a

Front Suspension Arm

503197214

Unavailable

2000b

Extended Bushing

503191556

$7.83

2000c

Rocker

503192531

$76.99

2000d

Swivel Bushing

503191555

$7.83

2000f

Bushing

503193037

$16.18

2000g

Bushing | Includes 240d to 240d1

503189282

$4.34

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Axe

503197934

$14.99

2030

Washer

503191926

$1.58

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503193716

$17.23

2080

Flat Washer, 12 mm

250200113

$4.44

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000p

503197222

$200.99

3000a

Suspension Arm | Includes 3000a to 3000a13

503197223

Unavailable

3000a13

Hexagonal Nut M6

232061404

$0.34

3000b

Plastic Socket

503197777

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

LH Cam Adjuster

503191565

$16.49

3000f

RH Cam Adjuster

503191566

$16.49

3000g

E-Circlip

293370013

$0.65

3000h

Cushion

503191640

$5.93

3000j

Lower Shaft

503196223

$19.49

3000k

Shackle | Includes 3000k to 3000k3

503197775

$124.99

3000k3

Hexagonal Nut M6

232061404

$0.34

3000m

Washer

503192496

$0.77

3000n

Socket Head Screw M10 X 35

205503554

$7.51

3000p

Grease Fitting

408200700

$3.49

3010

Painted Square Spring, LH

503192911

$126.99

3020

Painted Square Spring, RH

503192910

$126.99

3070

Wheel 165 Mm | Includes 3070 to 3070b

503197212

$51.99

3070a

Ball Bearing

503191778

$12.49

3070b

Retaining Ring

415129598

$12.01

3100

Spacer

503197369

$17.99

3110

External Retaining Ring

293370188

$2.29

3120

Suspension Support Ass'y

503197878

$19.99

3130

Washer

503197679

$12.65

3180

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

3190

Axle Pivot

503191396

$80.49

3200

Washer

503192494

$3.17

3210

Bolt 369MM

503195156

$25.99

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503197211

$18.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01
