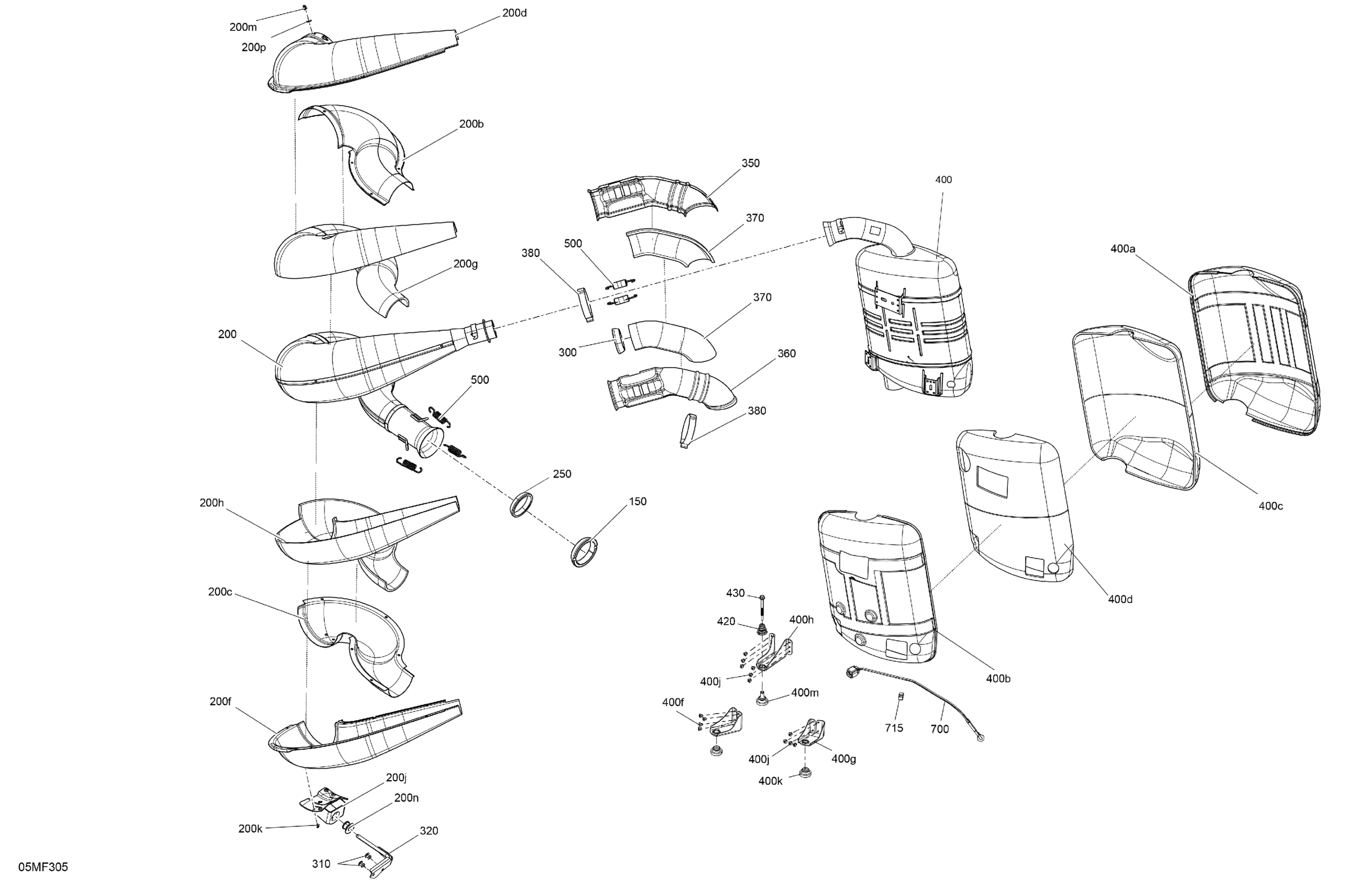

Ski-Doo EXPEDITION - LE - 600R E-TEC - ABTB - Deep Black - 24X154X1.5CST Track, 2026 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$25.34

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056407

$626.84

200b

Front Upper Aluminum Shell

514055222

$36.54

200c

Shell

514056282

$34.30

200d

Upper Rear Shell

514056420

$75.34

200f

Rear Lower Aluminum Shell

514056141

$75.34

200g

Glass Wool

514056422

$18.63

200h

Glass Wool

514056352

$6.75

200j

Plate

514055844

$5.13

200k

Avex Rivet

390909200

$0.28

200m

Avex Rivet

390909200

$0.28

200n

Vibration Damper

514056375

$11.10

200p

Washer 3/16

514055537

$0.96

250

Seal

514055965

$17.88

300

Exhaust Gasket

514055294

$23.85

310

Ornit Rivet 6,5 X 14.5

293150266

$1.88

320

Support

514055214

$9.27

350

Front Shield

514055558

$37.28

360

Rear Shield

514055559

$37.28

370

Wool Glass Tail

514056381

$4.15

380

Clip

514056035

$14.90

400

Exhaust Muffler | Includes 400 to 400m

514056444

$698.48

400a

RH Deflector

514055980

$52.96

400b

LH Deflector

514056315

$52.96

400c

Glass Wool

514056353

$17.88

400d

Glass Wool

514056354

$6.97

400f

Exhaust Support

514056454

$28.33

400g

Rear Muffler Support

514056038

$5.07

400h

Exhaust Support

514056455

$49.22

400j

Pop Rivet 3/16 X ,425

293150293

$0.30

400k

Stopper

514055203

$18.63

400m

Stopper Ass'y

514056138

$12.21

420

Spring

514055282

$6.01

430

Hex. Flange Screw M6

250000926

$0.96

500

Spring

514055198

$6.01

700

Exhaust Temperature Sensor

514055884

$137.28

715

Clip

710010204

$1.40
