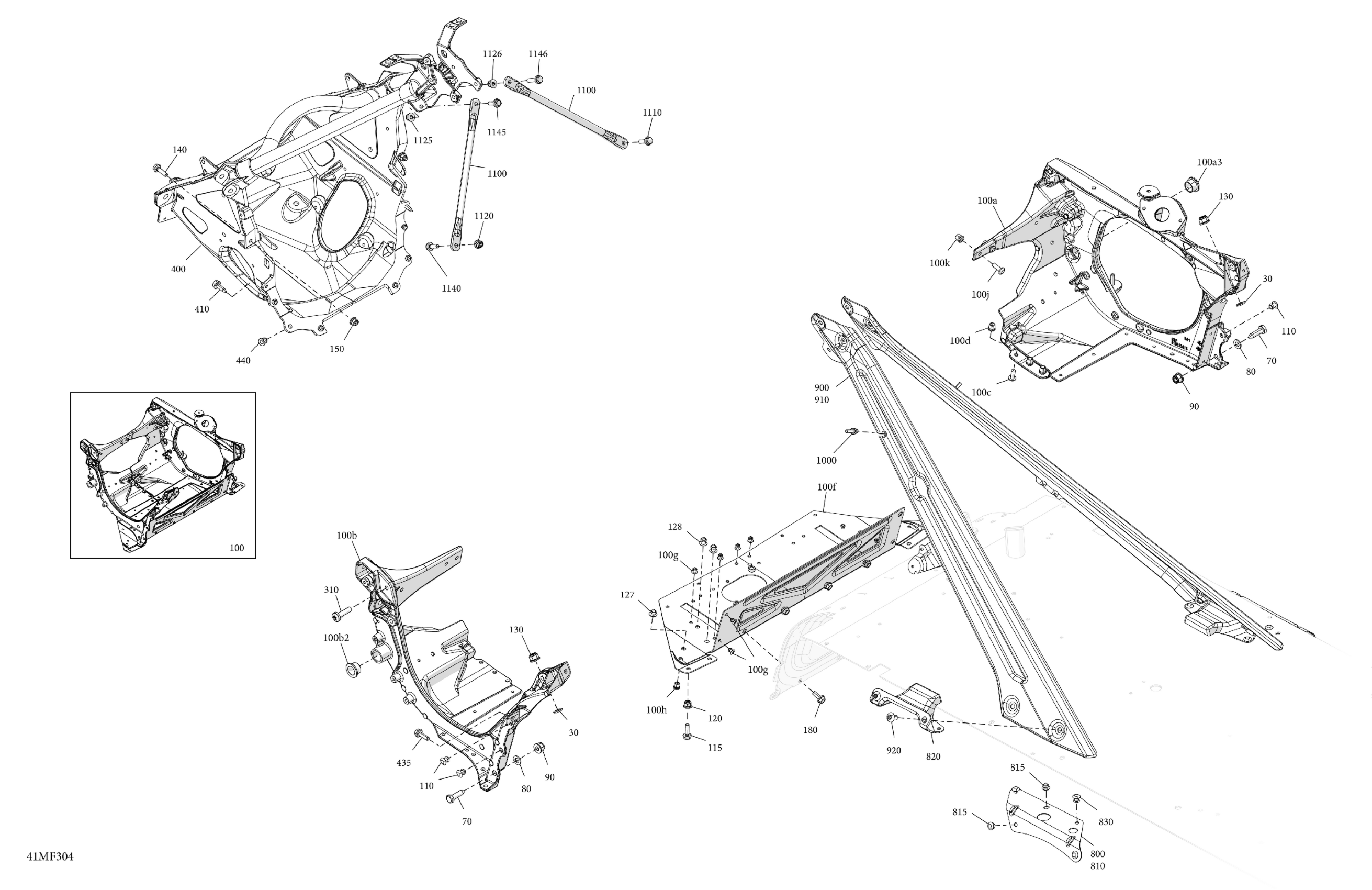

Ski-Doo North America - EXPEDITION - LE - 600R E-TEC - ABTA - Deep Black - 20X154X1.5CSS Track, 2026 06- Frame - System - Front Section Diagram

Description

Price

Flat Washer 8 mm

234081410

$0.83

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100k

518335197

$429.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

$239.99

100a3

Leg Cushion

505073317

$8.66

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Cushion

505073317

$8.66

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Rivet Avibulb 3/16

293150203

$2.09

100h

Insert M5 X 0.8

293450268

$2.09

100j

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100k

Collar Huck Magna-Grip 6.4

293150149

$0.48

110

Rivet Ornit 6,5 X 16.5

293150267

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

127

Rivet Ornit 6,5 X 10.5

293150264

$2.40

128

Ornit Rivet 6,5 X 14.5

293150266

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

435

Hex. Flange Screw M6 X 20

207562056

$2.11

440

Rivet Ornit 6,5 X 16.5

293150267

$2.40

800

LH Under Chassis Reinforcement

518331729

$13.49

810

RH Under Chassis Reinforcement

518331731

$19.99

815

Rivet Ornit 6,5 X 10.5

293150271

$2.40

820

Cross Member Support

518331733

$33.99

830

Ornit Rivet 6,5 X 14.5

293150266

$2.40

900

Deep Black, LH Rear Diagonal Cross Member

518336888

$119.99

910

Deep Black, RH Rear Diagonal Cross Member

518336889

$119.99

920

Screw-Torx Truss M8 X 12

250001376

$3.38

1000

Insert M5 - 0.8

293450267

$4.59

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1145

Hex. Flange Screw M6 X 20

207662046

$2.11

1146

Hex. Flange Screw M6 X 25

207662556

$4.44
