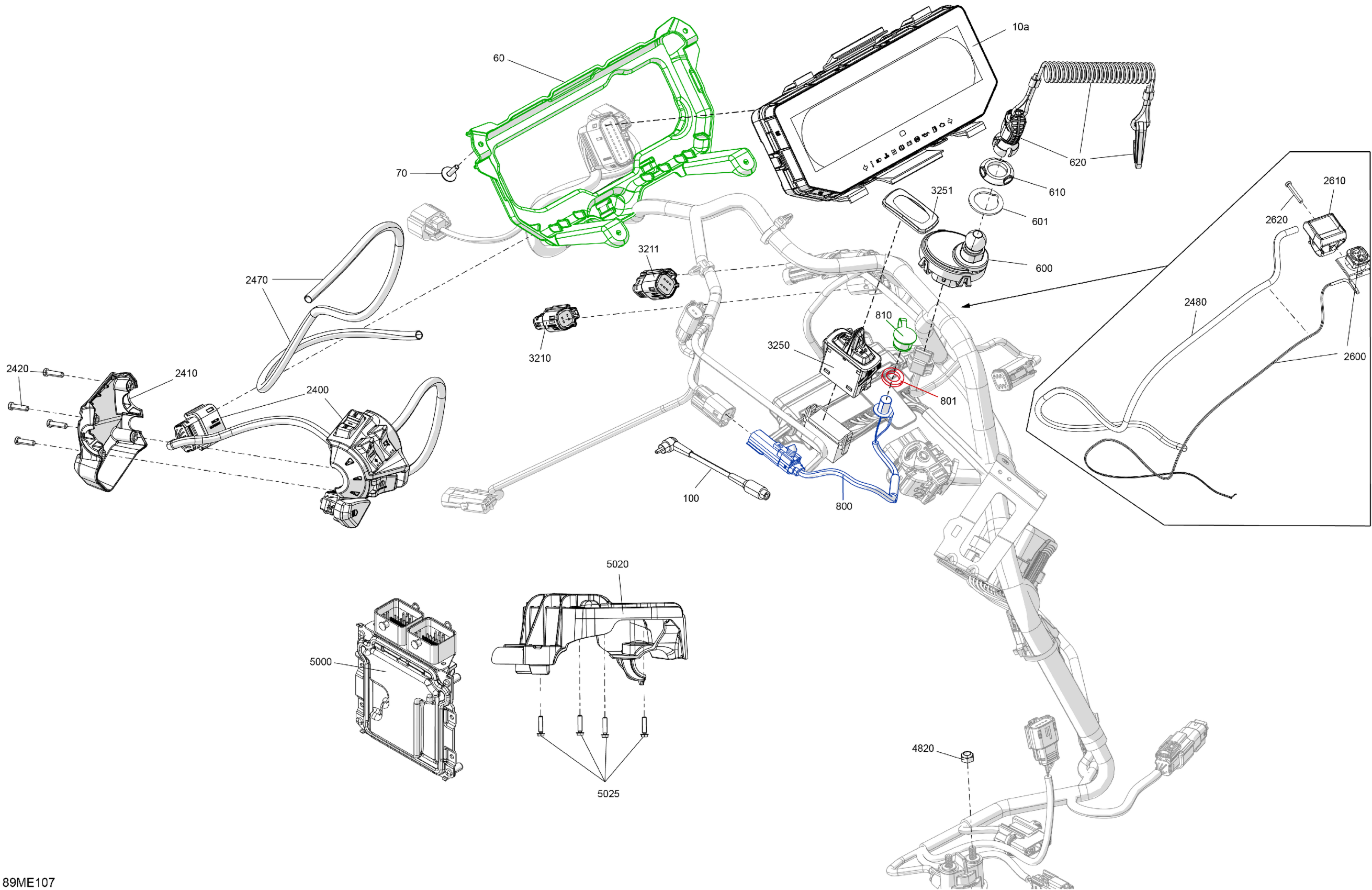

Ski-Doo EXPEDITION - 900 ACE TURBO - SE - AFSA - Deep Black - 154X20X1.5ICST Track - 2025 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Full Size Mono Gauge

515179828

$509.67

Gauge Support

515178965

$5.01

Screw M4 X 16

250000725

$2.87

100

Extension

515175851

$10.55

600

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

601

Self Adhesive Weather Strip

513034206

$11.60

610

Specialized Nut

278004274

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

801

Self Adhesive Weather Strip

513034208

$11.66

810

Cap

572103300

$9.36

2400

LH Switch Housing

515178196

$258.93

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3210

4 Circuits Female Housing

515178177

$11.54

3211

Coil Connector

515178202

$12.49

3250

Rocket Switch

515178501

$18.63

3251

Boot

515179778

$8.10

4820

Elastic Stop Nut M6

232561434

$1.55

5000

Vehicle Control Unit

420464172

$532.32

5020

Module Support

512061397

$14.10

5025

Hex. Flange Screw K40 X 16

241141660

$1.25
