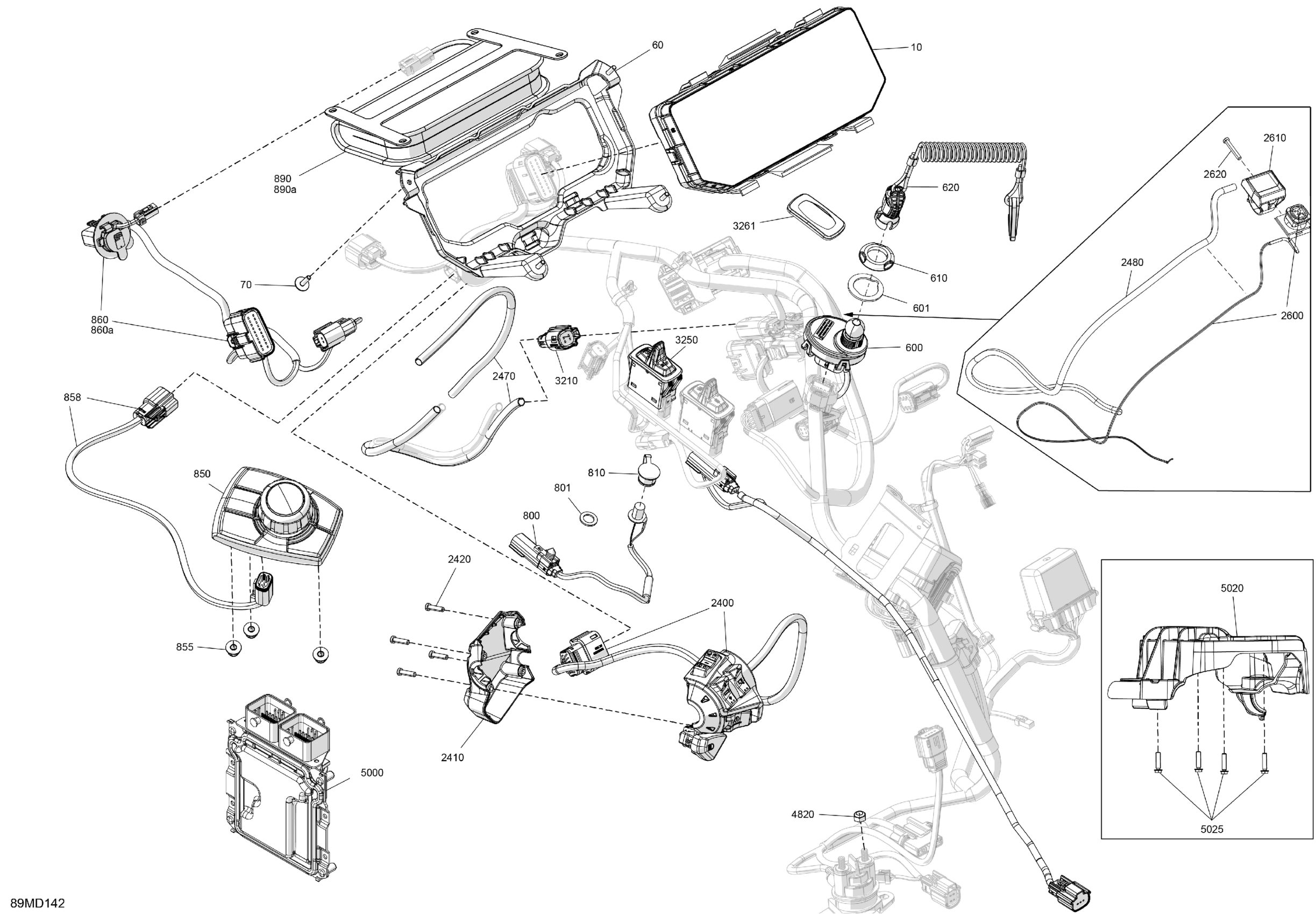

Ski-Doo EXPEDITION 900 ACE Turbo R - SE - AYRB - Deep Black - 154X20X1.5CST Track, 2024 Electric - Upper Section Diagram

Description

Price

Full Size Color Multifunction Gauge

515179262

$1,055.35

Gauge Support

515178965

$5.17

Screw M4 X 16

250000725

$2.87

600

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

601

Self Adhesive Weather Strip

513034206

$11.95

610

Specialized Nut

278004274

$2.72

620

Grey, Ski-Doo DESS Key

515179475

$64.58

800

Heated Visor Wiring Harness

515178645

$36.12

801

Self Adhesive Weather Strip

513034208

$12.02

810

Cap

572103300

$9.65

850

Switch

515178325

$479.20

855

Elastic Flange Nut M6 X 1.0

233261416

$1.74

858

Adaptor Wiring Harness

515178958

$25.35

860

USB Wiring Harness | Includes 860 to 860a

515178758

$88.43

860a

USB Connector

710006405

$33.77

890

Protective Bag | Includes 890 to 890a

515179153

$109.20

890a

Push Nut

732610072

$1.72

2400

LH Switch Housing

515178851

$268.43

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515179472

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3210

4 Circuits Female Housing

515178177

$11.89

3250

Rocket Switch

515178501

$19.20

3261

Boot

515179778

$8.35

4820

Elastic Stop Nut M6

232561434

$1.55

5000

Vehicle Control Unit

420464172

$532.32

5020

Module Support

512061397

$14.54

5025

Hex. Flange Screw K40 X 16

241141660

$1.25
