Partiron

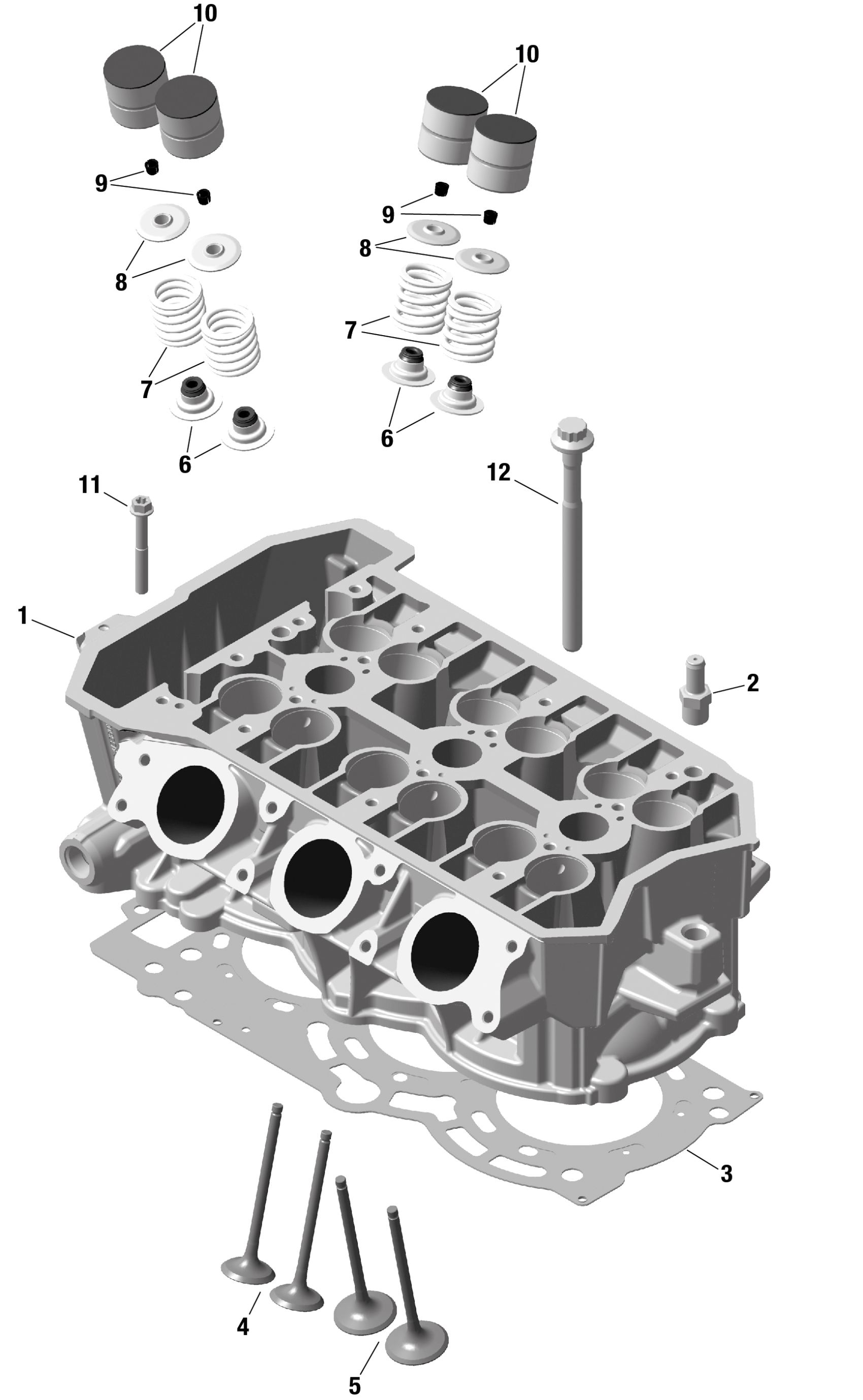

Ski-Doo EXPEDITION 900 ACE Turbo R - LE - AWRA - Deep Black - 154X20X1.5CST Track, 2024 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y

420413369

$830.49

2

Hose Nipple

420441420

$14.22

3

Cylinder Head Gasket | Included in gasket kit

420431816

$62.49

4

Exhaust Valve 25 MM This part replaces 420855148.

420855146

$36.99

5

Intake Valve 29MM

420855131

$22.49

6

Valve Stem Seal

420431671

$5.39

7

Valve Spring

420939540

$7.51

8

Valve Spring Retainer

420855150

$4.44

9

Cotter Valve

420254630

$1.01

10

Valve Lifter Bucket

420855165

$46.49

11

Torx Flange Screw M6 X 45

420440324

$0.98

12

Sided Bolt Screw M9 X 113

420940947

$11.59
