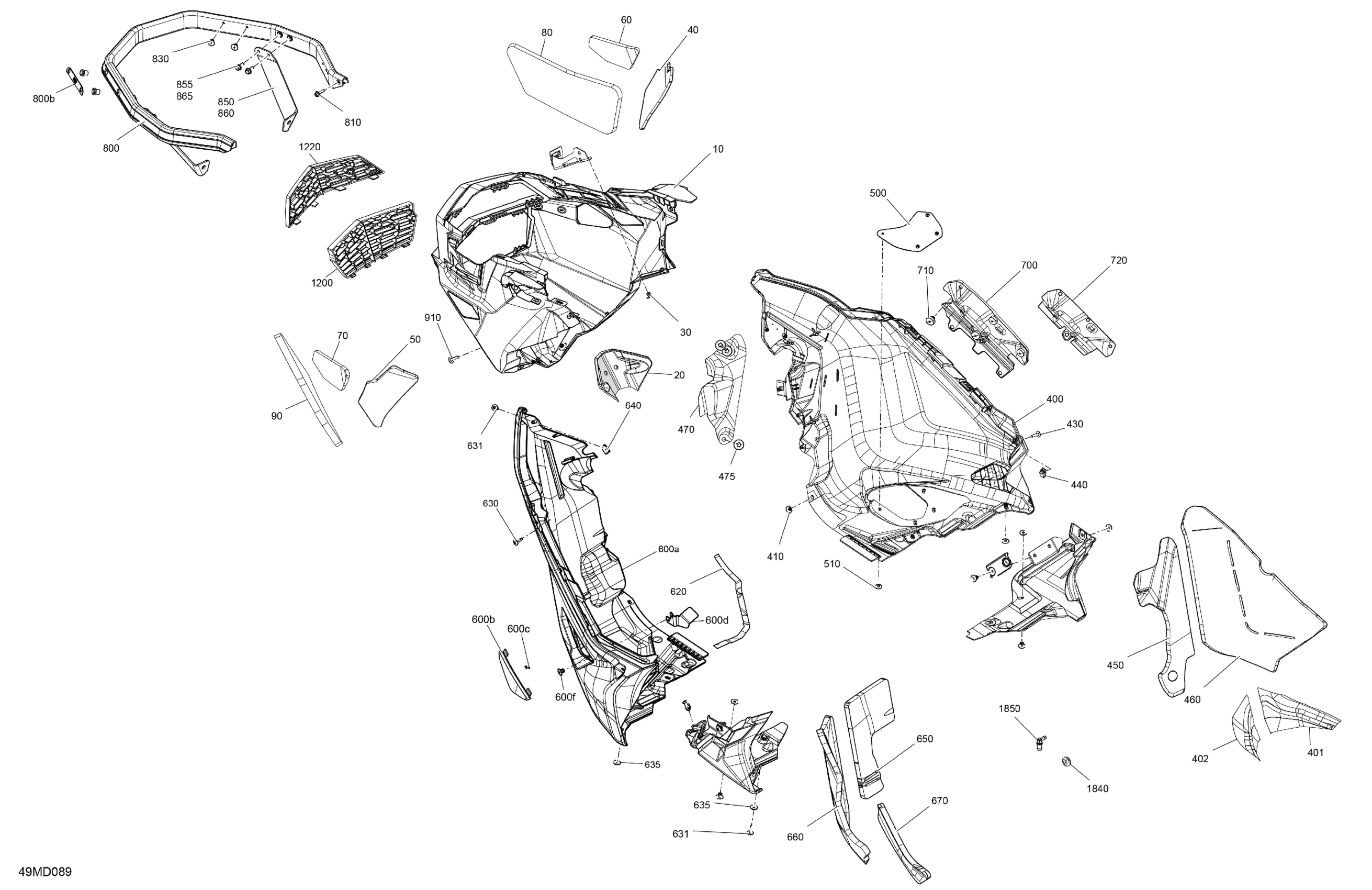

Ski-Doo North America - EXPEDITION 900 ACE Turbo - LE - ASRA - Deep Black - 154X24X1.5CST Track, 2024 07- Body - Bottom Pan Diagram

Description

Price

Front Bottom Pan

502008638

$184.99

Skid Plate

502008466

$7.76

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH Upper Bottom Pan Foam

502007788

$18.99

LH Upper Bottom Pan Foam

502007789

$18.99

RH Front Central Bottom Pan Foam

502008308

$9.59

LH Front Central Bottom Pan Foam

502008309

$13.99

Bonded Foam

502008355

$19.49

Bonded Foam

502008356

$7.89

400

RH Bottom Pan

502008108

$93.99

401

Heat Shield

502008536

$4.39

402

Heat Shield

502008537

$4.39

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

Foam

502008378

$10.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600a

LH Bottom Pan

502008070

$93.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

600d

Stopper

502008326

$36.99

600f

Pop Rivet 3/16"

293150103

$0.55

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008610

$2.09

720

Reflective Sheet

502008156

$4.79

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

800b

Bumper Trim

502007880

$29.99

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661644

$0.74

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1840

Grommet

414036300

$2.79

1850

Male Connector

414580700

$4.12
