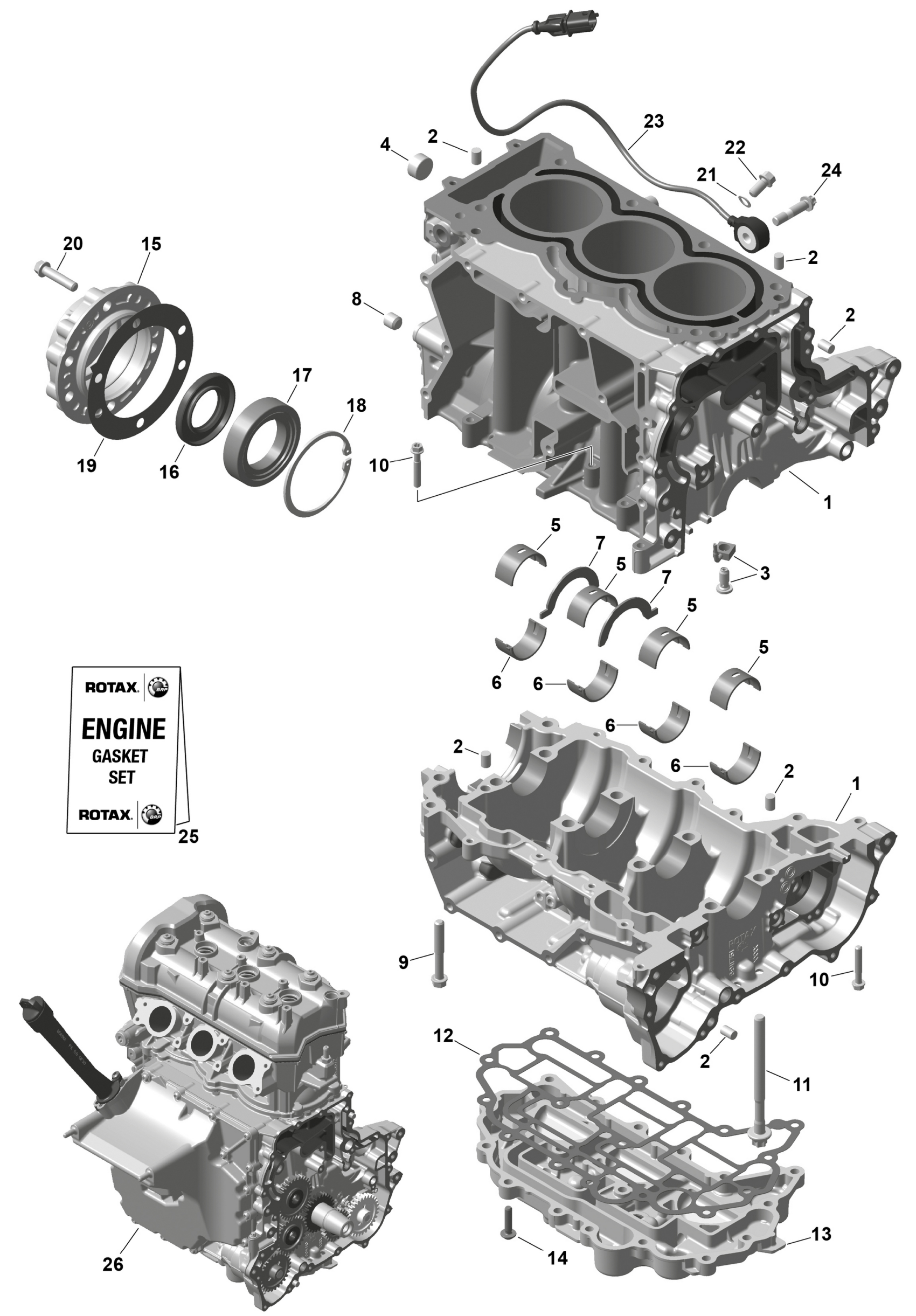

Ski-Doo North America - EXPEDITION - 900 ACE TURBO - LE - ACSA - Deep Black - 154X20X1.5CST Track - 2025 01- ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase | Includes no. 1-6

420894029

$2.00

2

Center Pin 8 X 12

420632014

$3.89

3

Oil Spray Nozzle

420656731

$17.61

4

Plug Screw M20 X 1.5

420641317

$14.22

5

Cushion

420933180

$17.58

6

Cushion

420933185

$18.49

7

Ring Half

420933140

$11.60

8

Threaded Pin

420840500

$7.65

9

Torx Flange Screw M8 X 55

420641213

$7.41

10

Torx Flange Screw M6 X 35

420440274

$1.01

11

Torx Flange Screw M9 X 113

420940945

$13.70

12

Gasket

420431820

$15.89

13

Oil Sump

420911509

$102.49

14

Torx Flange Screw M6 X 25

420841549

$2.00

15

Module PTO Cover ass'y | Includes no. 15-18

420611143

$103.99

16

PTO Cover Oil Seal | Included in gasket kit

420630153

$19.49

17

Roller Bearing

420232497

$56.99

18

Retaining Ring

420845790

$7.51

19

PTO Cover Gasket

420450080

$7.65

20

Torx Flange Screw M8 X 35

420440861

$3.27

21

Sealing Ring

420950141

$2.00

22

Torx Flange Screw M8 X 16

420440852

$4.12

23

Knock Sensor

420664033

$53.99

24

Torx Flange Screw M8 X 35

420641188

$7.41

25

Gasket Kit

420686237

$572.49

26

Long Block 903 Turbo

420090320

$4.00
