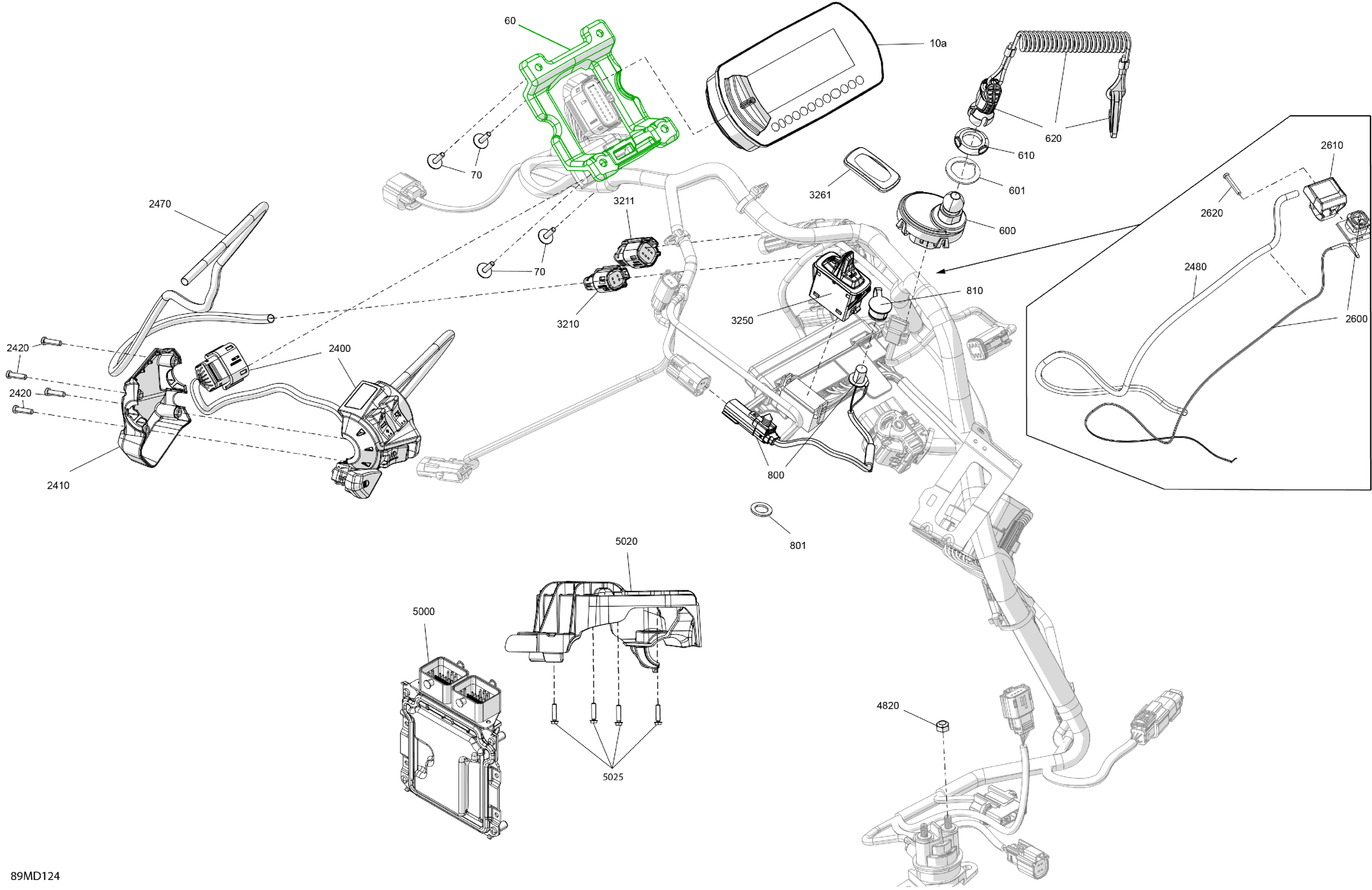

Ski-Doo EXPEDITION 900 ACE Turbo - LE - ACRA - Deep Black - 154X20X1.5CST Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

Housing

515178450

$5.06

Screw M4 X 16

250000725

$3.30

600

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

601

Self Adhesive Weather Strip

513034206

$11.60

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

801

Self Adhesive Weather Strip

513034208

$11.66

810

Cap

572103300

$9.36

2400

LH Switch Housing

515178102

$258.18

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3210

4 Circuits Female Housing

515178177

$11.54

3211

Coil Connector

515178202

$12.49

3250

Rocket Switch

515178501

$18.63

3261

Boot

515179778

$8.10

4820

Elastic Stop Nut M6

232561434

$1.78

5000

Vehicle Control Unit

420464172

$611.16

5020

Module Support

512061397

$14.10

5025

Hex. Flange Screw K40 X 16

241141660

$1.43
