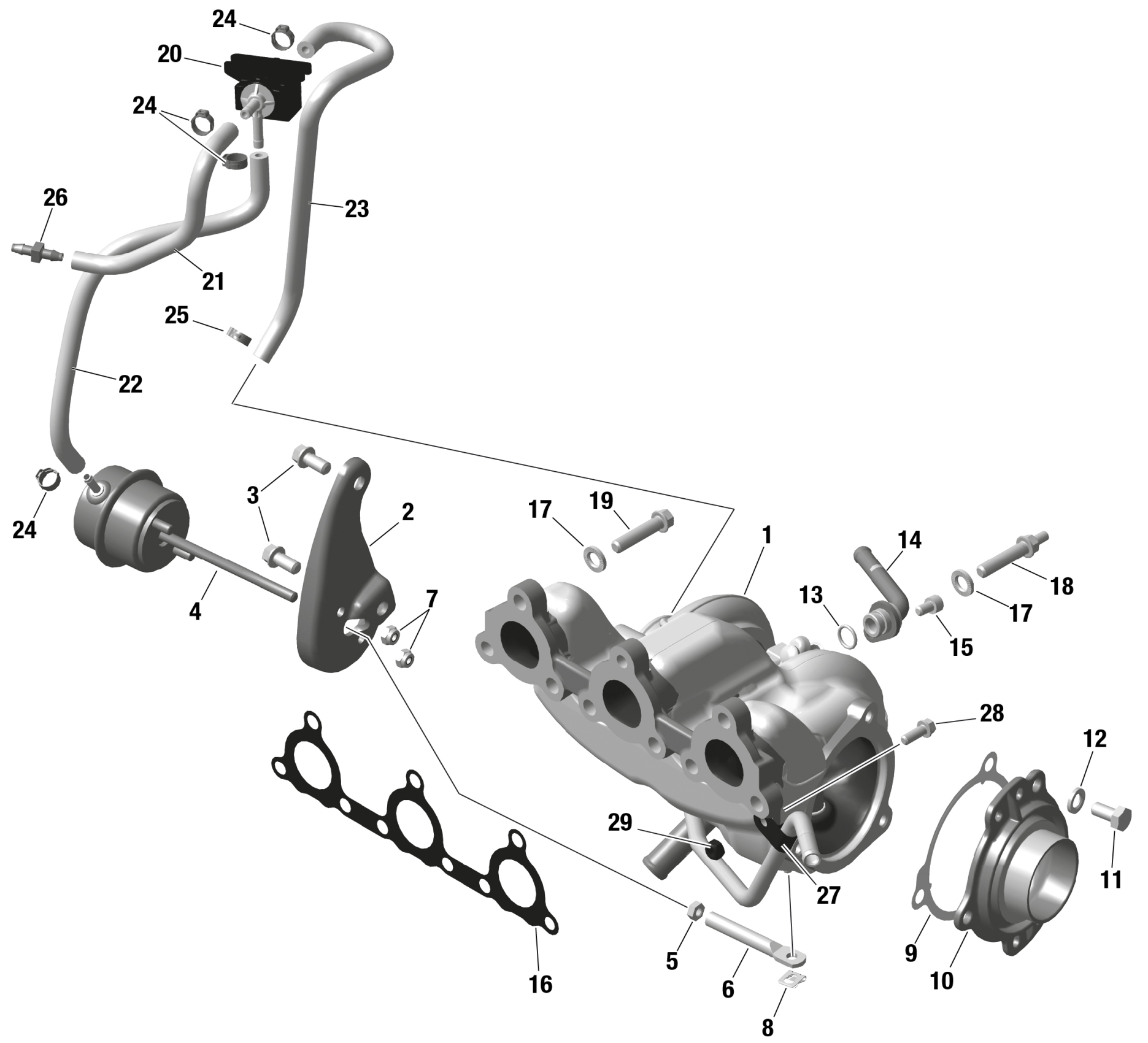

Ski-Doo North America - EXPEDITION 900 ACE Turbo - LE - ACRA - Deep Black - 154X20X1.5CST Track, 2024 01- ROTAX - Turbocharger Diagram

Turbo Ass'y - for turbine/exhaust manifold replacement see TST 143931 | Includes no. 2-23

420893886

$1.00

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Circlip

420845000

$1.01

Exhaust Gasket

420431941

$12.71

Exhaust Flange

420873511

$56.99

Hex Screw M8 X 16

420940586

$19.99

Washer

420827521

$5.50

O-Ring

420650928

$3.17

Cooling Water Pipe

420622063

$45.49

Allen Screw M6 X 10

420241081

$2.11

Gasket | Included in gasket kit

420431850

$15.89

Washer

420827521

$5.50

Collar Screw M8 X 35

420440693

$4.79

Torx Flange Screw M8 X 35

420641188

$7.41

Solenoid Valve

420664636

$129.99

Hose 390MM This part replaces 420201231.

420201233

$21.99

Hose 390MM This part replaces 420201231.

420201233

$21.99

Hose 390MM This part replaces 420201231.

420201233

$21.99

Clamp 9.2-10.9 mm

420853133

$3.56

Gear Clamp

420851468

$5.97

Connector Tube

420922161

$5.09

Cable Clamp

420851101

$2.51

Torx Flange Screw M6 X 16

420440162

$3.17

Lock Nut M6-10

420942046

$14.22
