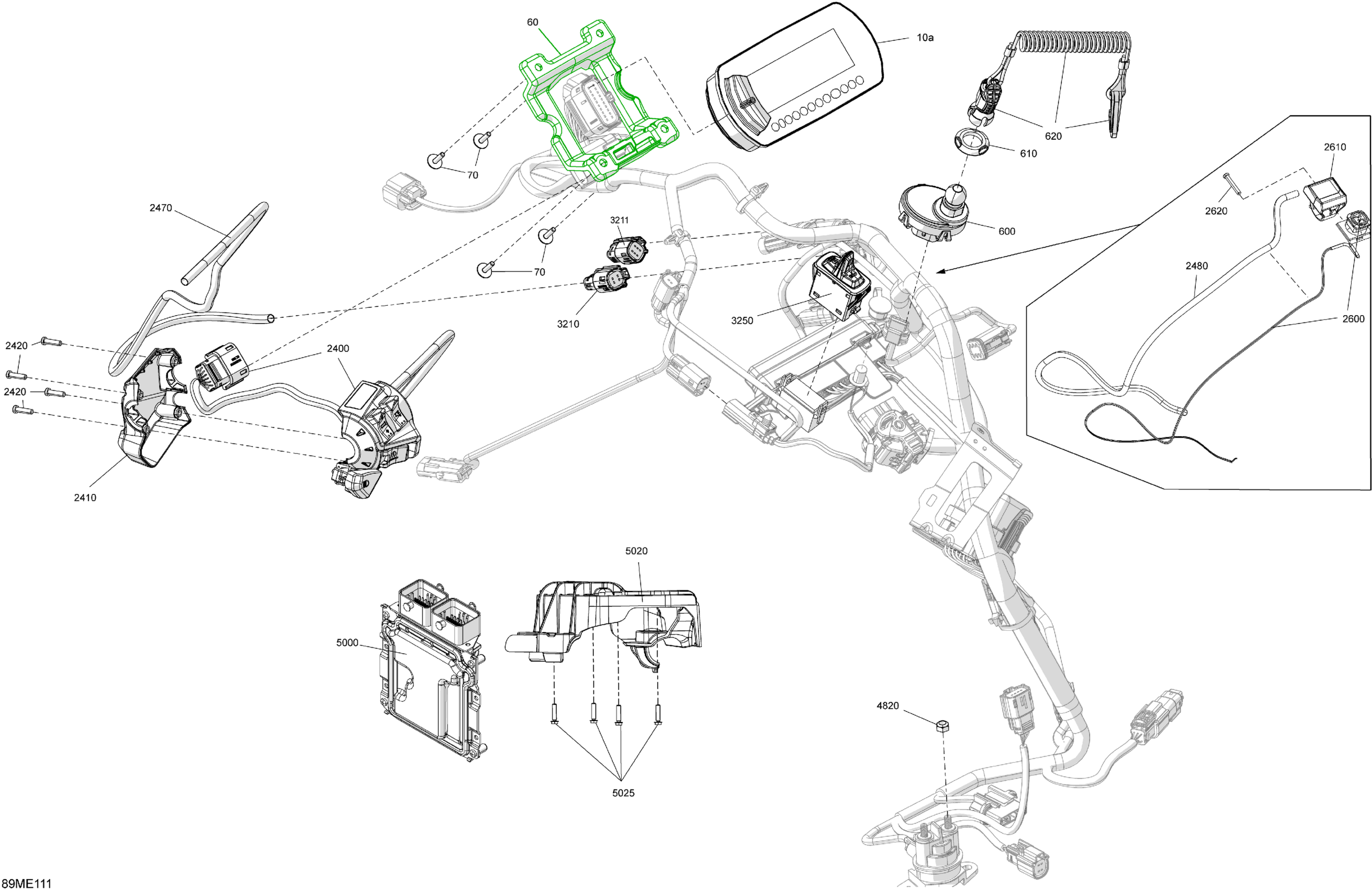

Ski-Doo North America - EXPEDITION - 900 ACE - SPORT - KDSA - Neo Yellow - 154X16X1.5CH Track - 2025 08- Electric - Upper Section Diagram

Description

Price

10a

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Housing

515178450

$6.39

Screw M4 X 16

250000725

$3.49

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

610

Specialized Nut

278004274

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2400

LH Switch Housing

515178102

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3210

4 Circuits Female Housing

515178177

$12.18

3211

Coil Connector

515178202

$13.24

3250

Rocket Switch

515178501

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
