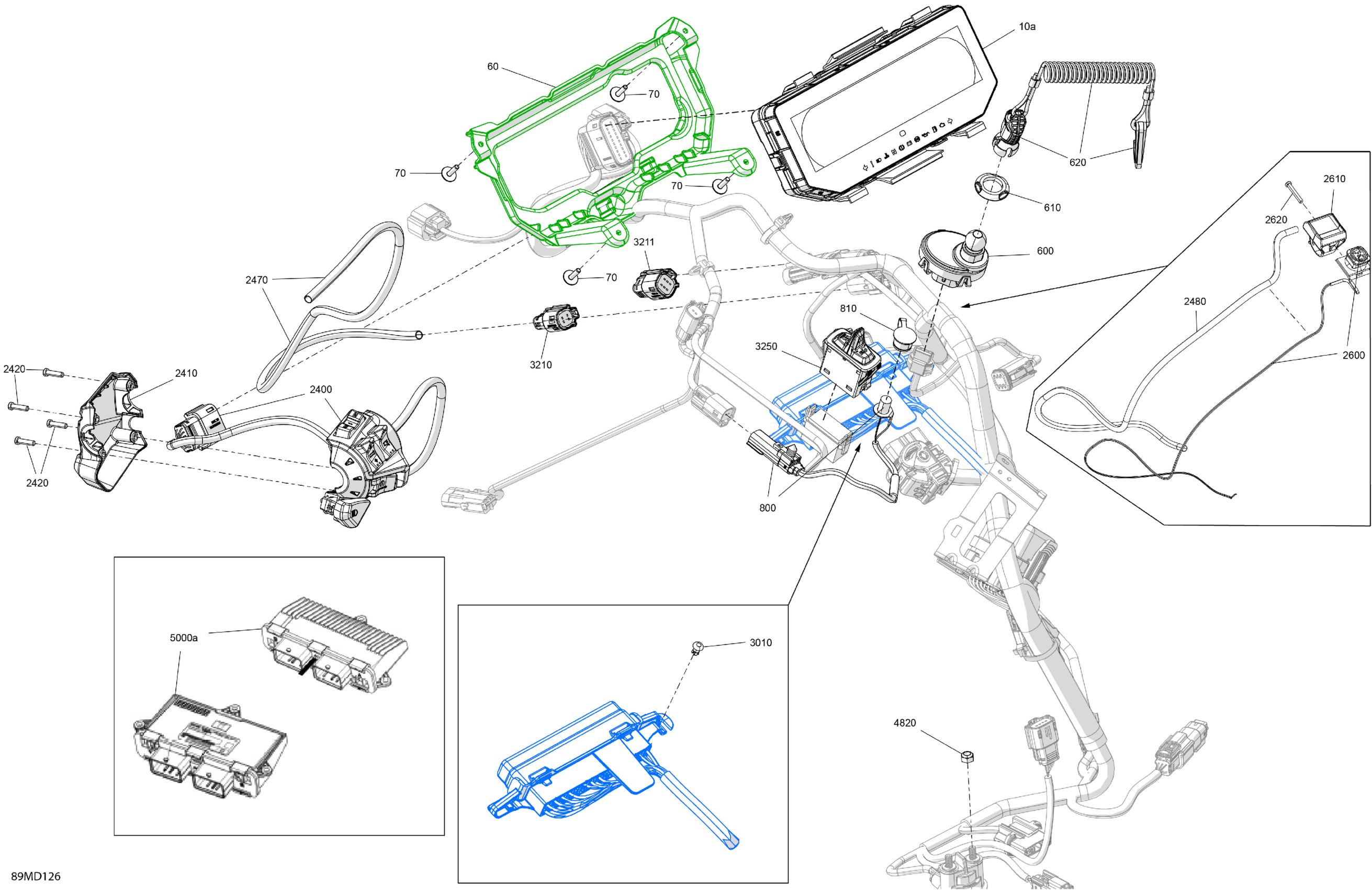

Ski-Doo EXPEDITION 900 ACE - SE - AERA - Deep Black - 154X20X1.5CST Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge Full Size Mono

515178227

$509.67

Gauge Support

515178965

$5.01

Screw M4 X 16

250000725

$3.30

600

Terminal DESS One Wire

515179305

$69.37

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

800

Heated Visor Wiring Harness

515178645

$35.04

810

Cap

572103300

$9.36

2400

LH Switch Housing

515178196

$258.93

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3010

Rivet

515177929

$2.06

3210

4 Circuits Female Housing

515178177

$11.54

3211

Coil Connector

515178202

$12.49

3250

Rocket Switch

515178501

$18.63

4820

Elastic Stop Nut M6

232561434

$1.78

5000a

Electronic Module Programmable

420666064

$794.00
