Partiron

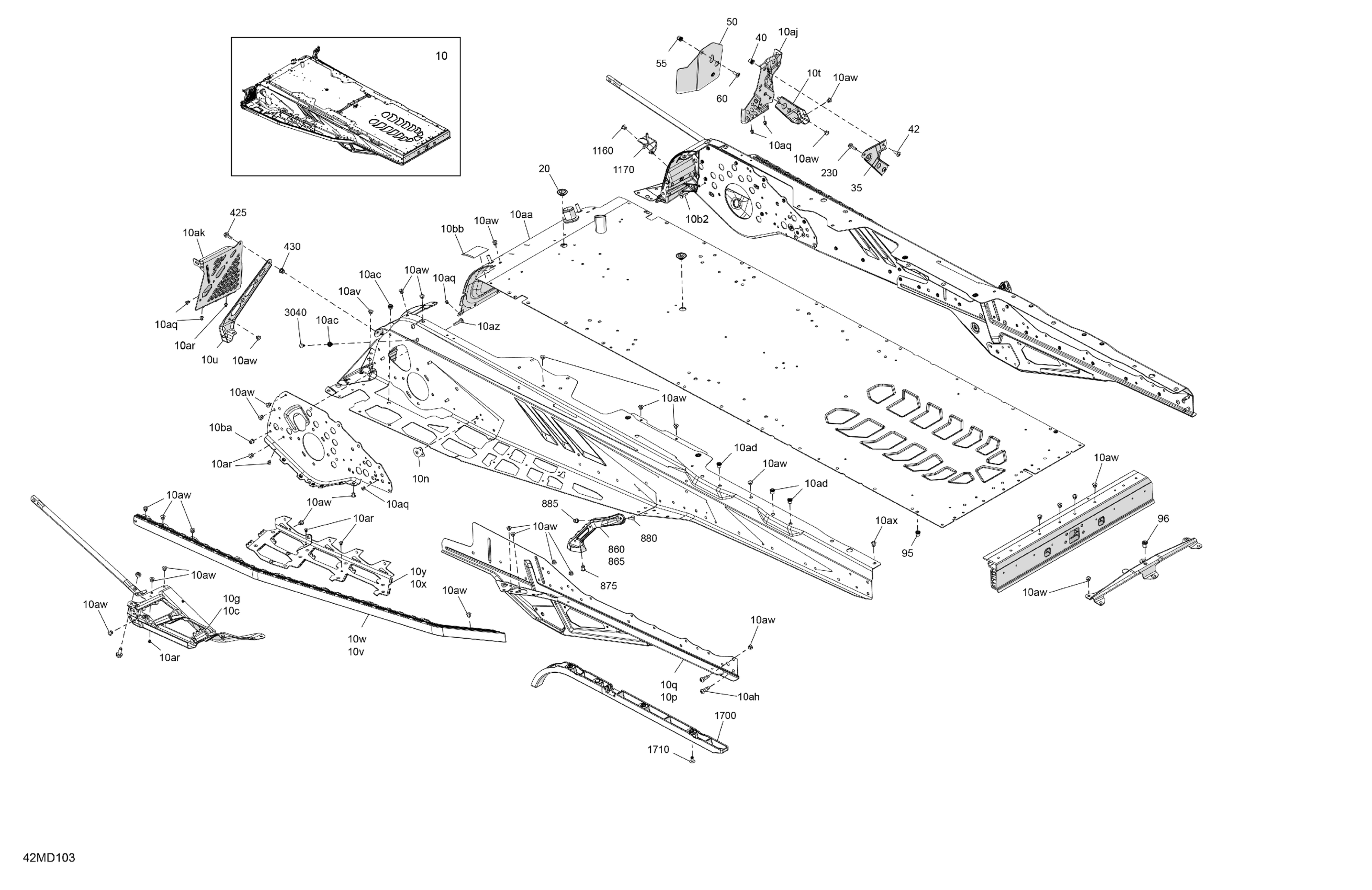

Ski-Doo EXPEDITION 900 ACE - LE - ARRD - Deep Black - 154X24X1.5CST Track, 2024 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10bb

415130748

$3.00

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10t

RH Footrest Reinforcement

518329789

$19.99

10u

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10v

RH Roller

518329648

$194.99

10w

LH Roller

518328452

$194.99

10x

Central Rear Tunnel Reinforcement

518334842

$35.99

10y

LH Central Reinforcement Tunnel

518334843

$35.99

10aa

Radiator Tunnel 154

518335121

$625.49

10ac

Clinch Nut M6 Hexsert

605636003

$4.23

10ad

Insert

293450275

$12.99

10ah

Torx Button Head Screw M8 X 25

250001151

$2.00

10aj

RH Footrest

518331822

$24.49

10ak

LH Footrest

518332977

$43.49

10aq

Avex Rivet

390909100

$0.30

10ar

Avex Rivet

390909200

$0.30

10av

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10aw

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10ax

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10az

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

10ba

Collar Huck Magna-Grip 6.4

293150149

$0.48

10bb

Aluminum foil

44110

Unavailable

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1160

Ornit Rivet 6,5 X 14.5

293150266

$2.40

1170

Muffler Support Ass'y

518334031

$21.99

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
