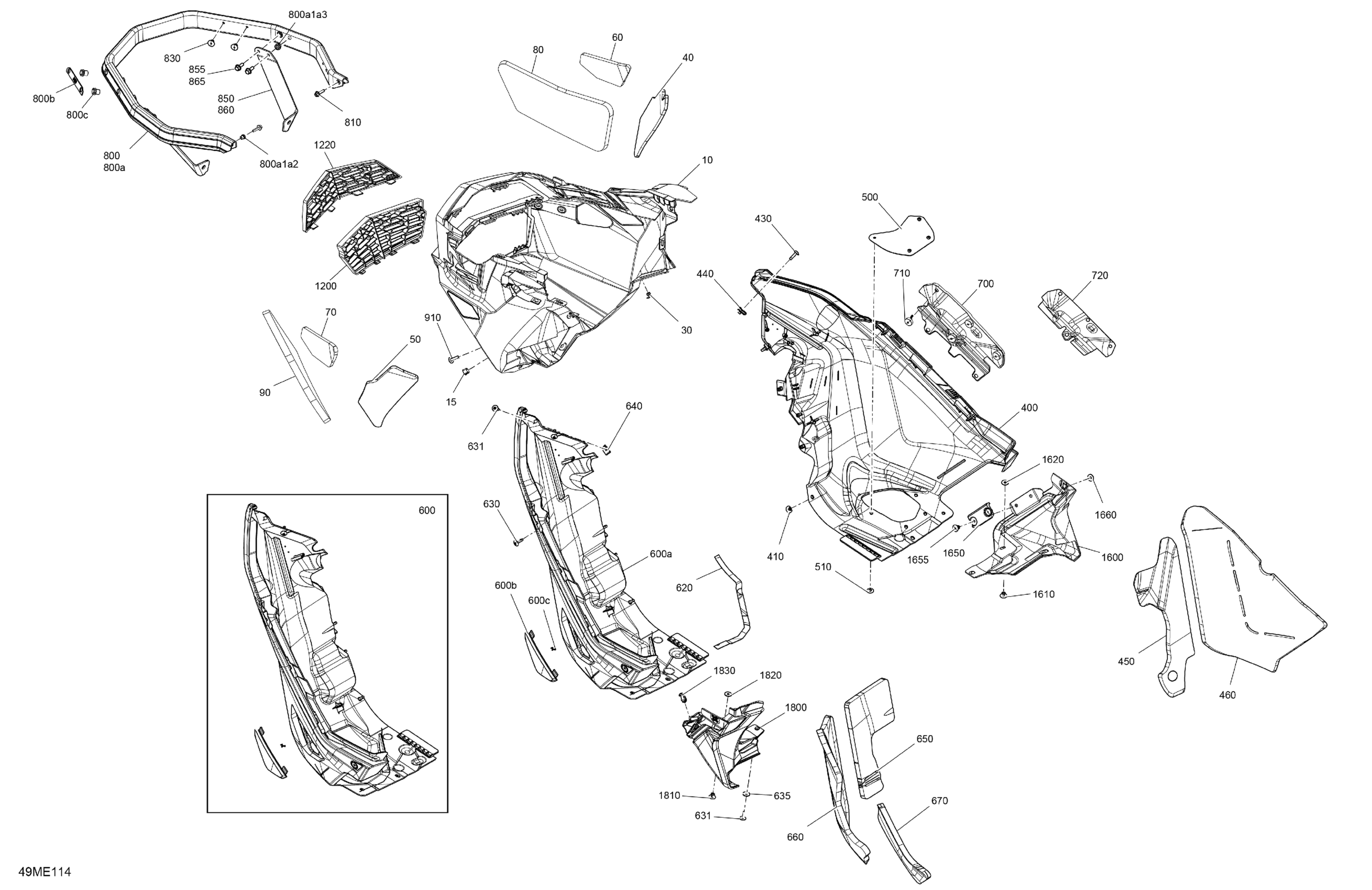

Ski-Doo North America - EXPEDITION - 850 E-TEC - SE - AGSB - Dusty Navy Satin - 154X20X1.5CST Track - 2025 07- Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$184.99

15

Plug

502008550

$2.49

30

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Front Central Bottom Pan Foam

502008308

$9.59

70

LH Front Central Bottom Pan Foam

502008309

$13.99

80

Bonded Foam

502008355

$19.49

90

Bonded Foam

502008356

$7.89

400

Deep Black, RH Bottom Pan

502008663

$139.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

500

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$134.99

600a

Deep Black, LH Bottom Pan

502008512

$99.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008752

$2.09

720

Reflective Sheet

502008156

$4.79

800

Liquid Titan, Front Bumper Ass'y | Includes 800 to 800c

502008377

$121.99

800a

Not Available As Spare Parts

XXX

Unavailable

800a1a2

Insert M5 X 0.8

502008379

Unavailable

800a1a3

Horn Bracket

502008380

Unavailable

800b

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$116.49

800c

Manta Green, Front Bumper

502008382

$116.49

810

Spartan Red, Front Bumper

502008383

$116.49

830

Noe Yellow, Front Bumper

502008384

$116.49

850

Platnum Silver, Front Bumper

502008385

$116.49

855

Spartan Red, Central Trim

502008386

$139.99

860

Neo Yellow, Central Trim

502008387

$12.99

865

Bumper

502008388

$116.99

910

Bumper

502008389

$195.99

1200

Bumper

502008390

Unavailable

1220

Upper Prefilter Grille

502008391

Unavailable

1600

Deep Black, RH Bottom Pan Panel

502008392

Unavailable

1610

Black, Pop Rivet 3/16 X ,550

502008393

Unavailable

1620

Liquid Titan, Front Bumper

502008394

Unavailable

1650

Platnum Silver, Front Bumper

502008395

$81.99

1655

Stopper This part replaces 502008396.

502008621

$1.99

1660

Foam Bottom Pan Rh Upper

502008397

$11.99

1800

Foam Bottom Pan Lh Upper

502008398

$8.59

1810

Foam Bottom Pan Rh Upper

502008399

$12.99

1820

Foam Bottom Pan Rh Lower

502008400

$12.99

1830

Foam Bottom Pan Lh Upper

502008401

$7.69
