Partiron

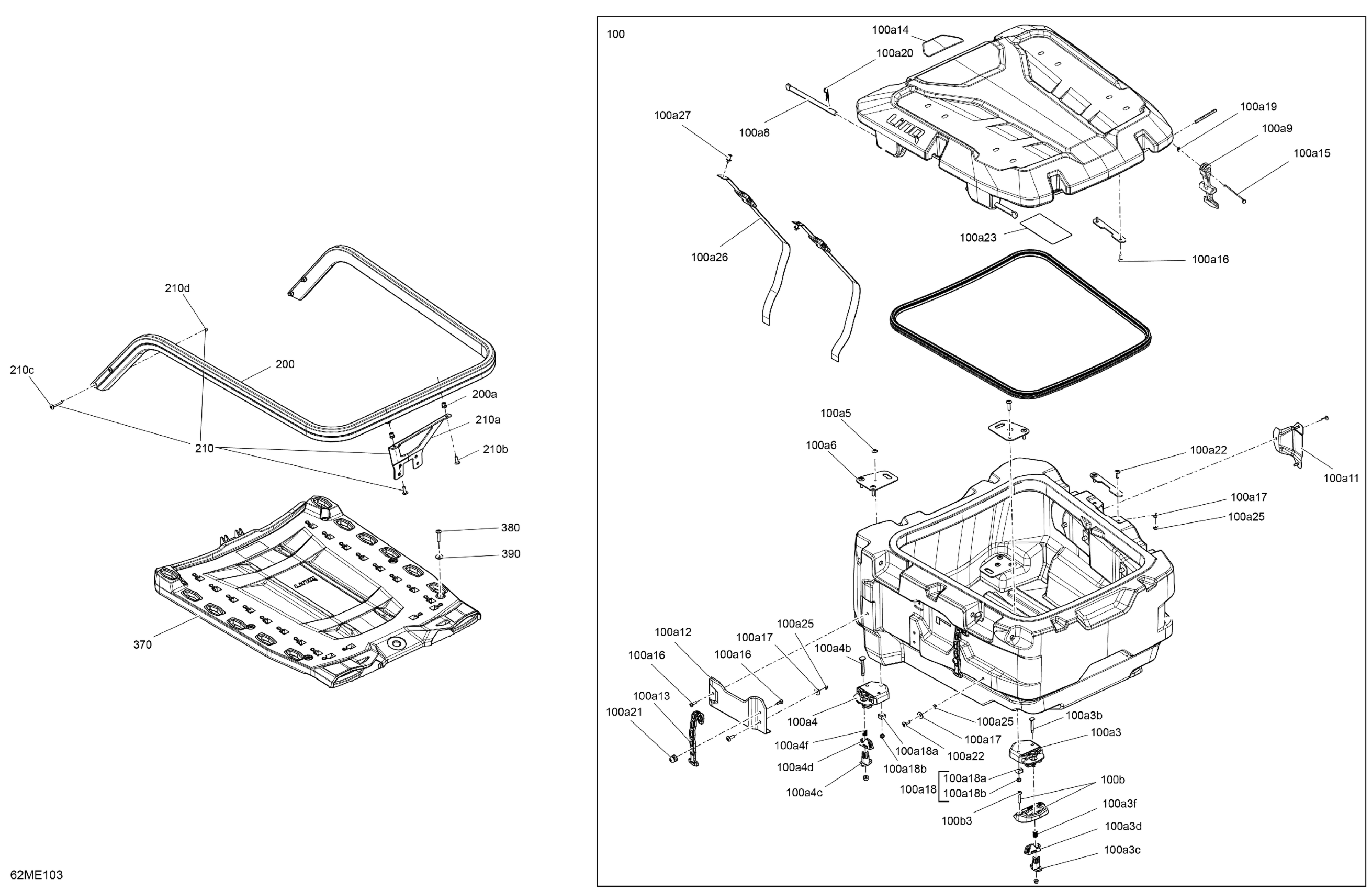

Ski-Doo EXPEDITION - 850 E-TEC - SE - AGSA - Deep Black - 154X20X1.8CST8 Track - 2025 Body - Cargo Diagram

#

Description
Price

100

CARGO BOX LINQ - Call your local BRP dealership | Includes 100 to 100b3

860201781

Unavailable

100a3

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$37.02

100a3b

Rod

511001138

$104.45

100a3c

RH Latch | Package Hunter

708200267

$3.09

100a3d

RH Lever

708200374

$3.25

100a3f

Spring | Package Hunter

708200263

Unavailable

100a4

Low Profile Linq Fastener | Includes 100a4 to 100a4f This part replaces 511001446.

511001826

$42.51

100a4b

Rod

511001138

$104.45

100a4c

LH Latch | Package Hunter

708200266

$3.09

100a4d

LH Lever | Package Hunter

708200373

$3.81

100a4f

Spring | Package Hunter

708200263

Unavailable

100a5

Torx Screw M6 X 25

250000758

$1.74

100a6

Plate

520001907

$18.63

100a8

Pivot

520002066

$18.63

100a9

Lid Latch

520003026

$6.67

100a11

Saw Support

520002074

$17.88

100a12

Axe Support

520002075

$17.88

100a13

Retaining Strap

520002076

$2.90

100a14

Warning Label

520002105

Unavailable

100a15

Rod

520002070

Unavailable

100a16

Torx Screw K50 X 16

250000720

$1.39

100a17

Stainless Steel Flat Washer

234062670

$1.74

100a18

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

100a18a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

100a18b

Hex. Elastic Stop Nut M6

232561600

$0.92

100a19

Push Nut

732610072

$1.72

100a20

Cotter Hairpin

520002080

$5.54

100a21

Retaining Rod

511001453

$13.55

100a22

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

100a23

Warning Label

520002102

Unavailable

100a25

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

100a26

Retaining Strap

520002162

$26.09

100a27

Rivet | Model-T3

293150067

$2.29

100b

Concorde Hardware | Includes 100b to 100b3

511001479

$76.84

100b3

Torx Truss Screw M6 X 30

250000843

$1.74

200

Luggage Rack | Includes 200 to 200a

511001368

$114.15

200a

Insert

293450275

$9.89

210

Luggage Rack Kit | Includes 210 to 210d

511001500

$41.76

210a

Rear Support Rack

511001266

$41.01

210b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

210c

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

210d

Elastic Stop Nut M6

232561434

$1.55

370

Multi Purpose Plate

511001145

$73.10

380

Torx Truss Screw M6 X 30

250000843

$1.74

390

Flat Washer M6, Stainless

250200150

$2.87
