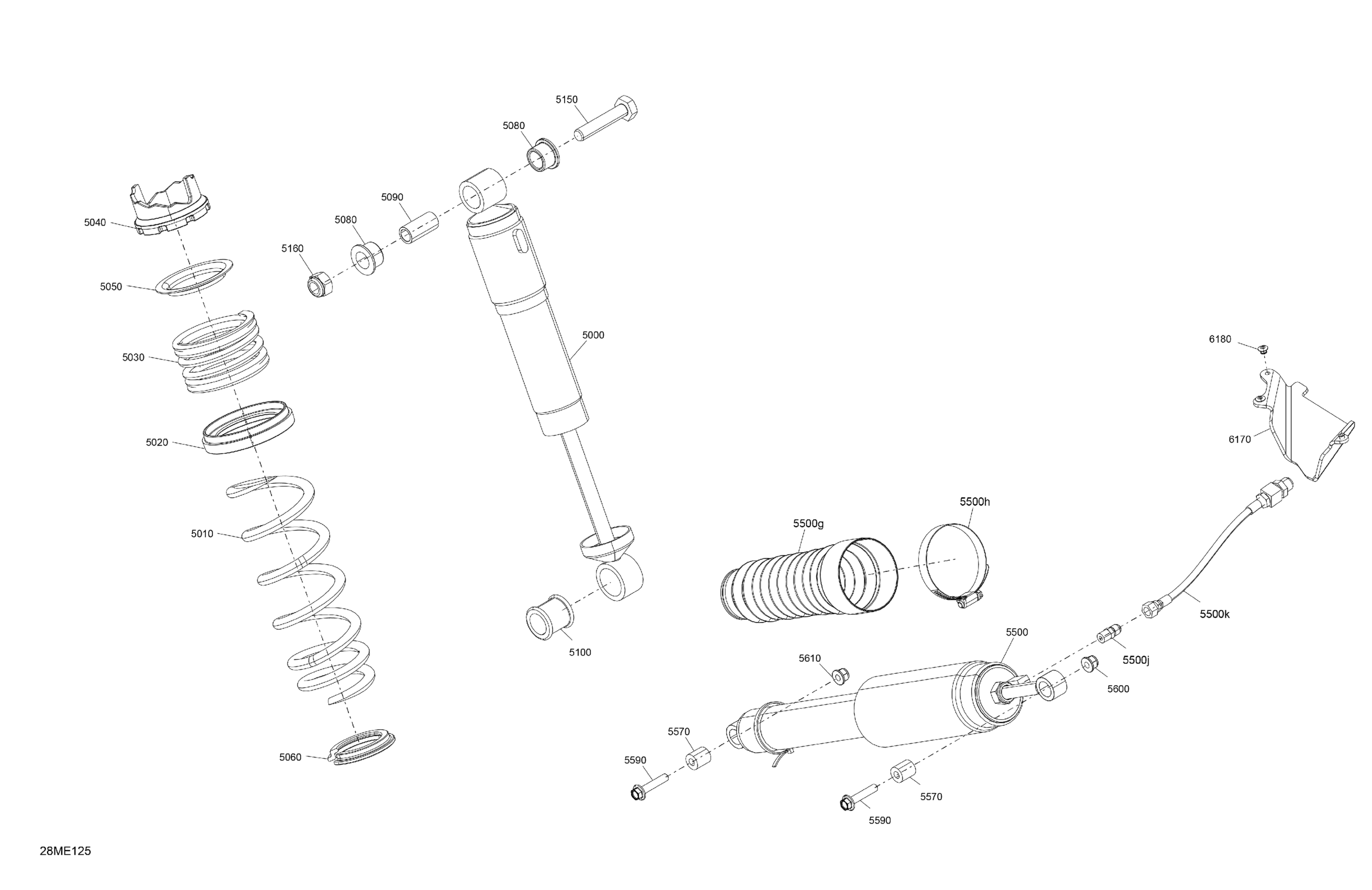

Ski-Doo North America - EXPEDITION - 850 E-TEC - SE - AGSA - Deep Black - 154X20X1.8CST8 Track - 2025 05- Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503192991

$248.99

5010

Deep Black, Spring (189mm) Long

503193160

$90.99

5020

Spring Spacer

503191281

$8.89

5030

Black, Spring (51mm) Short

503193837

$67.99

5040

Adjustment Cam

505073625

$12.99

5050

Spring Guide

503191872

$2.29

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock Ass'y | Includes 5500 to 5500k

503195082

$716.99

5500g

Protection Boot

570278300

$59.99

5500h

Tridon Clamp

293650064

$8.29

5500j

Male Pneumatic Connector

503191939

$44.49

5500k

Pneumatic Hose Ass'y

503195148

$129.99

5570

Bushing

414936000

$13.99

5590

Hex Flange Screw M8 X 40

207684056

$1.47

5600

Elastic Flange Nut M8

233281466

$1.01

5610

Elastic Flange Nut M8

233281466

$1.01

6170

Suspension Bracket

503195440

$19.99

6180

Rivet Ornit 4.8 X 14

293150289

$0.99
