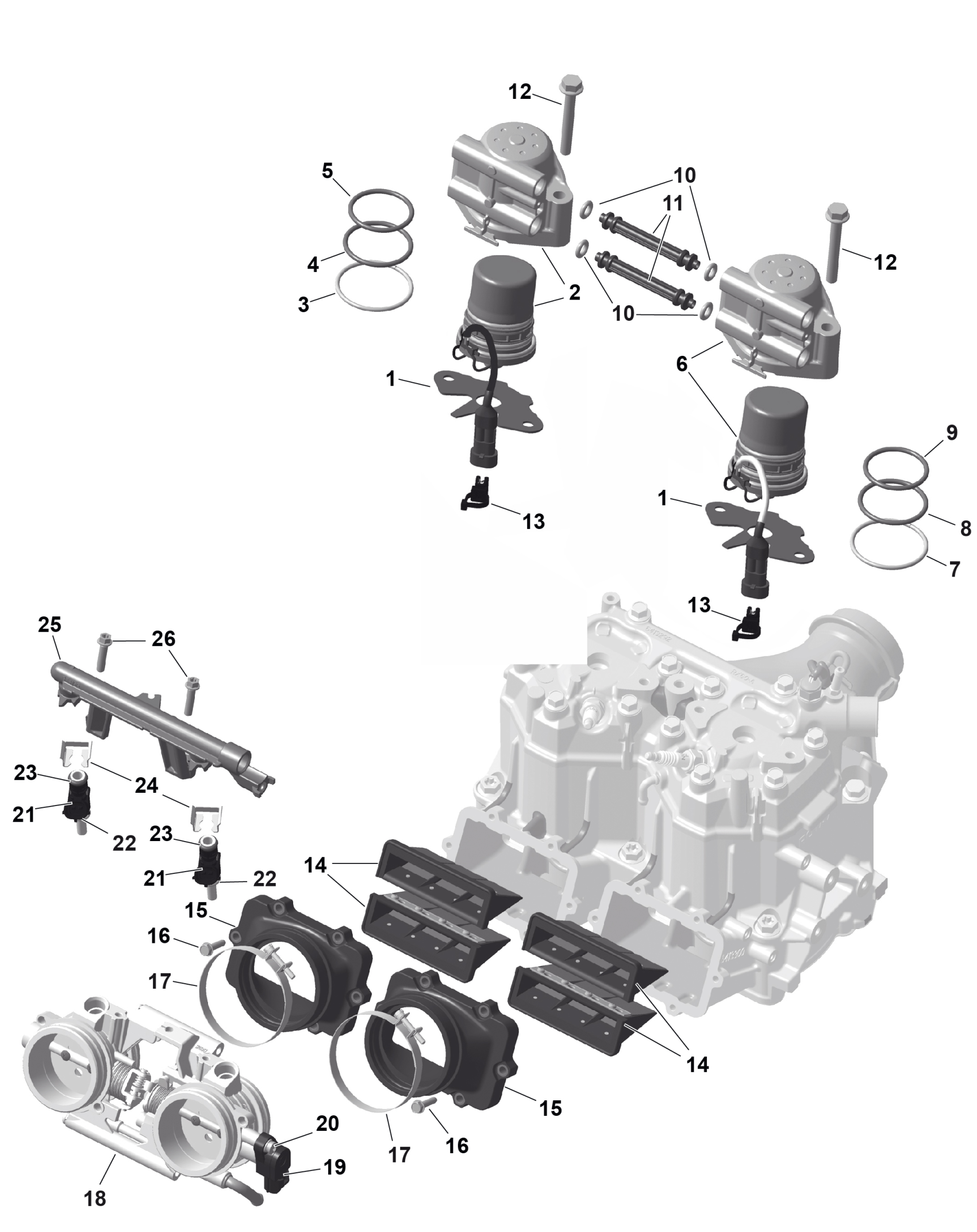

Ski-Doo EXPEDITION - 850 E-TEC - SE - AGSA - Deep Black - 154X20X1.8CST8 Track - 2025 ROTAX - Electronic Fuel Injection Diagram

#

Description
Price

1

Isolating Plate | Included in gasket kit

420430057

$4.99

2

Fuel Injector PTO

420874876

$339.99

3

Crush Ring

415129497

$7.99

4

O-Ring

415129498

$13.49

5

O-Ring

415129499

$7.39

6

Fuel Injector MAG | Includes no. 6-9

420874878

$339.99

7

Crush Ring

415129497

$7.99

8

O-Ring

415129498

$13.49

9

O-Ring

415129499

$7.39

10

O-Ring

420430775

$4.29

11

Tube

420874190

$5.39

12

Hex Screw M9 X 60

420840097

$2.11

13

Tie Rap 200 X 4.6

420951652

$7.65

14

Reed Valve Ass'y

420924798

$42.99

15

Intake Socket

420867390

$111.49

16

Tapping Screw M5 X 20

420841556

$1.69

17

Clamp

420251208

$15.27

18

Throttle Body Socket | Includes no. 18-20

420685754

$370.99

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$70.99

20

Not Available As Spare Parts

XXX

Unavailable

21

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

22

O-Ring

420431890

$7.49

23

O-Ring

420631220

$14.28

24

Injector Clip

420853030

$3.09

25

Fuel Rail

420874155

$24.49

26

Torx Flange Screw M6 X 25

420440234

$3.06
