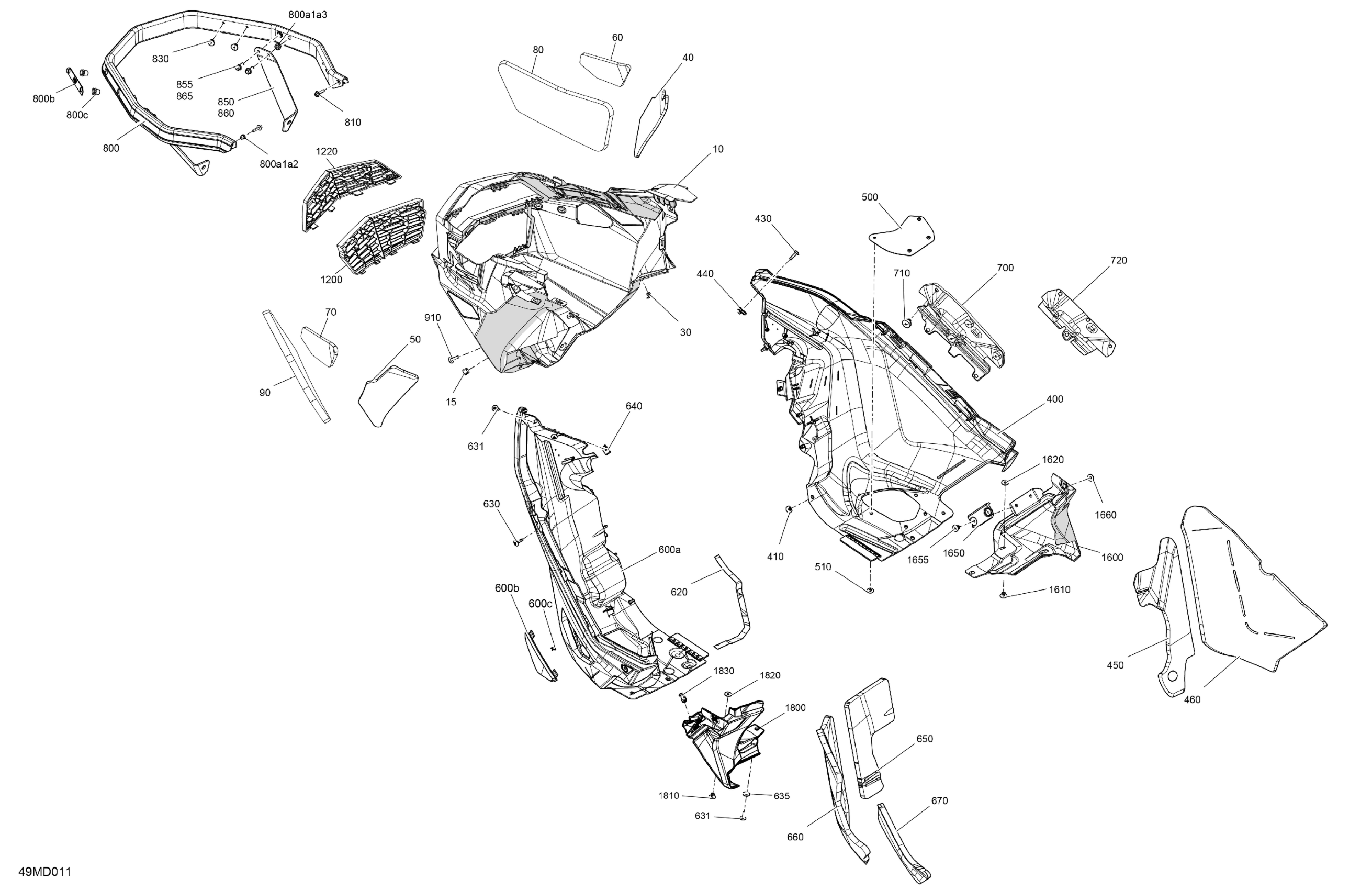

Ski-Doo EXPEDITION 850 E-TEC - SE - AGRG - Tundra Green - 154X20X1.5CST Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$166.39

15

Plug

502008550

$2.59

30

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

40

RH Upper Bottom Pan Foam

502007788

$15.64

50

LH Upper Bottom Pan Foam

502007789

$15.64

60

RH Front Central Bottom Pan Foam

502008308

$7.31

70

LH Front Central Bottom Pan Foam

502008309

$11.55

80

Bonded Foam

502008355

$17.13

90

Bonded Foam

502008356

$6.57

400

Deep Black, RH Bottom Pan

502008663

$124.60

410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

430

Torx Truss M5 X 20

250000586

$4.15

440

Panel Nut M5 X 0.8

250000958

$4.00

450

RH Front Bottom Pan Foam

502007831

$10.88

460

RH Rear Bottom Pan Foam

502008170

$14.72

500

Plate

502007868

$1.96

510

Pop Rivet 3/16"

293150103

$0.52

600a

Deep Black, LH Bottom Pan

502008512

$91.76

600b

Bottom Pan Door

502007676

$35.79

600c

Hairpin Cotter

269800431

$0.97

620

Gasket, Neoprene 2000Mm Long

219704476

$14.51

630

Screw Torx M5 X 20

250001232

$1.31

631

Torx Truss M5 X 20

250000586

$4.15

635

Washer M5

250200025

$0.70

640

Panel Nut M5 X 0.8

250000958

$4.00

650

LH Bottom Pan Upper Foam

502007549

$11.55

660

LH Front Bottom Pan Foam

502008334

$10.61

670

LH Rear Bottom Pan Foam

502008173

$2.06

700

Heat Shield

502008087

$5.91

710

Stopper

502008610

$1.88

720

Reflective Sheet

502008156

$4.40

800

Platinum Silver, Front Bumper Ass'y | Includes 800 to 800c

502008595

$119.37

800a1a2

Insert M5 X 0.8

293450268

$1.90

800a1a3

Insert

293450398

$3.81

800b

Bumper Trim

502007880

$27.58

800c

Insert

293450398

$3.81

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

830

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

850

RH Bumper Reinforcement

502007762

$10.79

855

Hex. Flange Screw M6 X 16

207661644

$0.70

860

LH Bumper Reinforcement

502007763

$10.79

865

Hex. Flange Screw M6 X 16

207661644

$0.70

910

Torx Screw M6 X 25

250000758

$2.00

1200

Lower Prefilter Grille

502007979

$26.09

1220

Upper Prefilter Grille

502007980

$22.36

1600

Deep Black, RH Bottom Pan Panel

502007716

$48.48

1610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1620

Washer

517124300

$0.18

1650

Stopper

502007757

$4.21

1655

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1660

Washer

517124300

$0.18

1800

Deep Black, LH Bottom Pan Panel

502007717

$48.48

1810

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1820

Washer

517124300

$0.18

1830

Tuflok Plastic Rivet

293150230

$1.39
