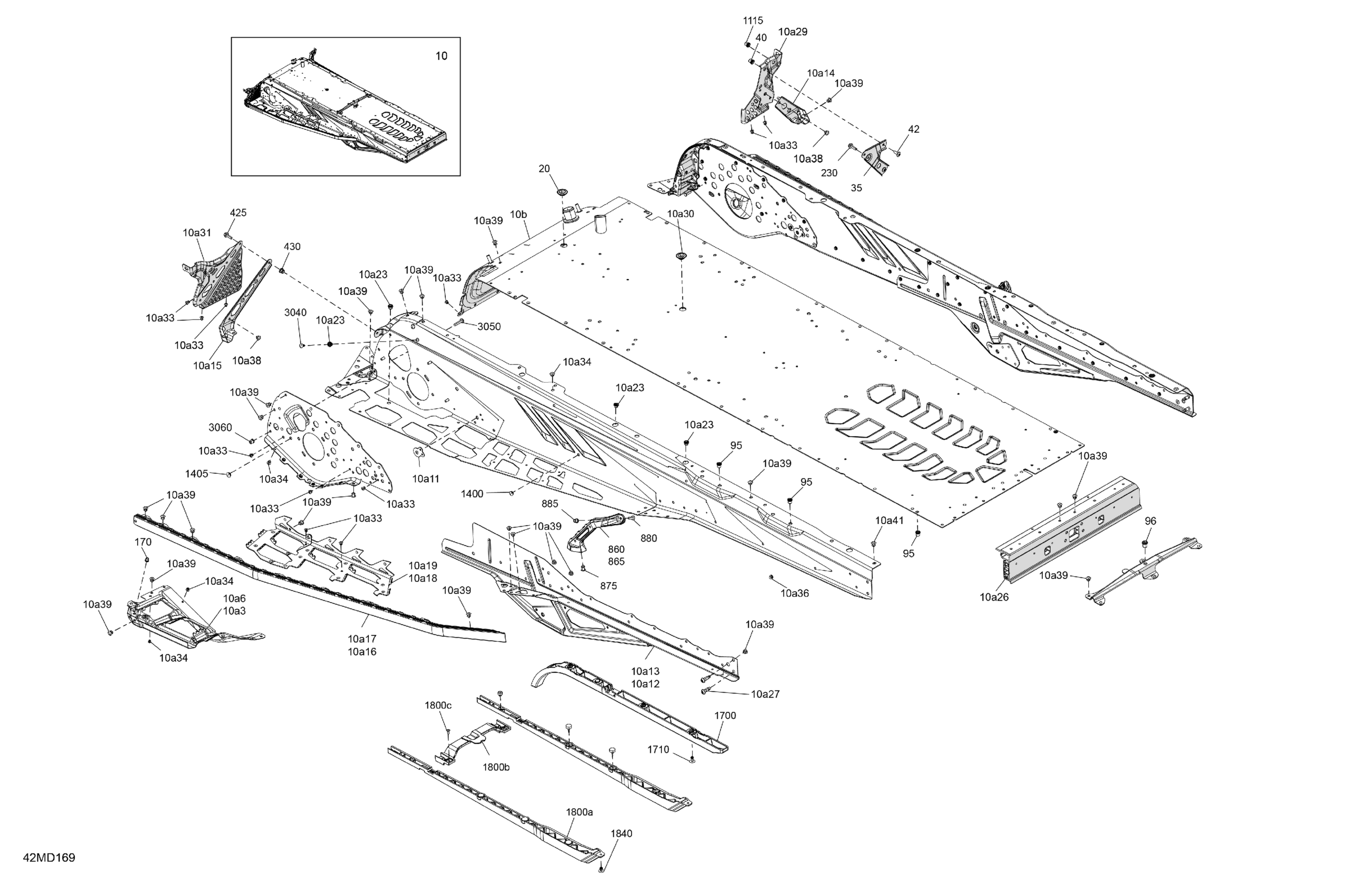

Ski-Doo North America - EXPEDITION 850 E-TEC - SE - AGRC - Deep Black - 154X20X1.5ICST Track, 2024 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10a6

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10a11

Front Suspension Arm Reinforcement

518335959

$4.19

10a12

RH Rear Suspension Support

518333792

$109.99

10a13

LH Rear Suspension Support

518333791

$109.99

10a14

RH Footrest Reinforcement

518329789

$19.99

10a15

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a16

RH Roller

518329648

$194.99

10a17

LH Roller

518328452

$194.99

10a18

Central Rear Tunnel Reinforcement

518334842

$35.99

10a19

LH Central Reinforcement Tunnel

518334843

$35.99

10a23

Threaded Insert M6 X 1.0

250100242

Unavailable

10a26

Rear Cap

518332315

$72.99

10a27

Torx Button Head Screw M8 X 25

250001151

$2.00

10a29

RH Footrest

518331822

$24.49

10a30

Black, Plug

293730052

$9.19

10a31

LH Footrest

518332978

$43.99

10a33

Rivet Avibulb 3/16

293150203

$2.09

10a34

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a36

Henrob Rivet

293150245

$1.69

10a38

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a39

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a41

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10b

Radiator Tunnel Ass'y 154

518332622

$709.99

Black, Plug

293730052

$9.19

RH Stirrup Reinforcement

518331727

$19.99

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Insert

293450275

$12.99

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1115

Insert

293450275

$12.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1800a

Rear Protector

518329979

$9.23

1800b

Central Protective Structure

518333936

$3.69

1800c

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3050

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48
