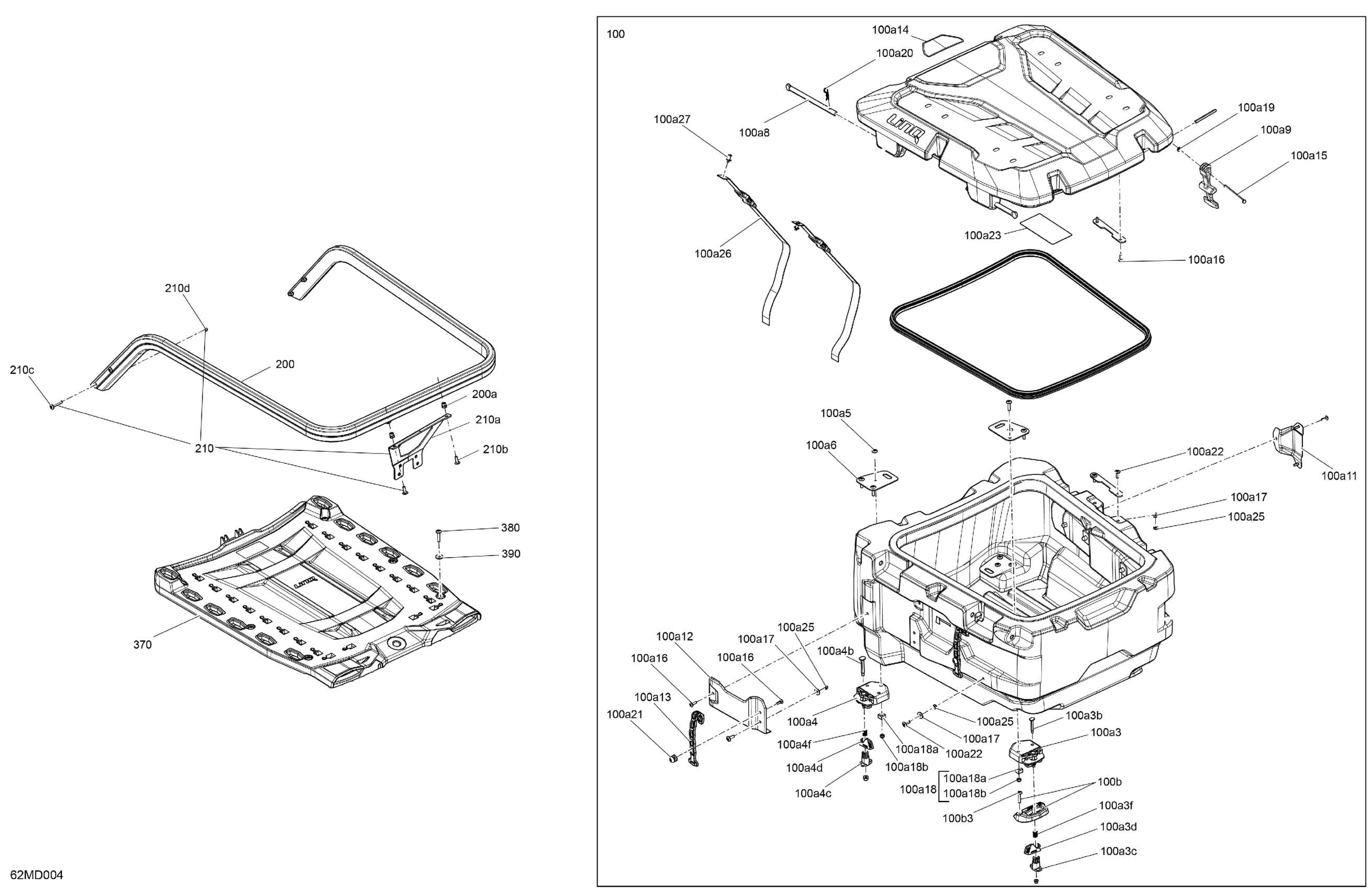

Ski-Doo North America - EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 07- Body - Cargo Diagram

Description

Price

100

CARGO BOX LINQ - Call your local BRP dealership | Includes 100 to 100b3

860201781

$629.99

100a3

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$42.49

100a3b

Rod

511001138

$110.99

100a3c

RH Latch | Package Hunter

708200267

$3.01

100a3d

RH Lever

708200374

$4.02

100a3f

Spring | Package Hunter

708200263

Unavailable

100a4

Low Profile Linq Fastener | Includes 100a4 to 100a4f This part replaces 511001446.

511001826

$42.49

100a4b

Rod

511001138

$110.99

100a4c

LH Latch | Package Hunter

708200266

$3.01

100a4d

LH Lever | Package Hunter

708200373

$4.02

100a4f

Spring | Package Hunter

708200263

Unavailable

100a5

Torx Screw M6 X 25

250000758

$2.11

100a6

Plate

520001907

$20.49

100a8

Pivot

520002066

$20.49

100a9

Lid Latch

520003026

$7.99

100a11

Saw Support

520002074

$19.49

100a12

Axe Support

520002075

$19.49

100a13

Retaining Strap

520002076

$3.06

100a14

Warning Label

520002105

Unavailable

100a15

Rod

520002070

$14.30

100a16

Torx Screw K50 X 16

250000720

$1.69

100a17

Stainless Steel Flat Washer

234062670

$2.11

100a18

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

100a18a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

100a18b

Hex. Elastic Stop Nut M6

232561600

$1.15

100a19

Push Nut

732610072

$2.19

100a20

Cotter Hairpin

520002080

$6.09

100a21

Retaining Rod

511001453

$14.30

100a22

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

100a23

Warning Label

520002102

Unavailable

100a25

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

100a26

Retaining Strap

520002162

$27.49

100a27

Rivet | Model-T3

293150067

$2.89

100b

Concorde Hardware | Includes 100b to 100b3

511001479

$81.49

100b3

Torx Truss Screw M6 X 30

250000843

$2.11

200

Luggage Rack | Includes 200 to 200a

511001368

$121.99

200a

Insert

293450275

$12.99

210

Luggage Rack Kit | Includes 210 to 210d

511001500

$41.49

210a

Rear Support Rack

511001266

$44.99

210b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

210c

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

210d

Elastic Stop Nut M6

232561434

$1.99

370

Multi Purpose Plate

511001145

$79.99

380

Torx Truss Screw M6 X 30

250000843

$2.11

390

Flat washer M6

250200164

$1.01
