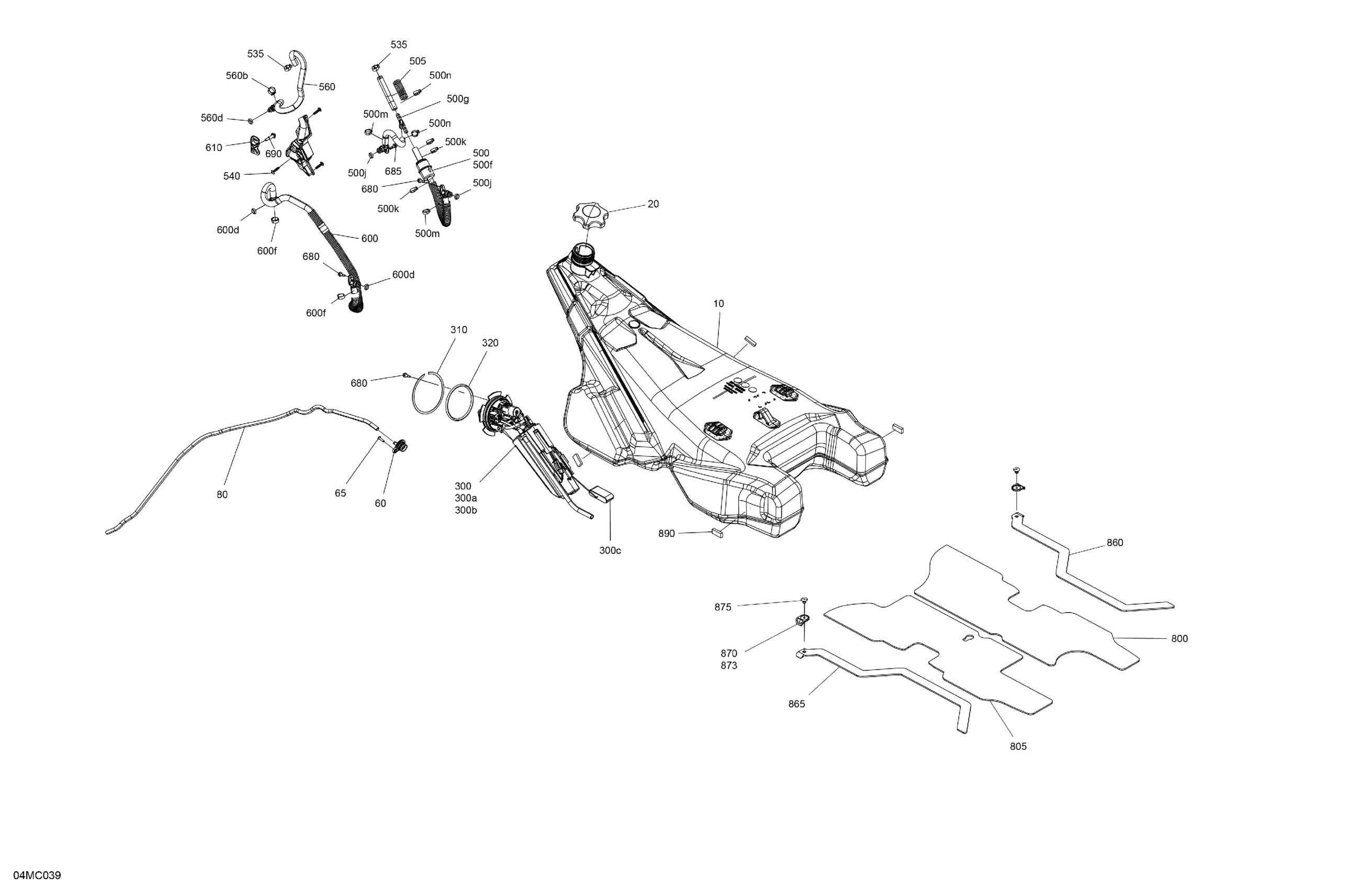

Ski-Doo North America - EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

513034141

$349.99

Fuel Tank Cap

513033860

$24.49

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Hose 5.7MM - 630MM

219704539

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$259.99

300a

Canister

415130507

$85.99

300b

Filter

415130508

$41.49

300c

Fuel Level Sensor

415130727

$149.99

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500n

513034120

$121.99

500f

Fuel Filter

513034047

$21.99

500g

Y Fitting

513034150

$6.25

500j

O-Ring

513033668

$10.99

500k

Crimp Clamp, 15.3-706R

293650047

$3.29

500m

Crimp Clamp

293650053

$3.09

500n

Oetiker Clamp

293650125

$3.29

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034151

$80.49

600d

O-Ring

513033668

$10.99

600f

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Socket Head Screw M5 X 28 S.Grip

250001251

$7.51

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

Retainer Plate

513033917

$0.57

873

Retainer Plate

513033917

$0.57

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

890

Tank Guard

513034038

$4.39
