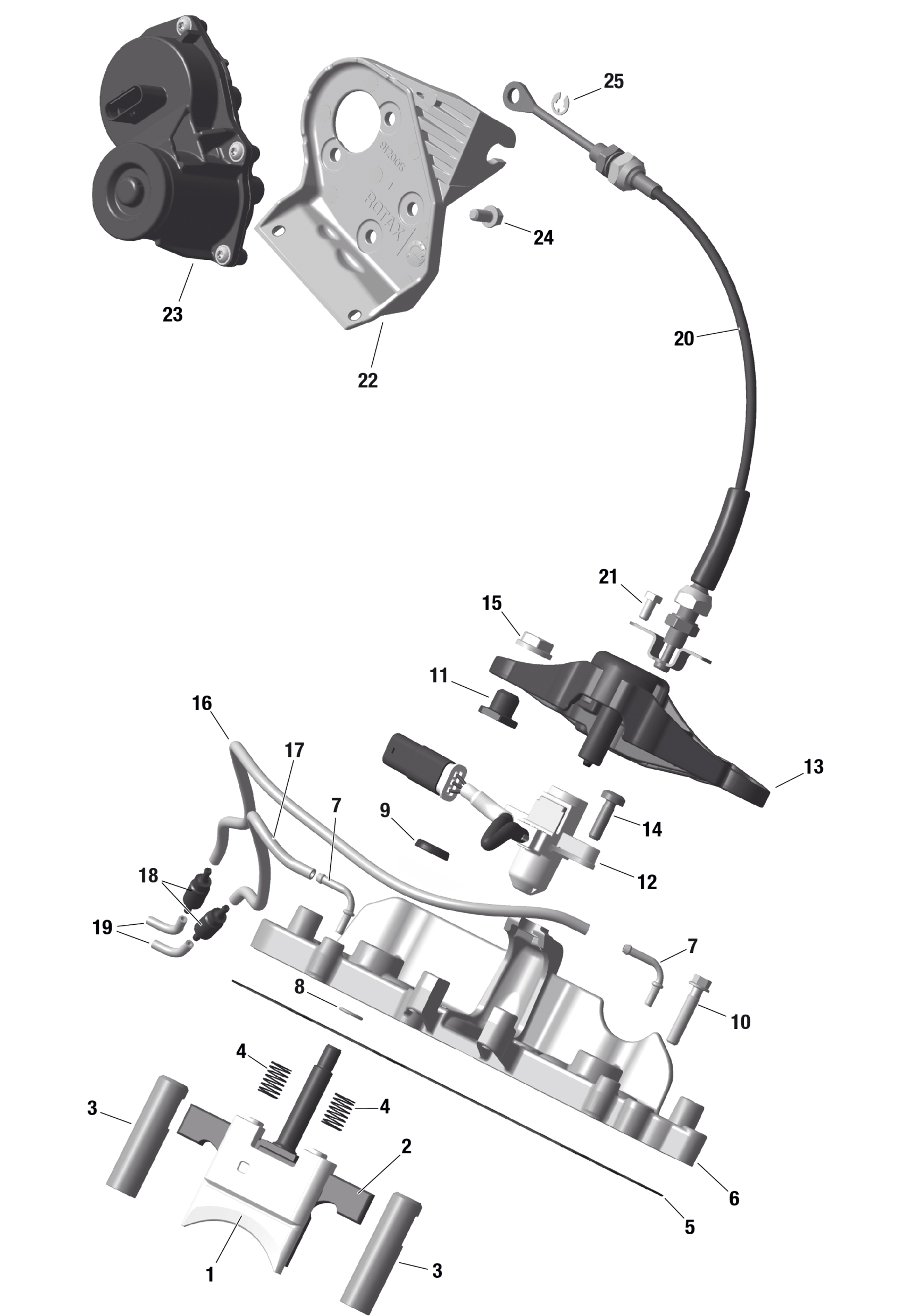

Ski-Doo EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 ROTAX - RAVE Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954051

$21.99

2

Lower Exhaust Valve

420954054

$35.99

3

Exhaust Valve

420954041

$12.49

4

Spring

420238558

$5.39

5

Valve Rod Housing Gasket

420430037

$8.89

6

Valve Housing | Includes no. 6-7

420954063

$94.49

7

Fitting 90D

420924053

$10.33

8

O-Ring

420950950

$1.01

9

Oil Seal | Included in gasket kit

420950732

$9.27

10

Torx Flange Screw M6 X 30

420440647

$2.00

11

Collar Nut M8

420942331

$4.44

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

13

Valve Bar

420855290

Unavailable

14

Torx Flange Screw M6 X 20

420441386

$2.11

15

Nut M12 X 1.5

420942190

$14.22

16

Oil Line 385MM

420201564

$7.41

17

Oil Line 385MM

420201564

$7.41

18

Check Valve Ass’y

420956515

$8.59

19

Oil Line 385MM

420201564

$7.41

20

Bowden Cable Ass'y

420997033

$121.49

21

Allen Screw M5 X 10

420240692

$1.69

22

Mounting Bracket

420912005

$20.99

23

Servo Motor Ass'y

420889432

$329.99

24

Hex. Flange Screw M6 X 12

420440149

$2.11

25

Retaining Ring

420945710

$0.50
