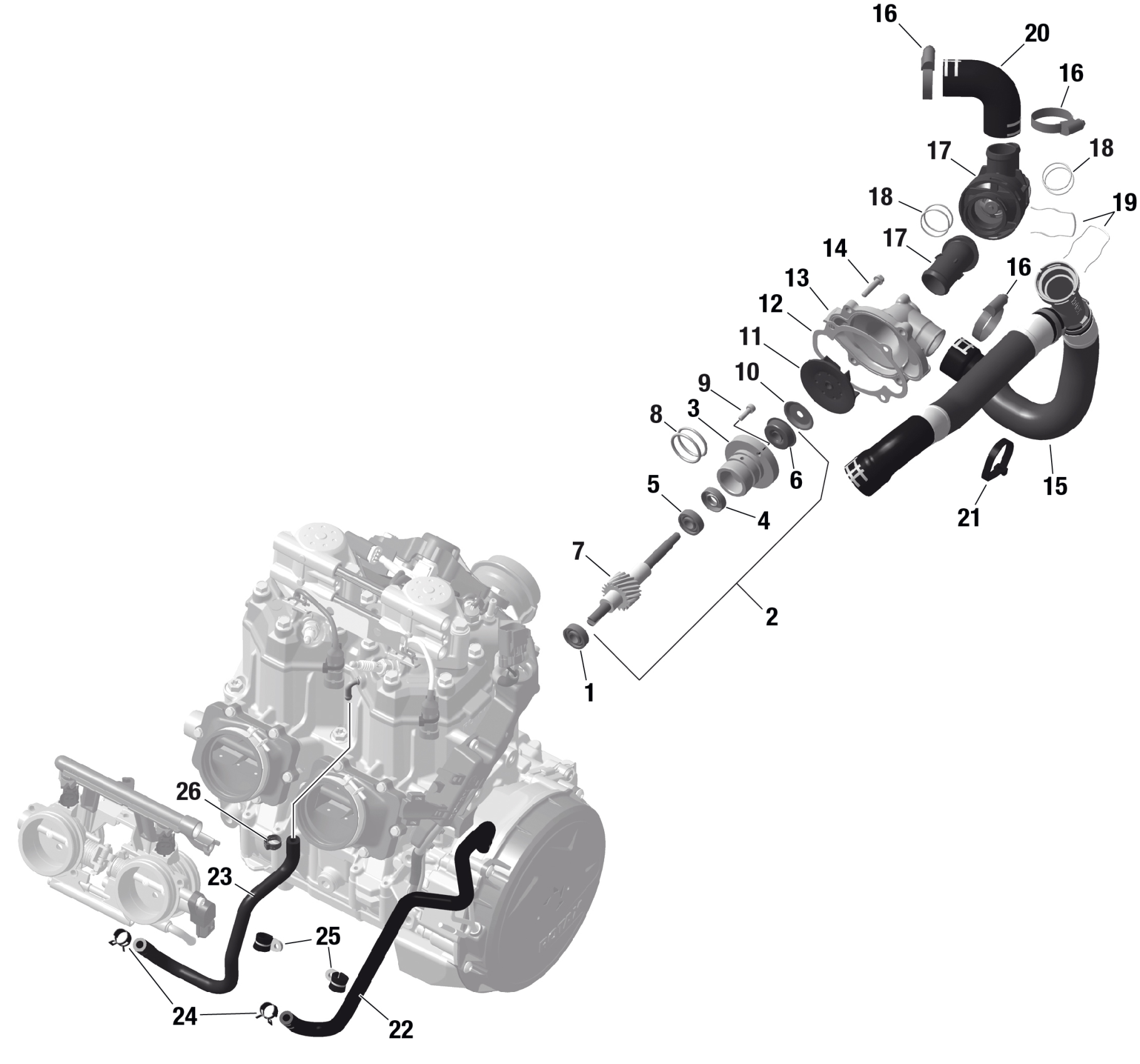

Ski-Doo EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 ROTAX - Engine Cooling - NA Diagram

Description

Price

Ball Bearing

420232100

$20.99

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$291.49

Step Collar

420847933

$38.99

Oil Seal

420230198

$15.89

Ball Bearing

420232100

$20.99

Rotary Seal

420650371

$43.49

Water Pump Shaft

420837681

Unavailable

O-Ring

420950890

$4.44

Allen Screw M5 x 16

420840514

$1.90

Cover Washer

420944035

$5.39

Impeller | Except SHOT

420922808

$37.99

Gasket Housing This part replaces 420430053.

420430054

$8.57

Waterpump Housing | Except SHOT

420822286

$62.49

Torx Flange Screw M6 X 25

420440234

$3.06

Molded Hose This part replaces 420822803.

420822805

$73.99

Clamp 26-38MM

420951120

$4.23

Thermostat Housing | Includes 17 to 18

420822836

$74.99

O-Ring

420430062

$2.11

Spring Clip

420939344

$2.11

Return Hose

420822820

$11.60

Locking Tie 175 X 4 MM

420651817

$1.05

Molded Hose

420201516

$11.60

Molded Hose

420201512

$11.60

Clamp

420853511

$7.51

Clamp

420851250

$10.33

Clamp

420851458

$7.41
