Partiron

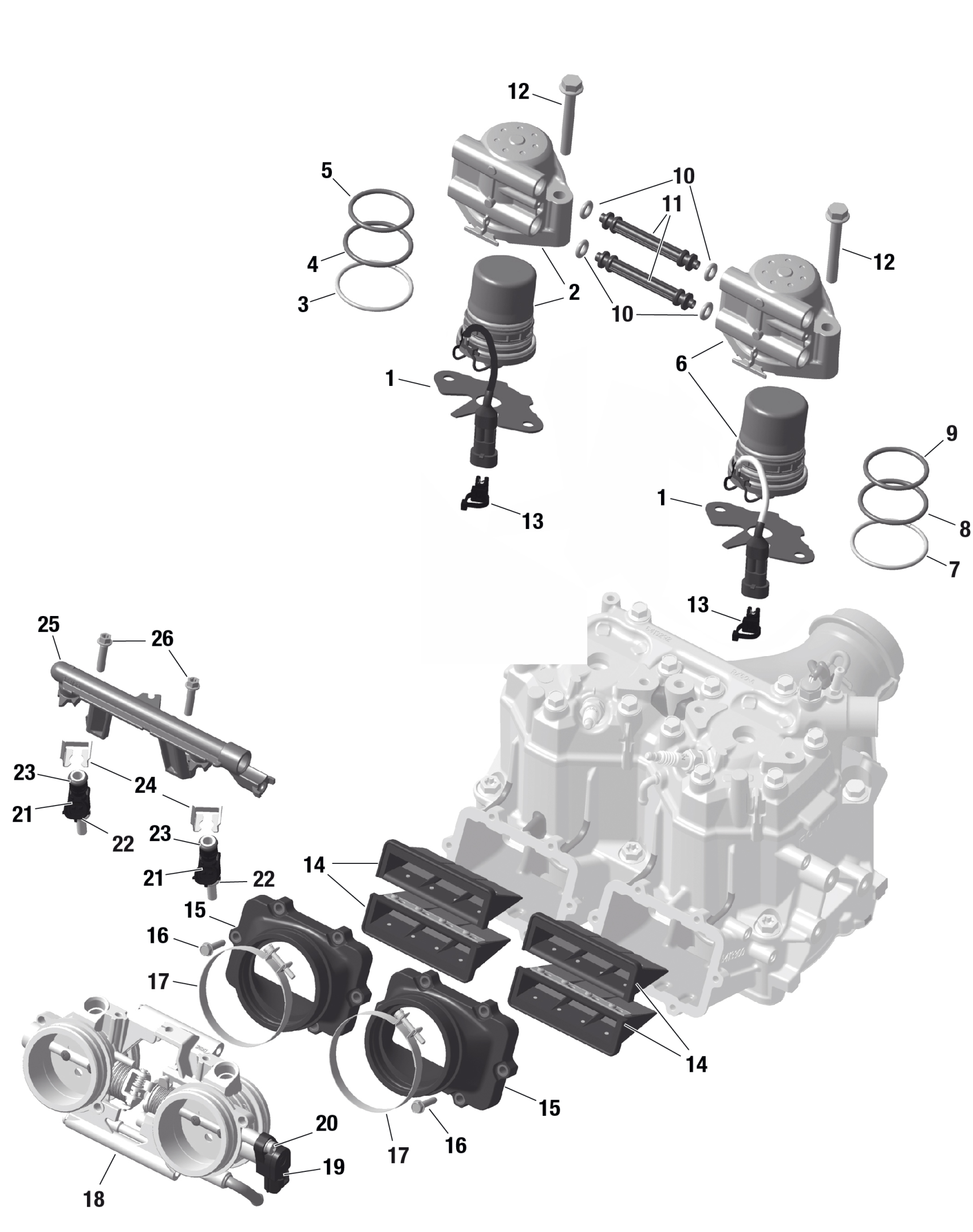

Ski-Doo EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 ROTAX - Electronic Fuel Injection Diagram

#

Description
Price

1

Isolating Plate | Included in gasket kit

420430057

$4.60

2

Fuel Injector PTO

420874876

$339.99

3

Crush Ring

415129497

$7.38

4

O-Ring

415129498

$12.51

5

O-Ring

415129499

$6.82

6

Fuel Injector MAG | Includes no. 6-9

420874878

$339.99

7

Crush Ring

415129497

$7.38

8

O-Ring

415129498

$12.51

9

O-Ring

415129499

$6.82

10

O-Ring

420430775

$3.38

11

Tube

420874190

$5.22

12

Hex Screw M9 X 60

420840097

$2.05

13

Tie Rap 200 X 4.6

420951652

$6.26

14

Reed Valve Ass'y

420924798

$39.20

15

Intake Socket

420867390

$109.20

16

Tapping Screw M5 X 20

420841556

$1.66

17

Clamp

420251208

$13.51

18

Throttle Body Socket | Includes no. 18-20

420685754

$355.35

19

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$66.89

20

Not Available As Spare Parts

XXX

Unavailable

21

Injection Valve Ass'y | Includes 18 to 20

420874887

$166.24

22

O-Ring

420431890

$4.95

23

O-Ring

420430775

$3.38

24

Injector Clip

420853030

$2.46

25

Fuel Rail

420874155

$23.05

26

Torx Flange Screw M6 X 25

420440234

$3.00
