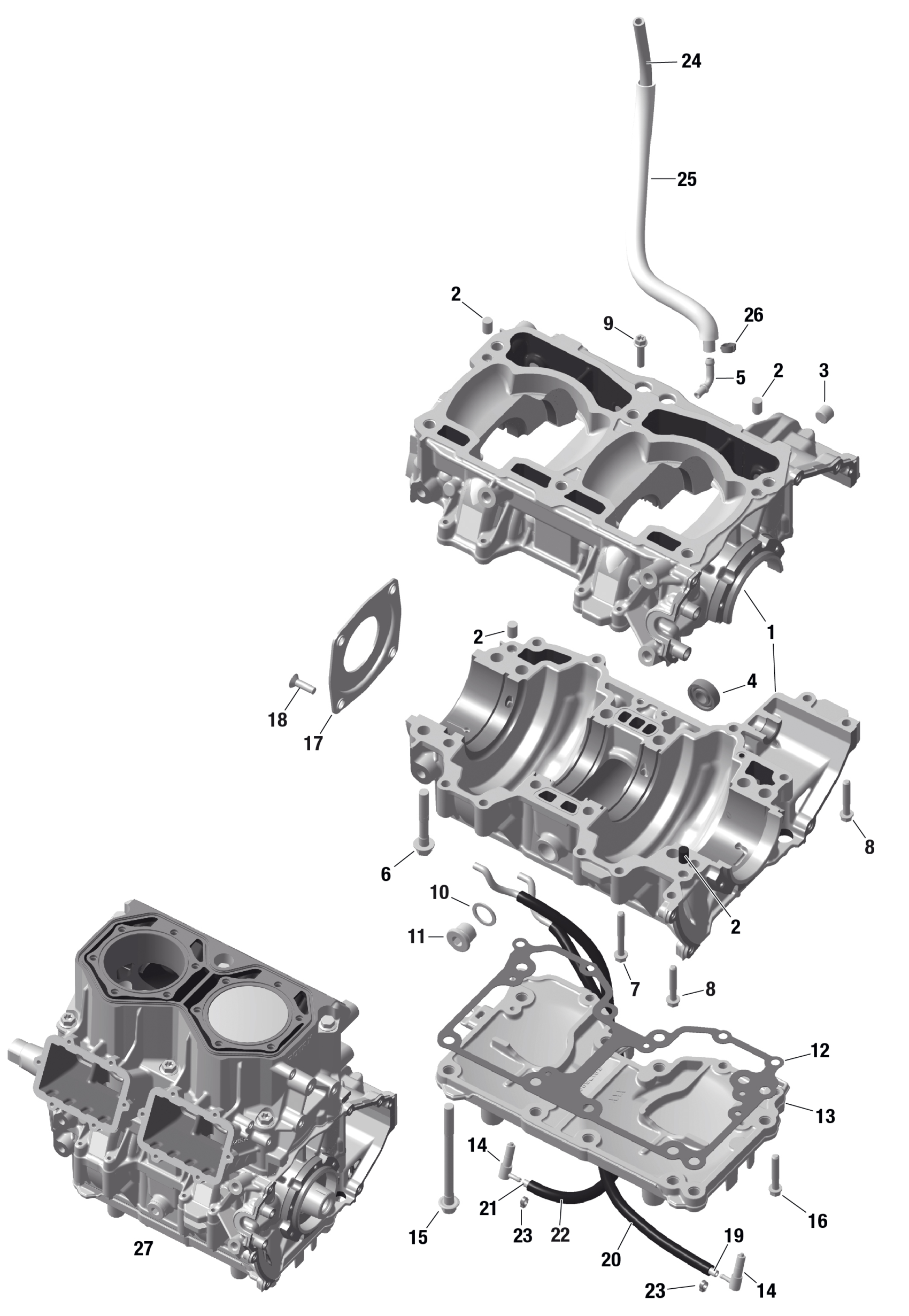

Ski-Doo EXPEDITION 850 E-TEC - SE - AGRA - Deep Black - 154X20X1.5CST Track, 2024 ROTAX - Crankcase Diagram

Crankcase Ass'y | Includes no. 1-6

420894362

$1,158.93

Center Pin 8 X 12

420632010

$3.52

Plug Screw M12x1,5

420840658

$7.09

Ball Bearing

420232100

$17.88

Fittin 90D

420924802

$3.13

Hex. Screw M8 X 56.5

420941627

$8.09

Torx Flange Screw M6 X 45

420440324

$0.93

Torx Flange Screw M6 X 35

420440274

$0.96

Torx Flange Screw M6 X 25

420440234

$2.91

O-Ring

420430622

$4.15

Plug Screw

420640457

$14.10

Engine Support Gasket | Included in gasket kit

420430072

$23.10

Engine Support

420812688

$100.72

Check Valve

420956511

$32.81

Screw M8x105

420941518

$10.13

Torx Flange Screw M6 X 35

420440274

$0.96

Oil Seal Cover

420812422

$14.10

Screw M6 X 20

420941436

$2.72

Oil Line 585 mm This part replaces 420201921.

420201928

$5.06

Tube 390MM

420460042

$8.09

Oil Line 585 mm This part replaces 420201921.

420201928

$5.06

Tube 390MM

420460042

$8.09

Clamp

420851508

$12.15

Oil Line 310MM

420201551

$7.09

Protector Tube

420460047

$12.15

Clamp

420853653

$7.01

Engine

420084914

$3,159.99
