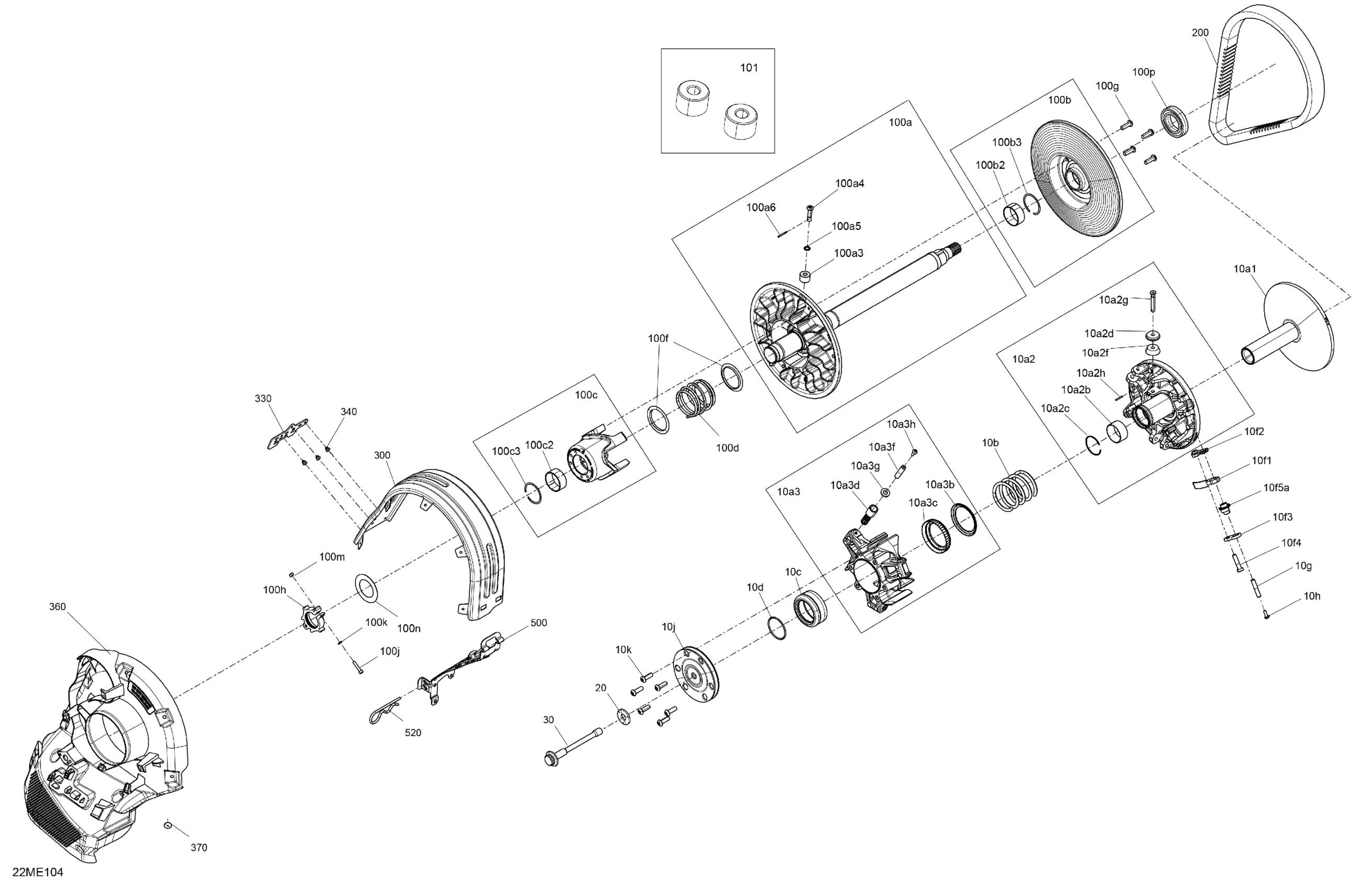

Ski-Doo EXPEDITION - 600R E -TEC - LE - ABSB - Deep Black - 154X20X1.5CST Track - 2025 Drive - Pulley Diagram

#

Description
Price

10a1

Fixed Flange Ass'y

417224333

$170.12

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224811

$313.40

10a2b

Bushing

293250389

$19.37

10a2c

Circlip

293370137

$3.12

10a2d

Back Torque Roller

417224153

$15.64

10a2f

Torque Roller

417224154

$24.60

10a2g

Pin

417224510

$8.94

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$1.01

10a3

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$170.12

10a3b

Stopper Spring

417224910

$9.58

10a3c

Spring Guide

417224614

$9.43

10a3d

Roller Pulley Ass'y

417224947

$34.30

10a3f

Axle - 10mm

417224204

$9.43

10a3g

Thrust Washer

417224868

$2.16

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10b

Clutch Spring

417224172

$27.58

10c

Seat Spring

417224003

$9.87

10d

Circlip

293370116

$3.12

10f1

Ramp 971

417224266

$28.33

10f2

RH Lever

417224086

$8.42

10f3

LH Lever

417224114

$5.21

10f4

Pivot 26mm

417224220

$5.24

10f5a

Molded Cam

417224113

$8.37

10g

Pin Ramp

417224694

$9.43

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10j

VIbration Damper

417224682

$116.39

10k

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

20

Conical Spring Washer M14

250200144

$4.16

30

Pulley Drive Bolt M14 X 144

417300522

Unavailable

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127738

$411.16

100a3

Pulley Roller

417127016

$22.36

100a4

Pivot Stud

417127294

$13.18

100a5

Lock Washer 8 mm

250200009

$2.00

100a6

Spring Pin

250400070

$1.91

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$143.25

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100b3

Circlip

293370049

$4.57

100c

Cam Ass'y | Includes 100c to 100c3

417127672

$160.42

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100c3

Circlip

293370049

$4.57

100d

Black, Return Spring

417127039

$44.00

100f

Swivel Abutment

417127116

$7.82

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

100h

Calibration Ass'y

415129604

$22.49

100j

Socket Screw M5 X 25

250000981

$1.54

100k

Flat Washer M5

234051410

$0.51

100m

Elastic Stop Nut M5

232551414

$0.82

100n

Washer

417127155

$7.79

100p

Ball Bearing

504152574

$33.55

101

QRS XD Roller Kit (2)

861805577

$75.34

200

Drive Belt

417300551

$167.13

300

Belt Guard

417300620

$67.88

330

Front Retaining Hook

417300561

$10.99

340

Avex Rivet

390909200

$0.28

360

CVT Duct Cooling

417300569

$26.09

370

Pop Rivet 3/16"

293150103

$0.52

500

Rear Guard Support

417300623

$11.84

520

Hair Pin

114045200

$10.37
