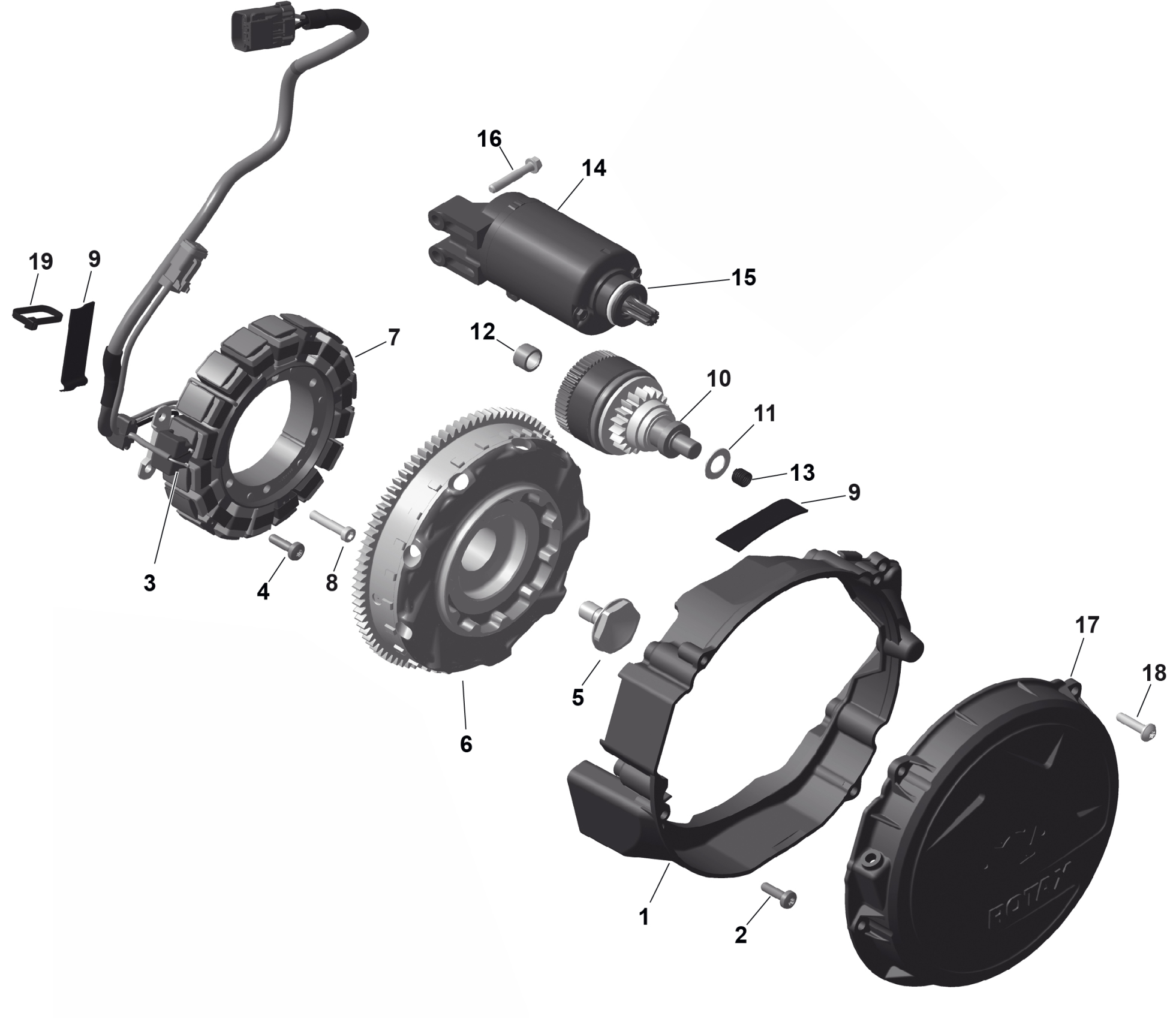

Ski-Doo North America - EXPEDITION - 600R E -TEC - LE - ABSA - Catalyst Gray - 154X24X1.5CST Track - 2025 01- ROTAX - Magneto and Electric Starter Diagram

Ignition Housing

420911854

$24.49

Torx Flange Screw M6 X 20

420441386

$2.11

Pickup Ass'y

420966844

$109.99

Torx Flange Screw M6 X 20

420441386

$2.11

Collar Hex Screw M12 X 25

420840851

$20.99

Magneto Flywheel

420866048

$676.99

Stator Ass'y 55V/1300W

420864427

$478.99

Allen Screw M6 X 30

420540001

$3.29

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

E-Starter Drive Ass'y

420888044

$319.49

Thrust Washer

420827261

$7.51

Needle Bushing

420232482

$20.99

Spring

420938204

$7.65

Electric Starter | Includes no. 14-15

420893820

$319.49

O-Ring

420250141

$19.49

Torx Flange Screw M6 X 35

420440274

$1.01

Starter Housing

420912125

$35.99

Plastite Screw

420940431

$7.65

Locking Tie 175 X 4 MM

420651817

$1.05
