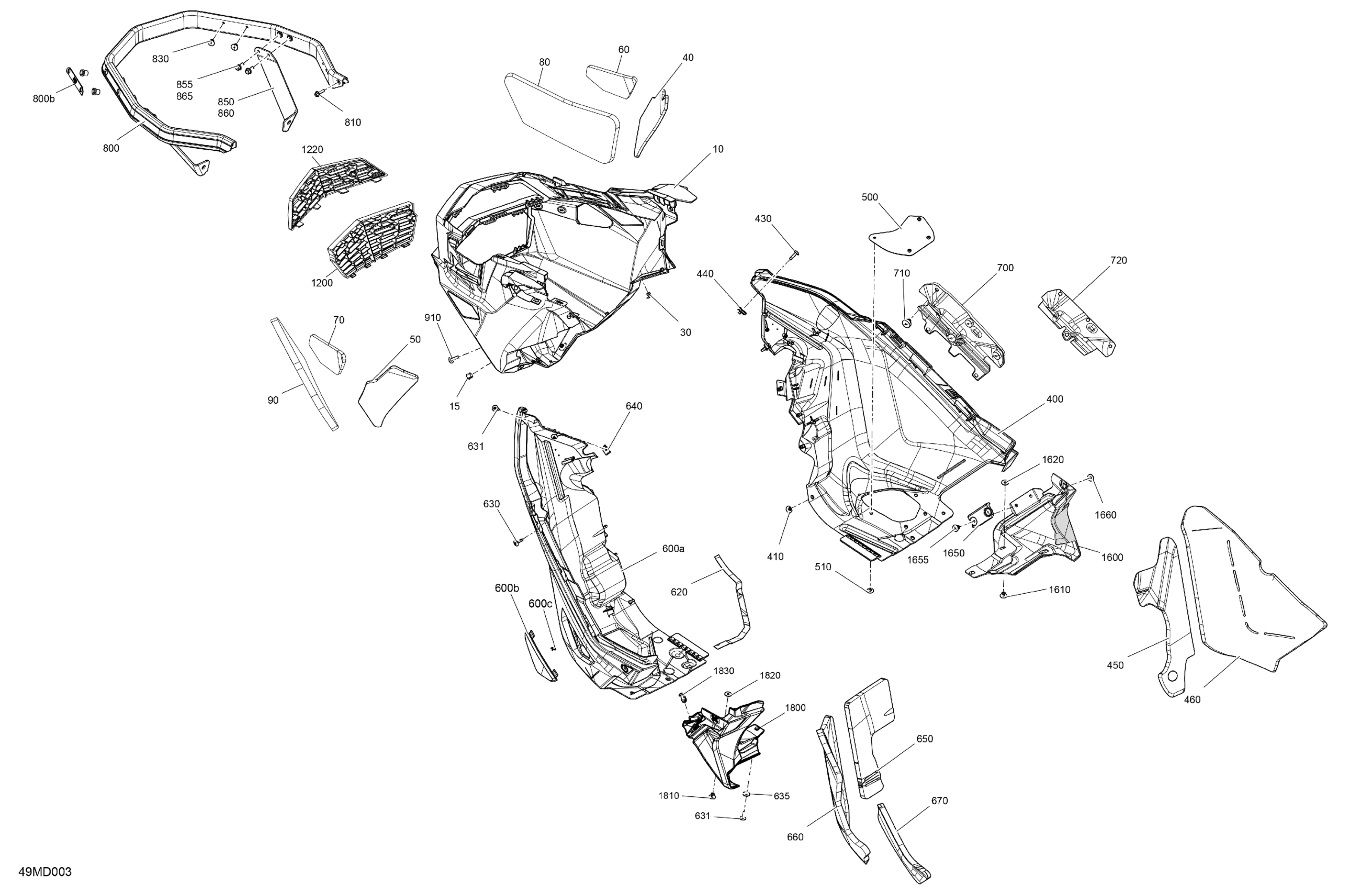

Ski-Doo EXPEDITION 600R E-TEC - LE - ABRA - Deep Black - 154X20X1.5CST Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$171.51

15

Plug

502008550

$2.38

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

40

RH Upper Bottom Pan Foam

502007788

$16.12

50

LH Upper Bottom Pan Foam

502007789

$16.12

60

RH Front Central Bottom Pan Foam

502008308

$7.54

70

LH Front Central Bottom Pan Foam

502008309

$11.91

80

Bonded Foam

502008355

$17.66

90

Bonded Foam

502008356

$6.77

400

Deep Black, RH Bottom Pan

502008663

Unavailable

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

450

RH Front Bottom Pan Foam

502007831

$11.22

460

RH Rear Bottom Pan Foam

502008170

$15.17

500

Plate

502007868

$2.02

510

Pop Rivet 3/16"

293150103

$0.54

600a

Deep Black, LH Bottom Pan

502008512

$94.58

600b

Bottom Pan Door

502007676

$36.89

600c

Hairpin Cotter

269800431

$1.00

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

650

LH Bottom Pan Upper Foam

502007549

$11.91

660

LH Front Bottom Pan Foam

502008334

$10.94

670

LH Rear Bottom Pan Foam

502008173

$2.12

700

Heat Shield

502008087

$6.09

710

Stopper

502008610

$1.94

720

Reflective Sheet

502008156

$4.54

800

Front Bumper | Includes 800 to 800b

502007869

$160.74

800b

Bumper Trim

502007880

$28.43

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

850

RH Bumper Reinforcement

502007762

$11.83

855

Hex. Flange Screw M6 X 16

207661644

$0.61

860

LH Bumper Reinforcement

502007763

$11.83

865

Hex. Flange Screw M6 X 16

207661644

$0.61

910

Torx Screw M6 X 25

250000758

$1.74

1200

Lower Prefilter Grille

502007979

$26.89

1220

Upper Prefilter Grille

502007980

$22.99

1600

Deep Black, RH Bottom Pan Panel

502007716

$49.97

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1620

Washer

517124300

$0.16

1650

Stopper

502007757

$4.34

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1660

Washer

517124300

$0.16

1800

Deep Black, LH Bottom Pan Panel

502007717

$49.97

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1820

Washer

517124300

$0.16

1830

Tuflok Plastic Rivet

293150230

$1.21
