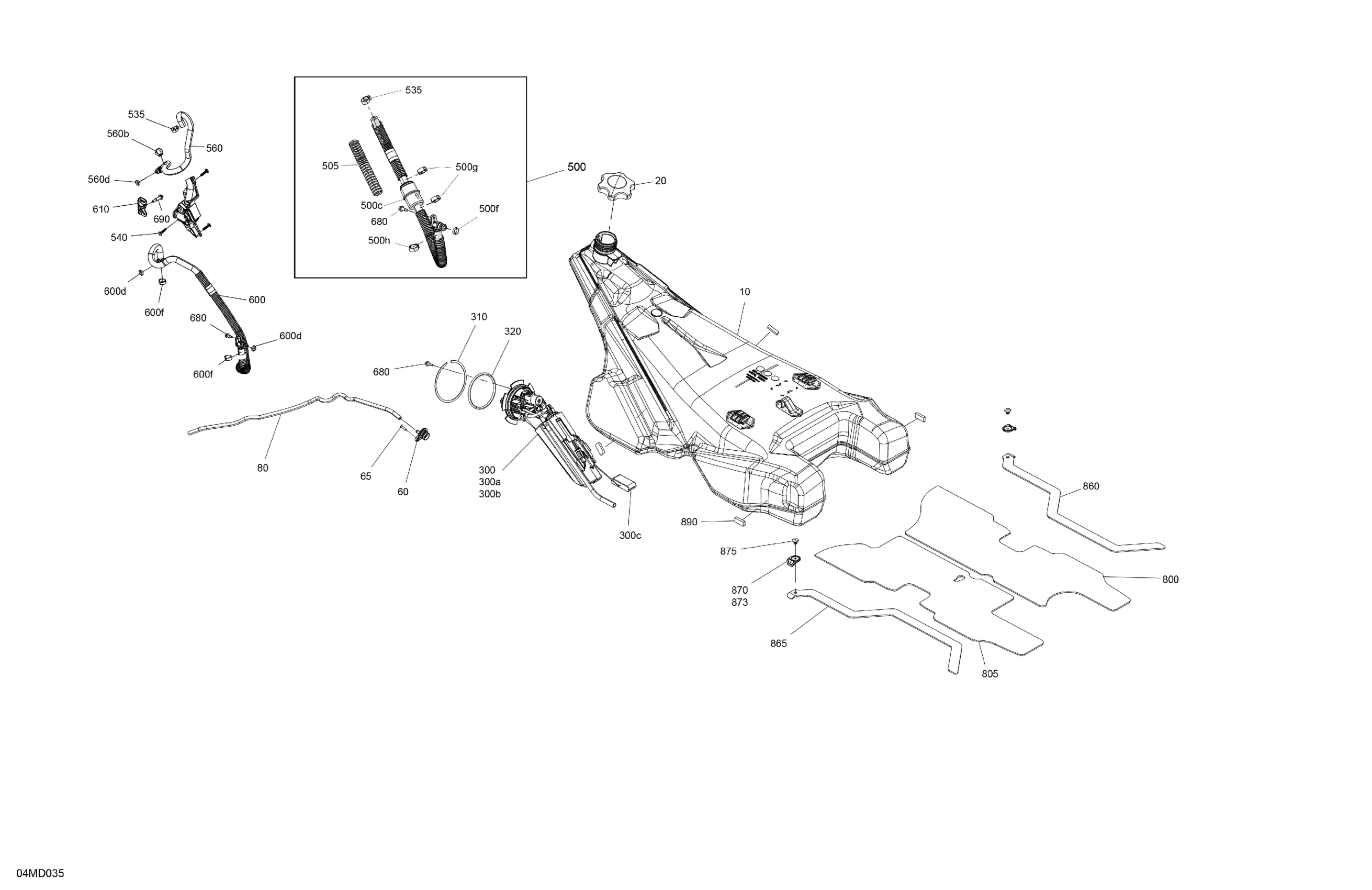

Ski-Doo EXPEDITION 600R E-TEC - LE - ABRA - Deep Black - 154X20X1.5CST Track, 2024 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034141

$295.35

Fuel Tank Cap

513033860

$23.05

Check Valve

513033849

$36.89

Truss Torx Screw K40 X 16

250000918

$2.06

Hose 5.7MM - 630MM

219704539

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$257.66

300a

Canister

415130507

$80.74

300b

Filter

415130508

Unavailable

300c

Fuel Level Sensor

415130727

$136.89

310

Circlip

513034097

$12.83

320

O-Ring

513033862

$17.66

500

Hose Ass'y | Includes 500 to 500h

513034121

$119.97

500c

Fuel Filter

513034047

$23.05

500f

O-Ring

513033668

$9.45

500g

Crimp Clamp, 15.3-706R

293650047

$2.64

500h

Crimp Clamp

293650053

$2.42

505

Tubing 16 Mm 1000Mm Long

219704408

$6.23

535

Crimp Clamp, 15.3-706R

293650047

$2.64

540

Torx Screw Truss Head K50X20 T20

250000760

$1.74

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$55.35

560b

Crimp Clamp

293650053

$2.42

560d

O-Ring

513033668

$9.45

600

Hose Ass'y | Includes 600 to 600f

513034151

$73.82

600d

O-Ring

513033668

$9.45

600f

Crimp Clamp

293650053

$2.42

610

Bracket

513033903

$1.26

680

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Socket Head Screw M5 X 28 S.Grip

250001251

$6.18

800

RH Insulated Foam

513034052

$10.77

805

LH Insulated Foam

513034053

$10.77

860

RH Foam

513033981

$4.43

865

LH Foam

513033982

$4.43

870

Retainer Plate

513033917

$0.54

873

Retainer Plate

513033917

$0.54

875

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

890

Tank Guard

513034038

$4.03
