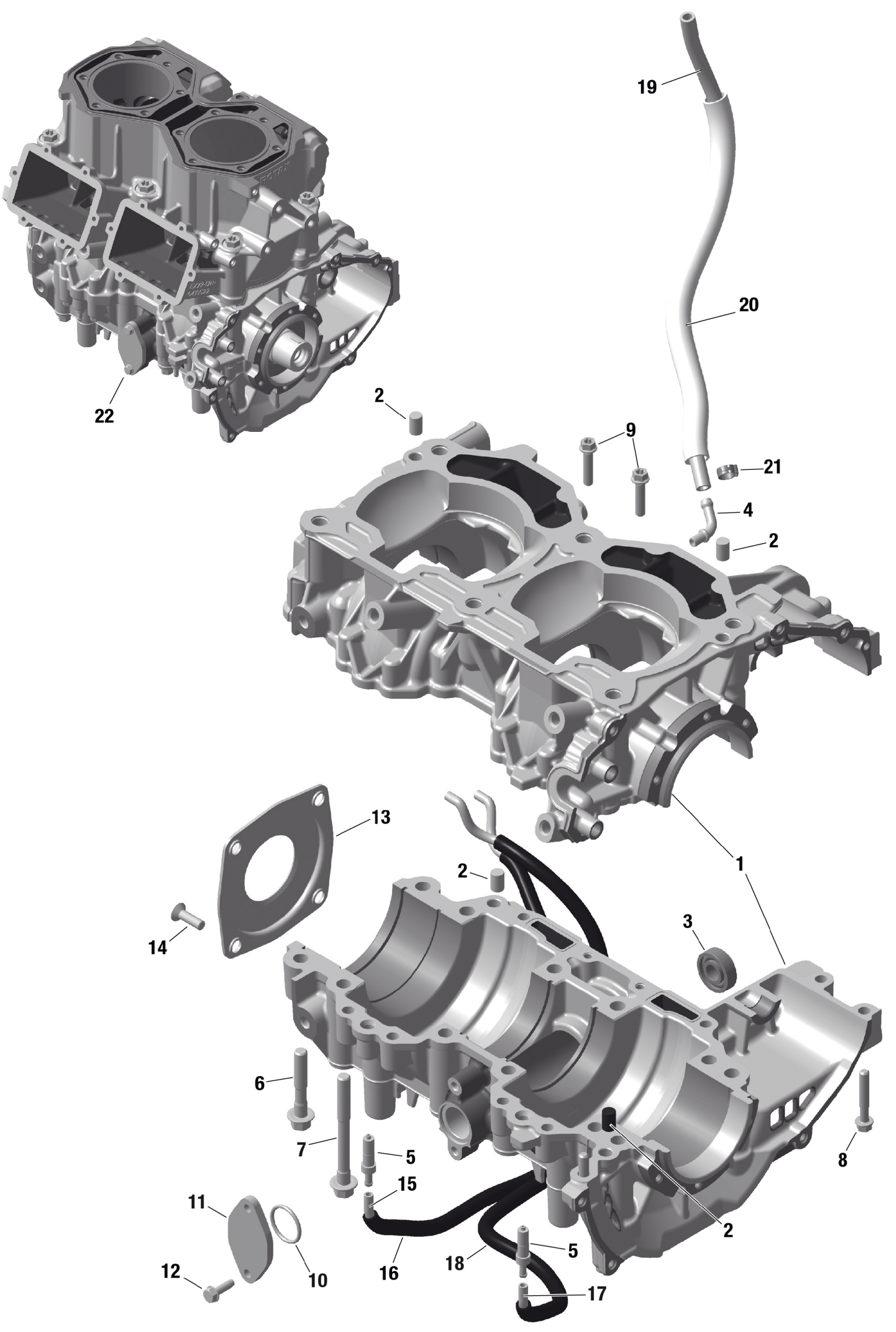

Ski-Doo North America - EXPEDITION 600R E-TEC - LE - ABRA - Deep Black - 154X20X1.5CST Track, 2024 01- ROTAX - Crankcase Diagram

Crankcase Ass'y | Includes no. 1-5

420686901

$1.00

Center Pin 8 X 12

420632010

$4.01

Ball Bearing

420232100

$20.99

Impulse Fitting

420924529

$8.57

Check Valve

420956071

$24.99

Hex. Collar Screw M8 x 45

420640432

$8.57

Collar Hex Screw M8 X 75

420640833

$2.00

Torx Flange Screw M6 X 35

420440274

$1.01

Torx Flange Screw M6 X 25

420440234

$3.06

O-Ring

420430373

$3.17

Cover Plate

420810827

$14.83

Taptite Screw M5 X 16

420941926

$0.47

Oil Seal Cover

420812422

$14.83

Screw M6 X 20

420941436

$3.17

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

Tube 390MM

420460042

$8.57

Oil Line 585 mm This part replaces 420201921.

420201928

$5.39

Tube 465MM

420460058

$8.57

Oil Line 310MM

420201551

$7.51

Protector Tube

420460047

$14.22

Clamp

420853653

$7.41

Short Block

420059824

$2.00
