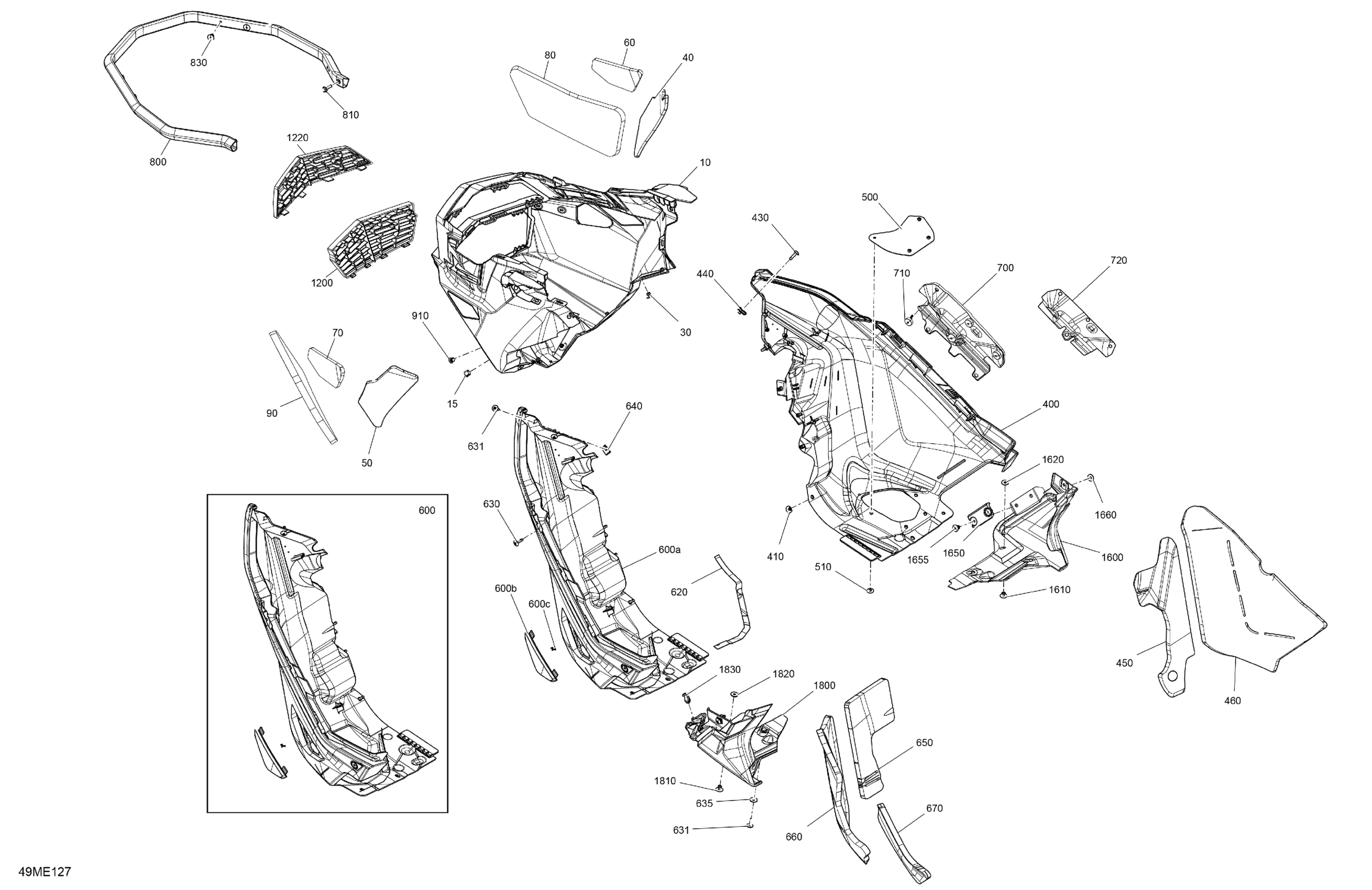

Ski-Doo EXPEDITION - 600 EFI - SPORT - KASA - Neo Yellow - 154X16X1.5CH Track - 2025 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$171.51

15

Plug

502008550

$2.38

30

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

40

RH Upper Bottom Pan Foam

502007788

$16.12

50

LH Upper Bottom Pan Foam

502007789

$16.12

60

RH Front Central Bottom Pan Foam

502008308

$7.54

70

LH Front Central Bottom Pan Foam

502008309

$11.91

80

Bonded Foam

502008355

$17.66

90

Bonded Foam

502008356

$6.77

400

Deep Black, RH Bottom Pan

502008663

Unavailable

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

450

RH Front Bottom Pan Foam

502007831

$11.22

460

RH Rear Bottom Pan Foam

502008170

$15.17

500

Plate

502007868

$2.02

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$129.20

600a

Deep Black, LH Bottom Pan

502008512

$94.58

600b

Bottom Pan Door

502007676

$36.89

600c

Hairpin Cotter

269800431

$1.00

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

650

LH Bottom Pan Upper Foam

502007549

$11.91

660

LH Front Bottom Pan Foam

502008334

$10.94

670

LH Rear Bottom Pan Foam

502008173

$2.12

700

Heat Shield

502008087

$6.09

710

Stopper

502008752

$1.94

720

Reflective Sheet

502008156

$4.54

800

Front Bumper

502007754

$167.66

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

910

Panel Fastener

518321954

$6.03

1200

Lower Prefilter Grille

502007979

$26.89

1220

Upper Prefilter Grille

502007980

$22.99

1600

RH Bottom Pan Panel

502007871

$55.35

1610

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1620

Washer

517124300

$0.16

1650

Stopper

502007757

$4.34

1655

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1660

Washer

517124300

$0.16

1800

LH Panel

502007872

$55.35

1810

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1820

Washer

517124300

$0.16

1830

Tuflok Plastic Rivet

293150230

$1.21
