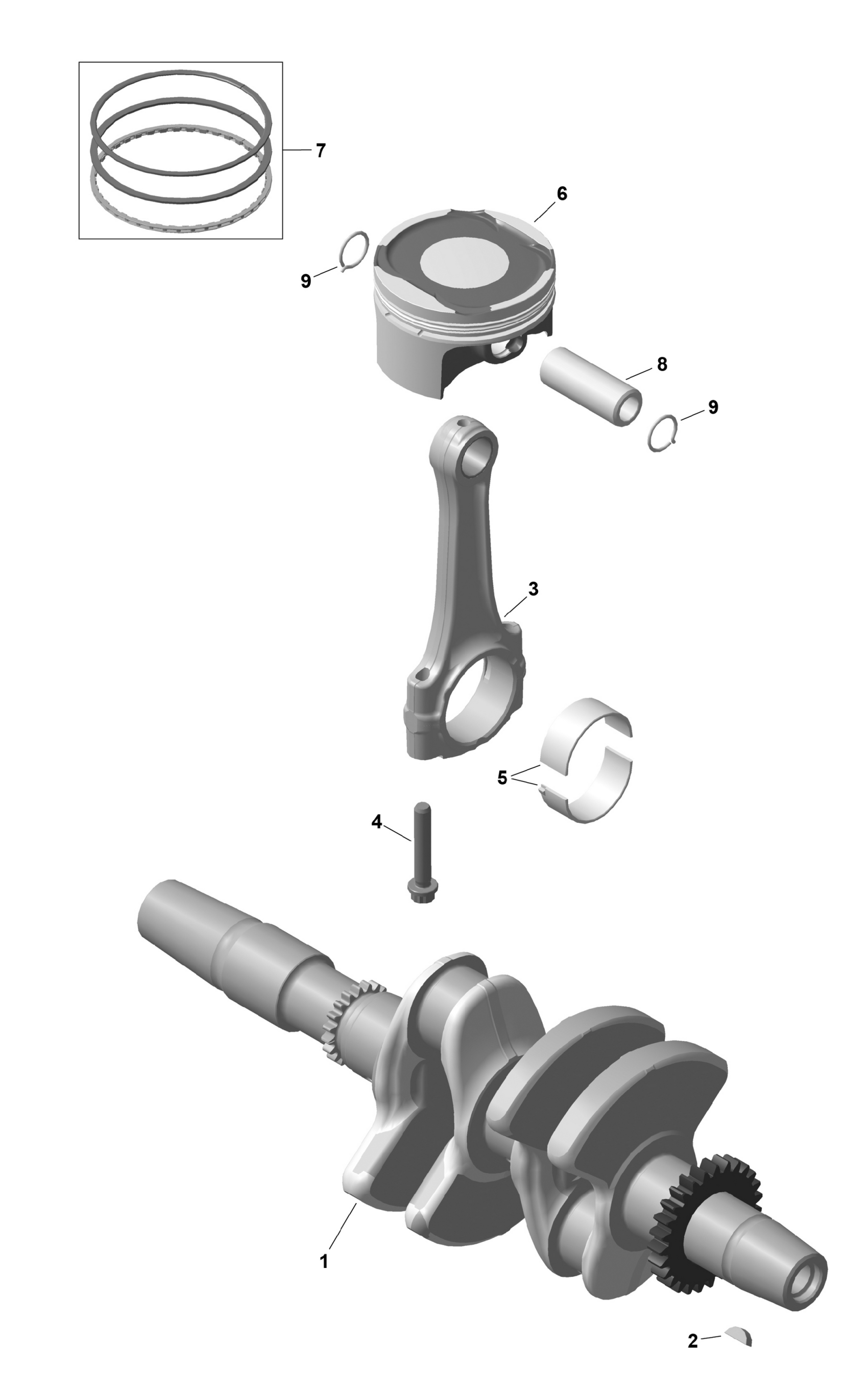

Ski-Doo EXPEDITION - 600 ACE - SPORT - KCSA - Neo Yellow - 154X16X1.5CH Track - 2025 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes no. 1-2

420819765

$869.99

2

Woodruff Key 4 X 5

420246570

$3.19

3

Connecting Rod Ass'y | Includes no. 3-4

420917711

$249.99

4

Connecting rod Screw M7 X 1

420641794

$14.90

5

Plain Bearing

420933191

$10.96

6

Piston Ass'y, 73.958 mm

420892821

$185.24

7

Piston Ring Set

420892824

$56.99

8

Piston Pin

420916510

$24.46

9

Piston Circlip

420845810

$4.97
