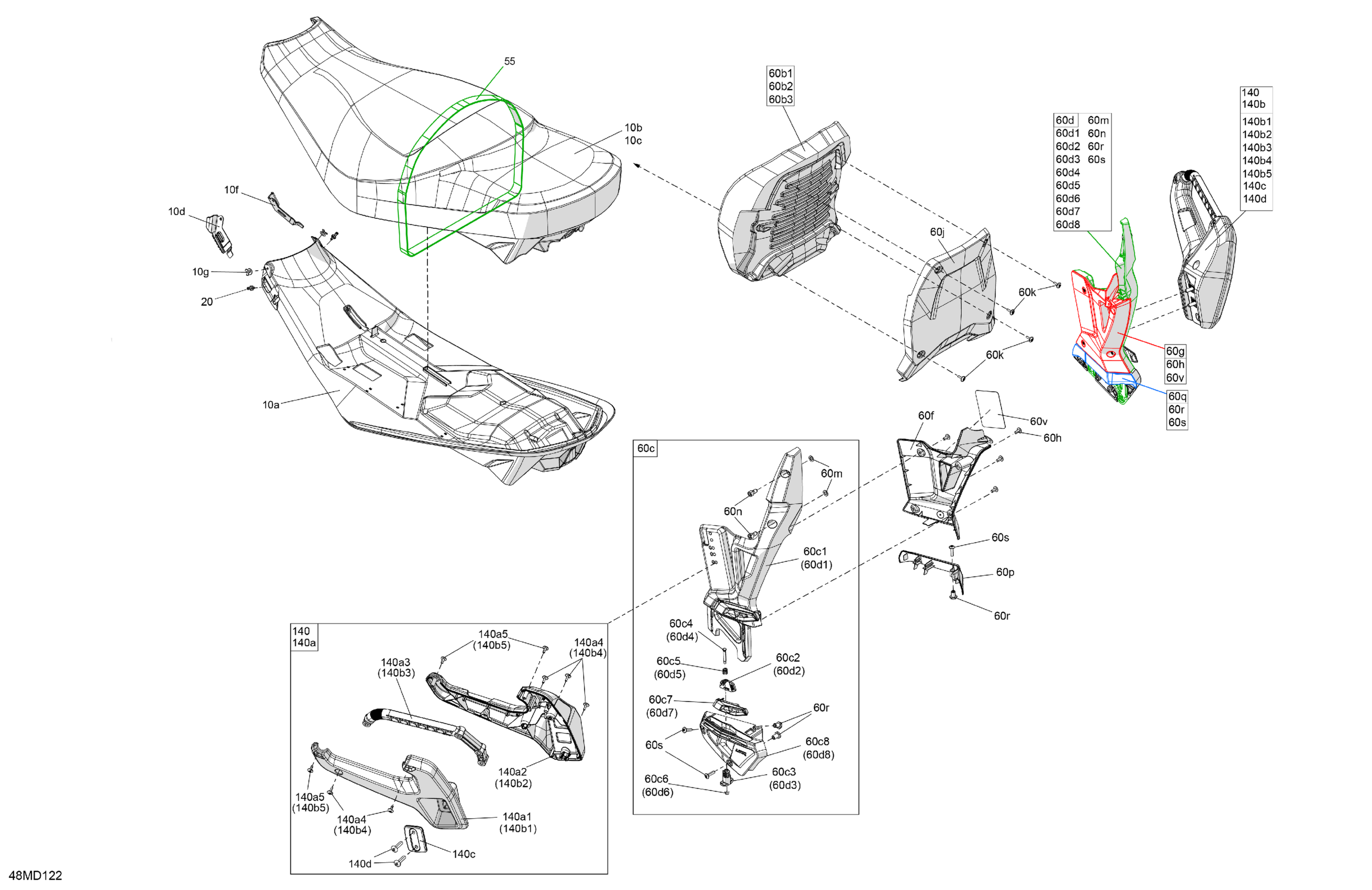

Ski-Doo EXPEDITION 600 ACE - SPORT - KCRA - Neo Yellow - 154X16X1.5CH Track, 2024 Body - Seat Diagram

#

Description
Price

10a

1+1 Seat Base

510006556

$93.99

10b

Seat Foam

510006336

$214.99

10c

Seat Cover

510007547

$241.49

10d

LH Seat Latch

510006530

$7.19

10f

RH Seat Latch

510006531

$7.19

10g

Pop Rivet 3/16"

293150222

$1.29

20

Seat Pin

510007411

$6.95

55

1+1 Seat Strap

510006159

$41.49

60b1

Backrest Foam

510006363

$219.99

60b2

Backrest Cover

510007550

$236.49

60b3

Backrest Support

510006777

$48.99

60c

LH Backrest Support Ass'y | Includes 60c to 60c8

510007208

$249.99

60c1

LH Backrest Support

510007210

$54.99

60c2

LH Lever | Package Hunter

708200373

$4.02

60c3

LH Latch | Package Hunter

708200266

$3.01

60c4

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

60c5

Spring | Package Hunter

708200263

Unavailable

60c6

Elastic Flange Nut M5

233251494

$2.11

60c7

LH Cap

510005617

$15.89

60c8

LH Base

510006939

$26.49

60d

RH Backrest Support Ass'y | Includes 60d to 60d8

510007209

$249.99

60d1

RH Backrest Support

510007212

$54.99

60d2

RH Lever

708200374

$4.02

60d3

RH Latch | Package Hunter

708200267

$3.01

60d4

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

60d5

Spring | Package Hunter

708200263

Unavailable

60d6

Elastic Flange Nut M5

233251494

$2.11

60d7

RH Cap

510005618

$15.89

60d8

RH Base

510006940

$26.49

60f

LH Trim

510006704

$20.99

60g

RH Trim

510006705

$20.99

60h

Torx Truss M6X14

250000789

$5.39

60j

Backrest Trim

510006366

$81.99

60k

Screw M4 X 16

250000889

$3.09

60m

Flat Washer M8, Stainless

234080600

$1.48

60n

Screw-Socket HD.DIN.912

205081654

$1.90

60p

LH Base Cover

510006169

$3.91

60q

RH Base Cover

510006170

$3.91

60r

Threaded Insert

511000822

$2.09

60s

Torx-Truss M/S M6 X 25

250001000

$5.29

60t

Dart

293730062

$2.09

60u

Dart | Not Shown

293730039

$1.99

60v

1+1 Decal

516005612

Unavailable

140

Passanger Hand Hold Kit | Includes 140 to 140d

510006510

$195.99

140a

LH Passenger Hand Hold Ass'y | Includes 140a to 140a5

510006515

$185.49

140a1

LH Ext. Passenger Hand Hold

510006492

$67.99

140a2

LH Int. Passenger Hand Hold

510006517

$67.99

140a3

Passenger Overmolded Handhold

510006551

$67.99

140a4

Screw M4 X 16

250000889

$3.09

140a5

Torx-Truss M/S M5 X 14

250000941

$2.11

140b

RH Passenger Hand Hold Ass'y | Includes 140b to 140b5

510006516

$185.49

140b1

RH Ext. Passenger Hand Hold

510006486

$67.99

140b2

RH Int. Passenger Hand Hold

510006487

$67.99

140b3

Passenger Overmolded Handhold

510006551

$67.99

140b4

Screw M4 X 16

250000889

$3.09

140b5

Torx-Truss M/S M5 X 14

250000941

$2.11

140c

Passenger Handle Trim

510006602

$13.99

140d

Torx Truss M/S M8 x 35

250000753

$1.15
