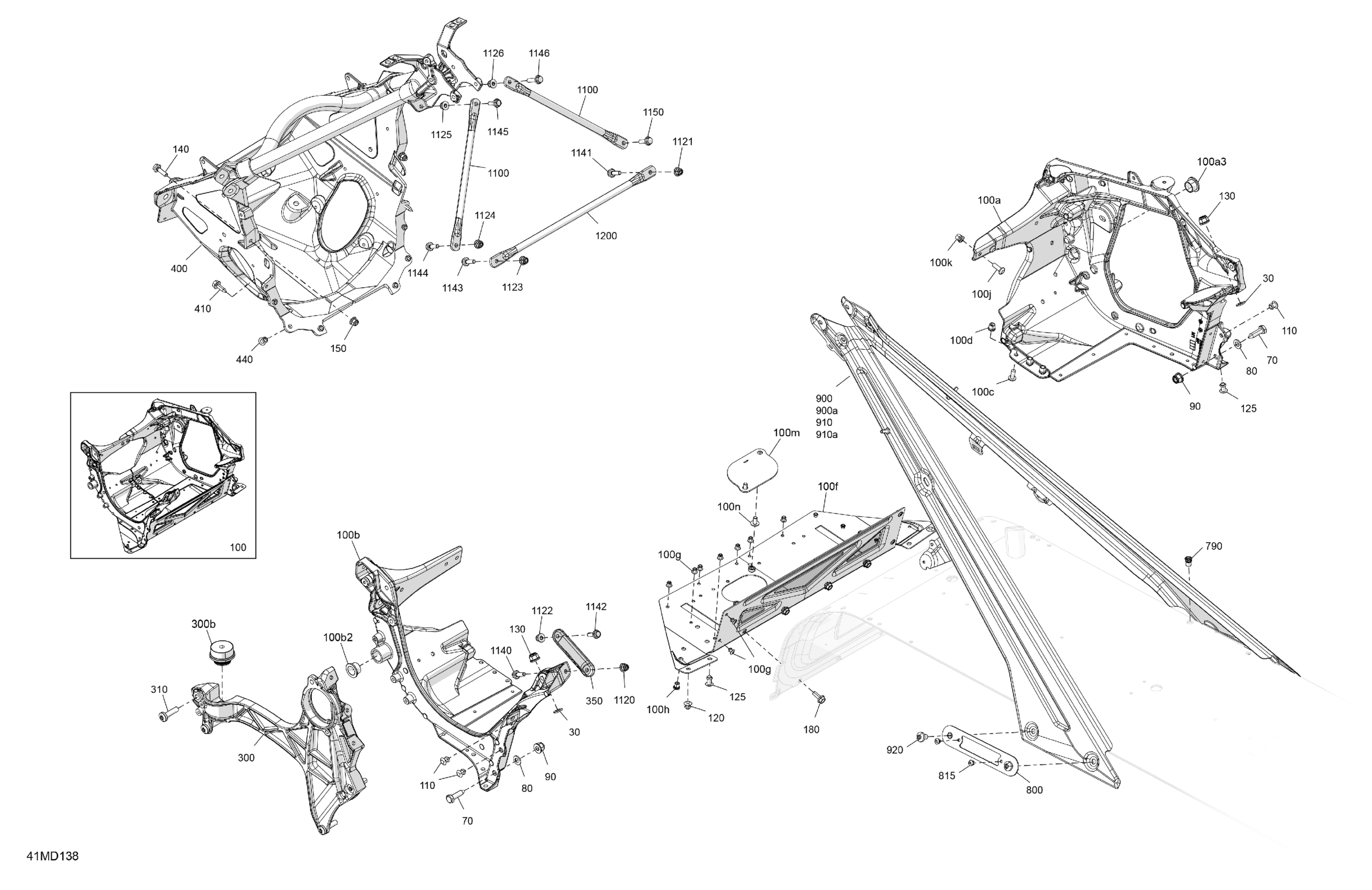

Ski-Doo EXPEDITION 600 ACE - SPORT - KCRA - Neo Yellow - 154X16X1.5CH Track, 2024 Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.79

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518334517

$382.81

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$181.31

100a3

Leg Bushing

505072690

$5.75

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

100b2

Leg Bushing

505072690

$5.75

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

100d

Collar Huck Magna-Grip 6.4

293150149

$0.36

100f

Bottom Plate

518332715

$33.55

100g

Rivet Avibulb 3/16

293150203

$0.28

100h

Insert M5 X 0.8

293450268

$1.90

100j

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

100k

Collar Huck Magna-Grip 6.4

293150149

$0.36

100m

Oil Plate

518329454

$14.88

100n

Torx Truss Screw M6 X 12

250000767

$1.91

110

Rivet Ornit 6,5 X 16.5

293150267

$1.88

120

Rivet Ornit 6,5 X 12.5

293150265

$1.88

125

Rivet Ornit 6,5 X 18.5

293150268

$1.88

130

Hex. Flange Elastic Nut M8

233281414

$1.31

140

Hex. Flange Screw M6 X 20

207662046

$2.00

150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

180

Hex. Flange Screw M6 X 16

207661646

$1.15

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$176.09

300b

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.40

400

Chassis Suspension Module

518334461

$633.55

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

440

Rivet Ornit 6,5 X 16.5

293150267

$1.88

790

Insert

293450278

$3.97

800

Member Fixation Plate

518329480

$9.73

815

Avibulb Rivet 4.8 X 12.1

293150237

$0.28

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

900a

LH Rear Diagonal Cross Member

518333356

$105.19

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$105.19

910a

RH Rear Diagonal Cross Member

518332559

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329370

$20.12

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1121

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1122

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1123

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1124

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1140

Hex. Flange Screw M6 X 20

207662046

$2.00

1141

Hex. Flange Screw M6 X 20

207662046

$2.00

1142

Hex. Flange Screw M6 X 20

207662046

$2.00

1143

Hex. Flange Screw M6 X 20

207662046

$2.00

1144

Hex. Flange Screw M6 X 20

207662046

$2.00

1145

Hex. Flange Screw M6 X 20

207662046

$2.00

1146

Hex. Flange Screw M6 X 25

207662556

$4.15

1150

Hex. Flange Screw M6 X 20

207562056

$2.00

1200

Center Column Support

518329755

$3.36
