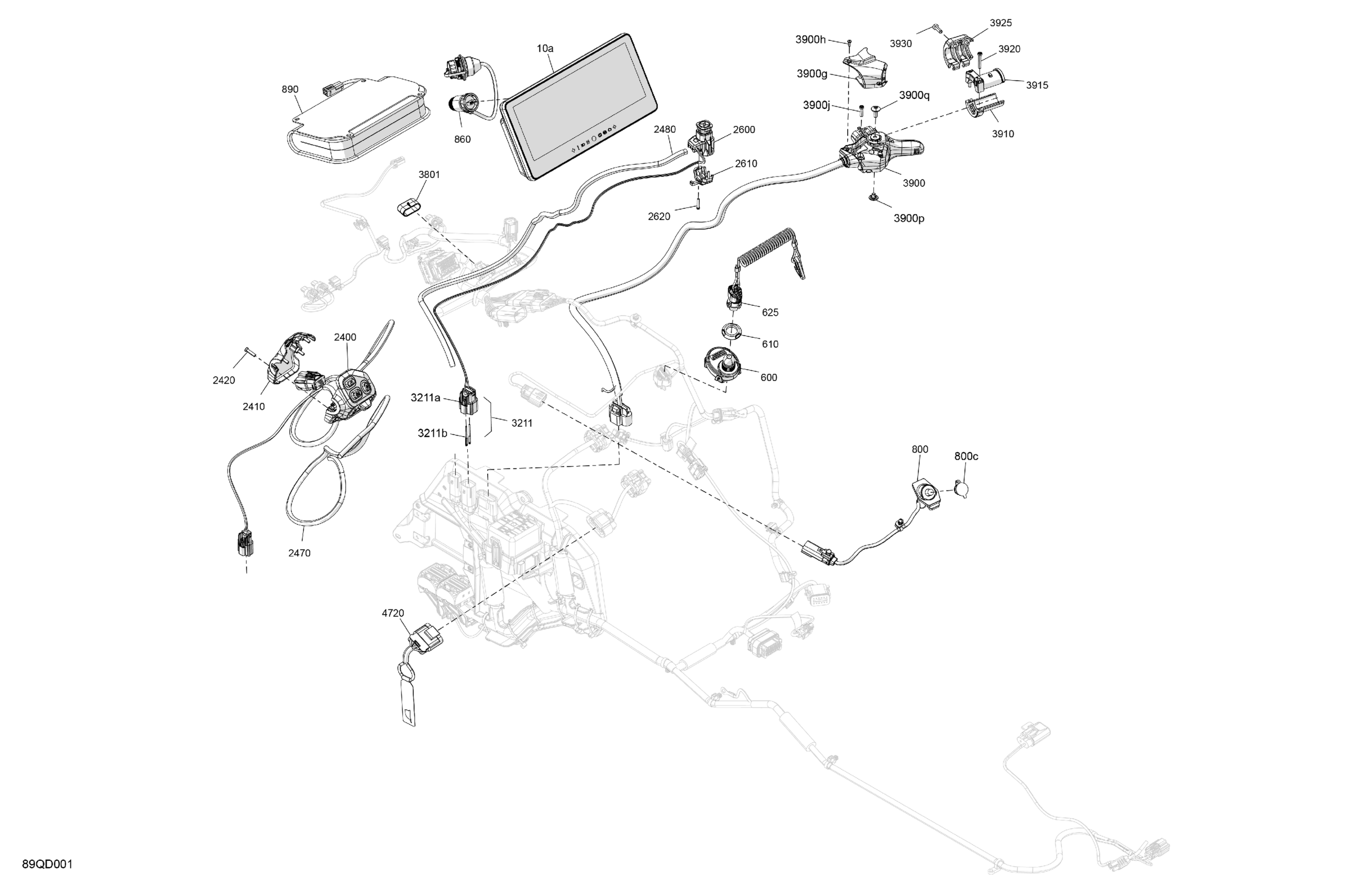

Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710009417

$2,012.66

600

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

610

Specialized Nut

278004274

$3.12

625

Green, Ski-Doo Key Dess

515179474

$62.66

800

Heated Visor Wiring Harness Ass'y | Includes 800 to 800c

515179484

$24.60

800c

Cap

572103300

$9.36

860

USB Wiring Harness Ass'y

515179248

$72.36

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$108.93

2400

LH Front Multifunction Switch

515179436

$260.42

2410

Rear Housing

415130659

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515179472

$74.60

2610

Clamp

515179182

$8.34

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.10

3211

Connector Plug | Includes 3210 to 3210b

515179276

$13.18

3211a

Connector Molex Female 8 Cavities

515179228

$45.49

3211b

Sealing Cap

278002860

$1.63

3801

Plug

515179300

$8.31

3900

Throttle Housing Ass'y | Includes 3800 to 3800q

512061605

$270.12

3900g

Cap

512060862

$11.22

3900h

Torx Screw M2.9 x 9.5

250000623

$3.01

3900j

Torx Screw

250000671

$0.96

3900p

Screw

512060961

$10.21

3900q

Torx Truss Head Screw W Nylon M5X14

250001059

$2.00

3910

Lower Handle Support

512061550

$8.40

3915

Upper Handle Support

512061551

$8.40

3920

Torx Screw #8-18

250000263

$0.99

3925

Front Housing

512060987

$8.09

3930

Torx Screw M5 X 14

250000632

$7.09

4720

Emergency Response Wiring Harness | Includes 30a to 30a1

515179565

$50.72
