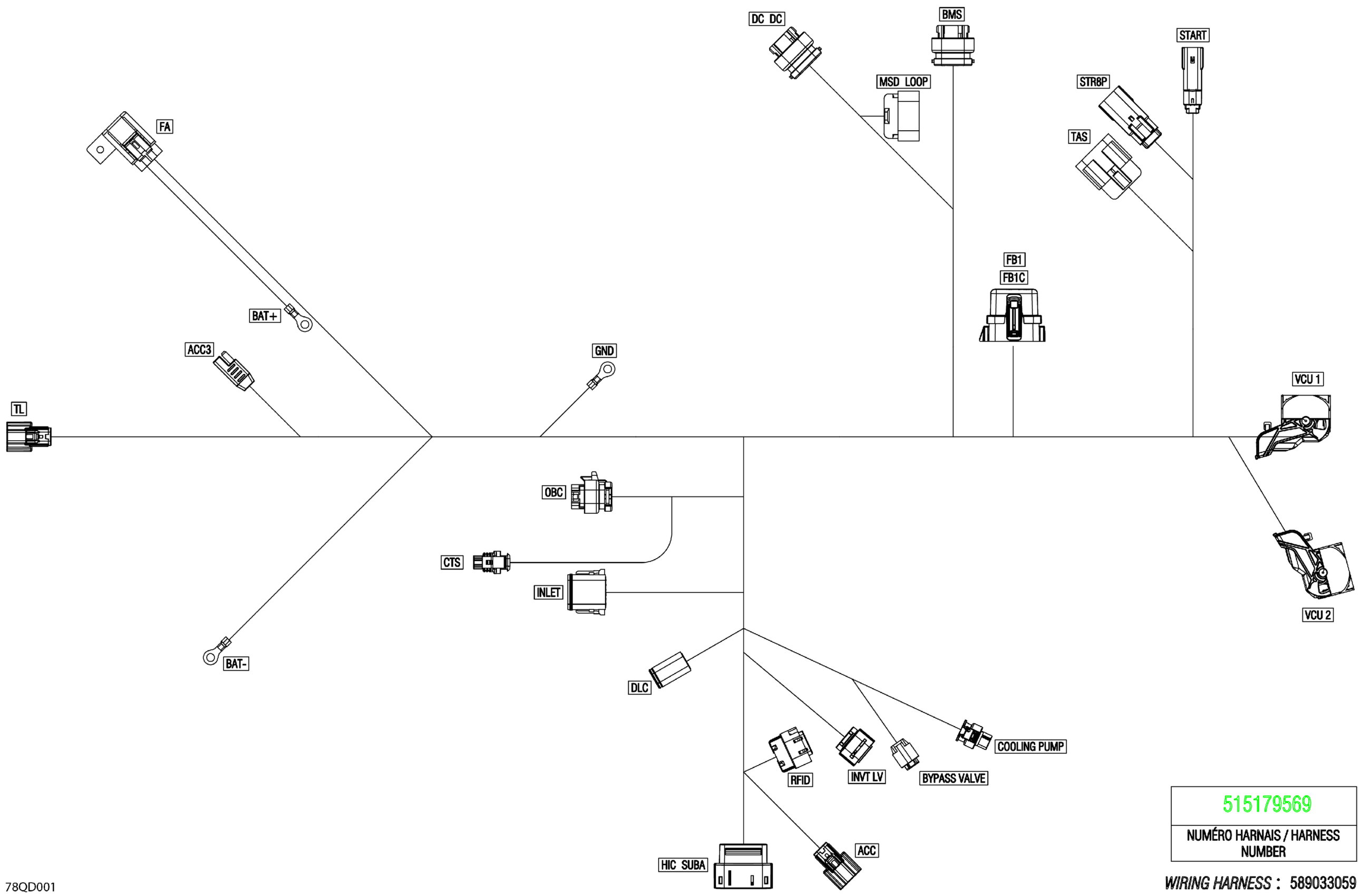

Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 Electric - Main Harness - 515179569 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179569

$529.99

3000a

Electronic Component Support | Not Shown

512061552

$14.83

ACC

Housing

515178954

$35.99

ACC

Female Terminal

515178018

$1.19

ACC3

Accessories Wiring Harness

515178442

$114.99

BAT(-)

Open Barrel Terminal

278001392

$4.79

BAT(+)

Open Barrel Terminal

278001392

$4.79

BMS

Connector

710008506

$24.49

BYPASS VALVE

Housing

710003729

$22.49

BYPASS VALVE

Wire Seal

710001118

$1.16

BYPASS VALVE

Female Terminal

710003862

$2.43

COOLING PUMP

Connector Tyco Female 3 Cavities

710008885

$17.59

COOLING PUMP

Wire Seal

710001118

$1.16

CTS

Male Housing, 2 Circuits

278001005

$19.49

CTS

Seal

415128501

$1.89

CTS

Female Terminal

278000998

$4.39

DC DC

Connector Amp/Tyco 14 Pos

710005825

$24.49

DC DC

Terminal

710008507

$24.49

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DLC

Terminal

278003855

$13.49

F1

Little Fuse, 5 Amperes

710000742

$8.79

F10

Little Fuse, 15 Ampere

710000745

$8.49

F2

Little Fuse, 15 Ampere

710000745

$8.49

F3

Little Fuse, 10 Amperes

710000744

$8.79

F4

Little Fuse, 10 Amperes

710000744

$8.79

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 20 Amperes

710000746

$8.49

FA

Fuse Holder Cap

278001326

$7.69

FA

Cushion

278000805

$3.28

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FB1

Fuse Base Ass'y

278003448

$31.99

FB1

Seal Plug

278002880

$7.86

FB1

Wire Seal

278000218

$4.39

FB1

Wire Seal

278001065

$7.69

FB1

Female Terminal

710000890

$4.55

FB1

Female Terminal

710000918

$7.69

FB1

Female Terminal

278002578

$1.04

FB1C

Fuse Box Cover

515179503

$4.44

FB1C

Little Fuse, 10 Amperes

710000744

$8.79

FB1C

Little Fuse, 15 Ampere

710000745

$8.49

FB1C

Little Fuse, 20 Amperes

710000746

$8.49

GND

Open Barrel Terminal

278001392

$4.79

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$16.49

HIC SUBA

Sealing Cap

278002860

$1.79

HIC SUBA

Female Terminal

515178018

$1.19

HIC SUBA

Female Terminal

515178014

$2.39

INLET

Connector Deutsch Female 12 Cavities

278004291

$51.99

INLET

Female Lock, 12 Circuits

409015700

$4.55

INVT LV

Female Terminal

278001665

$4.55

INVT LV

Connector

515179576

$24.49

INVT LV

Connector Plug

710009684

$7.69

MSD LOOP

Female Terminal

710009683

$15.36

MSD LOOP

Housing

515177151

$5.66

MSD LOOP

Lock

710001222

$2.09

MSD LOOP

Seal

710001233

$3.19

MSD LOOP

Seal Wire

710001332

$3.28

MSD LOOP

Terminal

710001228

$3.28

OBC

Terminal

710001229

$3.19

OBC

Connector

710008500

$35.99

RFID

Female Delphi Connector 5 Cavities

710007151

$17.04

RFID

Seal Wire

710001153

$2.21

RY1

Female Terminal

710001164

$8.89

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

START

Relay

715900824

$21.99

START

Housing

515178023

$14.74

STR8P

Male Terminal

515178013

$3.19

STR8P

Molex Male Connector 8 Cavities

515178907

$11.12

STR8P

Male Terminal

515178013

$3.19

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Housing

515178954

$35.99

TL

Female Terminal

515178018

$1.19

VCU 1

Cover

515178601

$18.49

VCU 1

Housing 56 Circuits

515178595

$29.49

VCU 1

Plate

515178604

$4.59

VCU 1

Plug

515178599

$3.17

VCU 1

Plug

515178600

$3.17

VCU 1

Plate

515178603

$4.59

VCU 1

Terminal

515178598

$3.61

VCU 1

Terminal

515178596

$3.72

VCU2

Cover

515178602

$5.37

VCU2

Housing 56 Circuits

515178617

$24.99

VCU2

Plate

515178604

$4.59

VCU2

Plug

515178599

$3.17

VCU2

Plug

515178600

$3.17

VCU2

Plate

515178603

$4.59

VCU2

Terminal

515178596

$3.72
